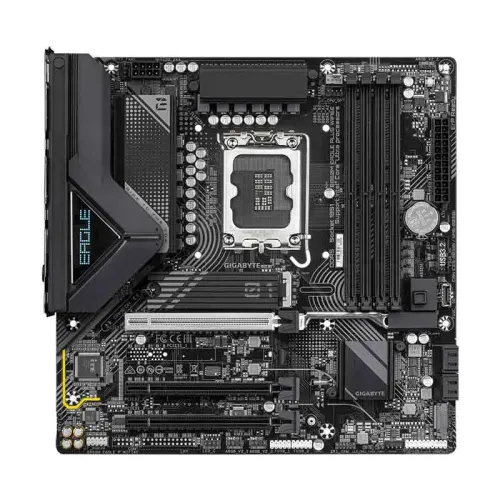

Gigabyte B860M EAGLE PLUS (1.0) (Wi-Fi 6E) DDR5 Intel Core Ultra Motherboard

That is a solid mid-range choice for a modern desktop build. The Gigabyte B860M EAGLE PLUS (Rev 1.0) is tailored for Intel's LGA1851 socket, meaning it is built specifically to support Intel Core Ultra processors (Series 2).

Because it targets builders looking for modern speeds without paying the premium for high-end overclocking Z890 boards, it strikes a very practical balance between next-gen tech and standard everyday utility.

Core Specifications Breakdown

• Form Factor: Micro-ATX (24.4cm x 24.4cm) — ideal for compact or mid-tower setups.

• Memory Support: 4x DDR5 DIMM slots supporting up to 256GB. It utilizes Gigabyte's D5 Bionic Corsa (AI-enhanced routing) to push overclocked memory speeds up to a massive 9066 MT/s (O.C.), alongside standard XMP 3.0 profile support.

• Expansion Slots:

  • 1 x PCIe 5.0 x16 slot (shielded with ultra-durable stainless steel to handle heavy modern GPUs without bending).

  • 2 x PCIe 4.0 x1 slots for extra expansion cards.

• Storage Capabilities:

  • 2 x M.2 slots: One ultra-fast PCIe 5.0 x4 slot (comes with a built-in thermal guard heatsink) and one PCIe 4.0 x4 slot.

  • 4 x SATA 6Gb/s ports for traditional hard drives or 2.5-inch SSDs, supporting RAID 0, 1, 5, and 10.

• Networking & Wireless: Equipped with an Intel Wi-Fi 6E AX211 module (delivering the less-congested 6 GHz band) alongside Bluetooth 5.3 and a high-speed Realtek 2.5GbE LAN port for stable wired gaming or NAS data transfers.

• Rear I/O Display Connections: 1 x HDMI 2.1 (supports up to 4K @ 60Hz) and 2 x DisplayPort 2.1 (supports up to 4K @ 144Hz), allowing you to run triple displays off the integrated CPU graphics if you aren't using a dedicated video card.

Things to Keep in Mind

⚠️ USB Port Layout: The physical back panel is a little leaned-down on USB options. It has 1 x high-speed USB 3.2 Gen 2 (Type-A, colored red), 2 x USB 3.2 Gen 1 ports, and 3 x older USB 2.0 ports. If you have a ton of external peripherals, you will likely need to rely on your PC case's front panel ports (the board includes headers for internal Type-C and Type-A lines) or an external USB hub.

????️ No CPU Overclocking: The B860 chipset does not support manual multiplier overclocking for the processor itself. If you plan to heavily manually overclock your CPU clock speeds, you would need to look into a Z890 platform instead.

Overall, if you're putting together a sleek, fast, non-overclocked Intel Core Ultra setup and want high-speed DDR5 paired with Gen 5 storage/graphics support, this board handles the fundamentals incredibly well.
