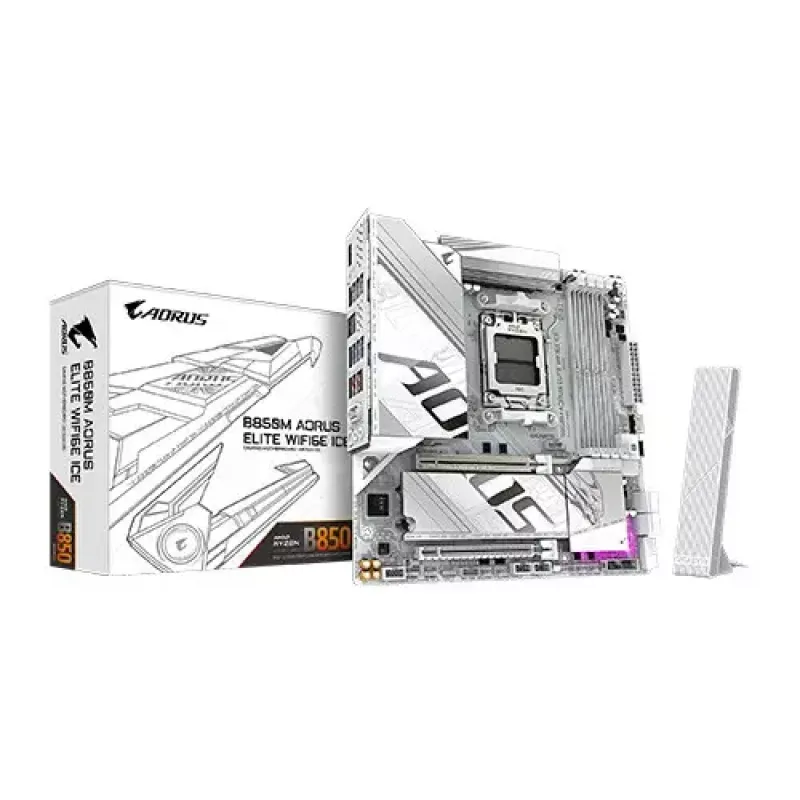

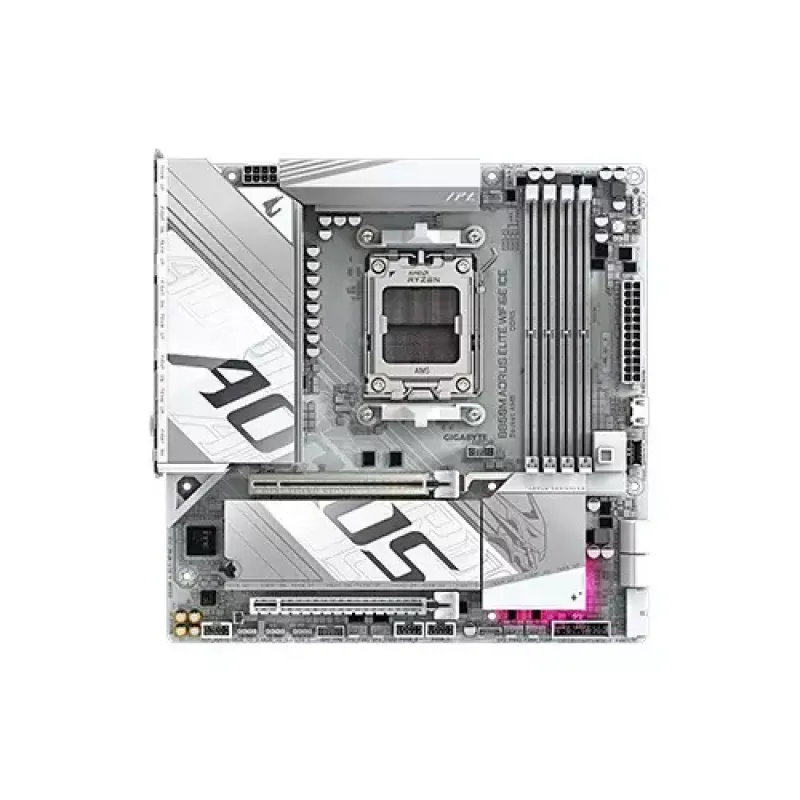

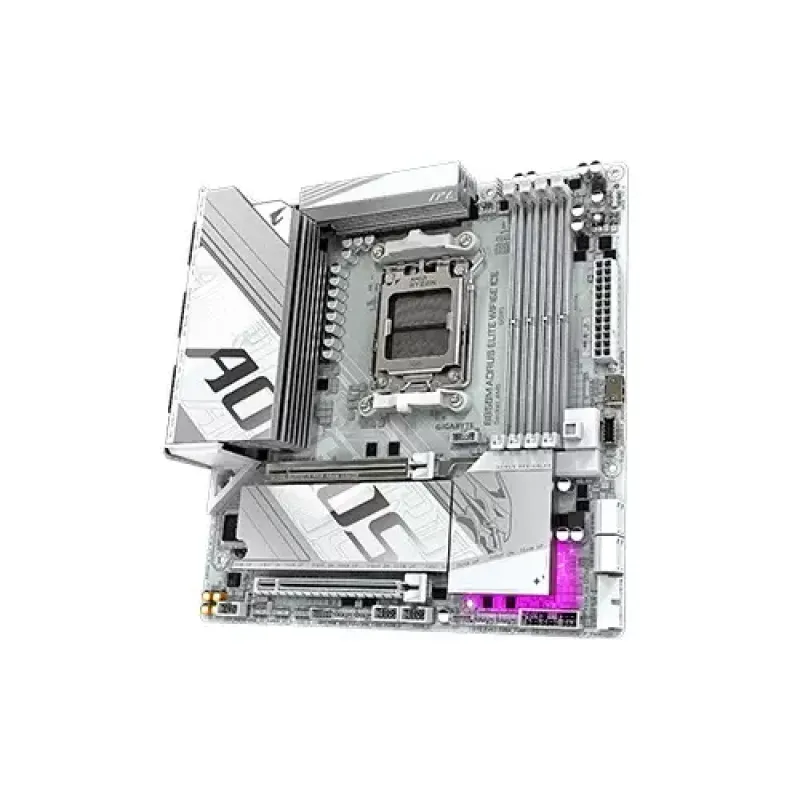

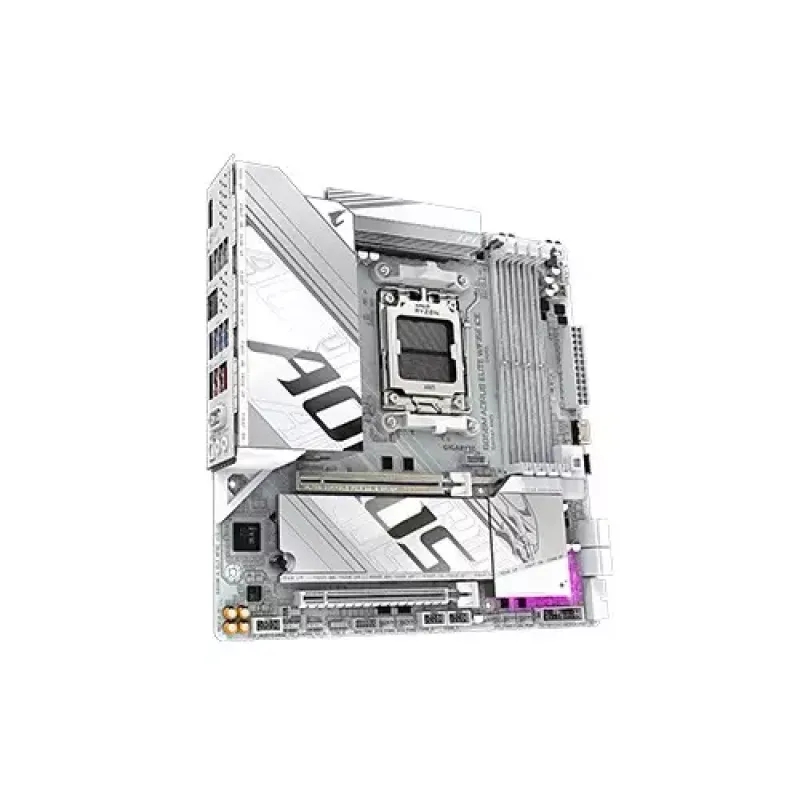

Gigabyte B850M Aorus Elite WF6E ICE Micro ATX AMD Motherboard

Name: Gigabyte B850M Aorus Elite WF6E ICE Micro ATX AMD Motherboard
Brand: Gigabyte
SKU: B850M Aorus Elite WF6E ICE
Price: 32999.00 BDT
Availability: InStock

Price: 32,999৳

Regular Price: 36,000৳

Status: In Stock

Brand: Gigabyte

Key Features

Micro ATX Form Factor; 24.4cm x 24.4cm
I/O Controller: iTE I/O Controller Chip
Realtek 2.5GbE LAN chip
4 x SATA 6Gb/s connectors

View More Info

Payment Options

32,999৳ 36,000৳

Cash Discount Price

Online / Cash Payment

Special Price: 32,999৳

View Banks EMI Plans

Specification

General
Brand	Gigabyte
Model	B850M Aorus Elite WF6E ICE
Graphics
Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.
Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	AMD B850
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
Audio & Microphone
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
External Features
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
I/O Port	1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Network & Connectivity
Bluetooth	v5.3 - Support for 11ax 160MHz wireless standard
WiFi	Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Ports & Connector
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated into the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices

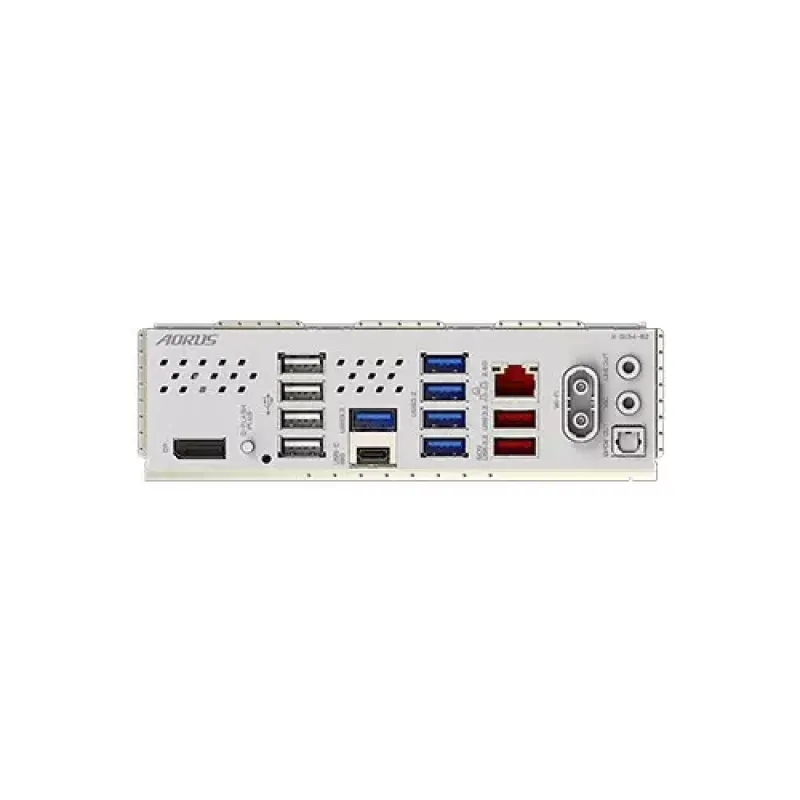

USB (s)	CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
Physical Specification
Color	White
Warranty Information
Warranty	3-Years

Description

The Gigabyte B850M AORUS ELITE WIFI6E ICE Micro ATX AMD Motherboard is a compact yet powerful solution for modern AM5 builds, combining premium performance with a clean white “ICE” design. Built on the AMD B850 chipset, it supports Ryzen 7000, 8000, and 9000 Series processors, delivering top-tier speed and stability for gaming and productivity. This motherboard features a durable 12+2+2 Twin Digital VRM design and a 6-layer 2oz copper PCB, ensuring efficient power delivery and optimal thermal performance. It supports up to 256GB of DDR5 memory across four DIMM slots, with speeds up to 8200MT/s (OC), providing exceptional responsiveness and multitasking power. For expansion, it includes one PCIe 5.0 x16 slot for the latest GPUs, a PCIe 3.0 slot, and dual M.2 slots (PCIe 5.0 and PCIe 4.0) for ultra-fast NVMe SSDs. Connectivity is equally impressive with WiFi 6E, 2.5GbE LAN, USB Type-C, multiple high-speed USB ports, and DisplayPort support. The B850M AORUS ELITE WIFI6E ICE also includes Smart Fan 6, M.2 Thermal Guards, and EZ-Latch features for hassle-free installation. Combining next-gen performance, cooling efficiency, and elegant aesthetics, it’s a perfect choice for small-form-factor gaming or professional PC builds.
