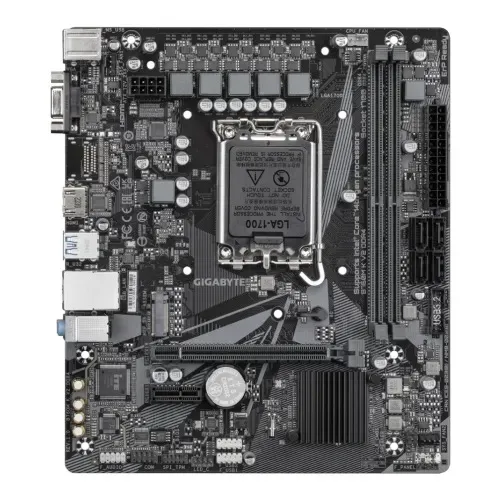

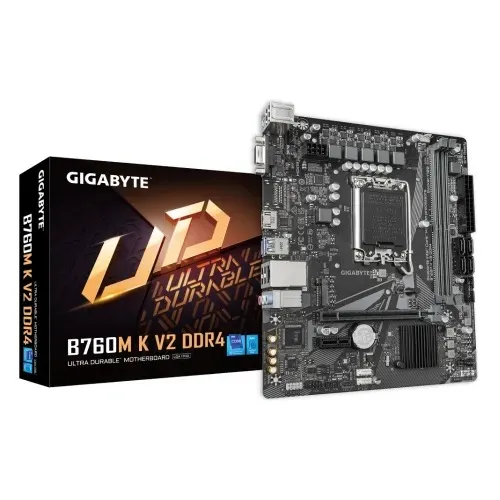

GIGABYTE B760M K V2 DDR4 mATX Motherboard

Name: GIGABYTE B760M K V2 DDR4 mATX Motherboard
Brand: Gigabyte
SKU: B760M K V2 DDR4
Price: 13700.00 BDT
Availability: InStock

Price: 13,700৳

Regular Price: 14,650৳

Status: In Stock

Brand: Gigabyte

Key Features

Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz
Graphics Output: 1x HDMI, 1 x D-Sub
Features: Realtek GbE LAN chip

View More Info

Payment Options

13,700৳ 14,650৳

Cash Discount Price

Online / Cash Payment

Special Price: 13,700৳

View Banks EMI Plans

Specification

General
Brand	GIGABYTE
Model	B760M K V2 DDR4
Memory
Type	DDR4
Slots	2
Maximum Memory	up to 64GB (32 GB single DIMM capacity) of system memory
Supported Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Basic Information
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 22.3cm x 19.3cm
Supported CPU	LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Connectivity
HDMI	1x HDMI
Expansion Slots
M.2 Socket	1 x M.2 connector
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Ports & Connector
Audio	3 x audio jacks
D-Sub (s)	1x D-Sub
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Supported Storage	Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
TPM (Trusted Platform Module)	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Other Features
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash
Warranty Information
Manufacturing Warranty	3 years

Description

Build a stable, high-performance Intel desktop setup with the GIGABYTE B760M K V2 DDR4 mATX Motherboard, available at Skyland Computer BD. Engineered to support Intel’s modern mainstream processors, this micro-ATX board offers the perfect balance of core efficiency, durable hardware components, and expansion potential for gaming and workstation builds.

Powered by the Intel B760 Express Chipset with an LGA 1700 socket, it provides native compatibility for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors. Memory handling is backed by two dual-channel DDR4 DIMM slots supporting up to 64GB of RAM with XMP profile support for optimized memory speeds. Solid power delivery is maintained via a 4+1+1 Hybrid Digital VRM design, ensuring steady voltage to the CPU during demanding multi-threaded tasks.

Storage flexibility includes a high-speed NVMe PCIe 3.0 x4 M.2 slot for fast SSD boot drives alongside four SATA 6Gb/s ports with hardware RAID 0, 1, 5, and 10 support. Primary hardware expansion is handled by a PCIe 4.0 x16 slot for modern graphics cards and a PCIe 3.0 x1 slot for add-in cards. Onboard display connectivity features an HDMI 2.0 port supporting up to 4K resolution alongside a classic D-Sub (VGA) port.

Networking remains responsive with a Realtek GbE LAN chip with bandwidth management, complemented by Realtek 7.1-channel HD Audio. Customization is made simple via an onboard RGB LED strip header, Q-Flash BIOS updating, and GIGABYTE Control Center integration.

Get the best GIGABYTE B760M K V2 DDR4 price in Bangladesh by ordering directly from Skyland Computer BD—your trusted source for authentic PC components and 3 years of official warranty protection.
