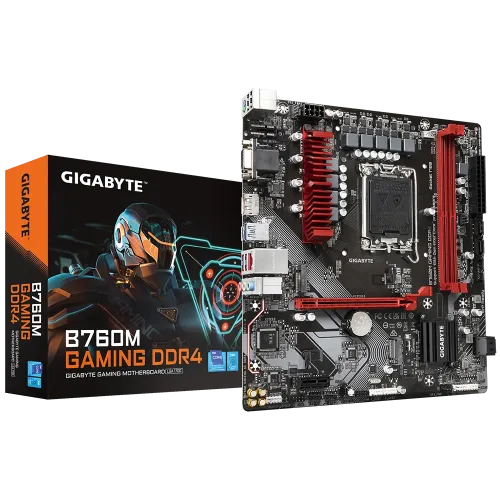

Name: GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
Brand: Gigabyte
SKU: B760M GAMING DDR4

Specification

General
Brand	GIGABYTE
Model	B760M GAMING DDR4
Memory
Type	DDR4
Slots	2
Maximum Memory	supporting up to 64 GB (32 GB single DIMM capacity)
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Basic Information
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 22.5cm
Supported CPU	LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Ports & Connector
Audio	3 x audio jacks
D-Sub (s)	1 x D-Sub port
HDMI	1x HDMI
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module)	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Other Features
Special Features	Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty	3 years Warranty

Description

The GIGABYTE B760M GAMING DDR4 Micro ATX motherboard is engineered to support Intel's 14th, 13th, and 12th generation processors with the LGA1700 socket, making it a versatile choice for gamers and PC enthusiasts. This motherboard accommodates up to 64GB of DDR4 memory across two slots, with speeds reaching up to 5333 MHz when overclocked. It features a robust Hybrid 6+2+1 Phases Digital VRM solution, ensuring stable and efficient power delivery to the CPU. For graphics output, it offers 1x HDMI and 1x DisplayPort, providing flexible display options. The board is equipped with a Realtek 2.5GbE LAN chip, enabling fast network speeds of up to 2.5 Gbps. In terms of storage, the B760M supports next-generation speeds with two PCIe 4.0 x4 M.2 connectors, ideal for fast NVMe SSDs. The EZ-Latch design on the PCIe 4.0x16 slot allows for quick and easy GPU installation. Connectivity options are extensive, including a rear USB-C 5Gb/s port, along with DisplayPort, HDMI, and D-Sub outputs. The Smart Fan 6 technology provides advanced cooling capabilities with multiple temperature sensors and hybrid fan headers that include a FAN STOP feature. Additionally, the Q-Flash Plus function allows users to update the BIOS without needing to install the CPU, memory, or graphics card, simplifying the process of keeping the system up-to-date.

Buy GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard From SkylandBD. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest SkylandBD Shop to get yours at the lowest price. The GIGABYTE B760M GAMING DDR4 Motherboard comes with 3 years warranty.
