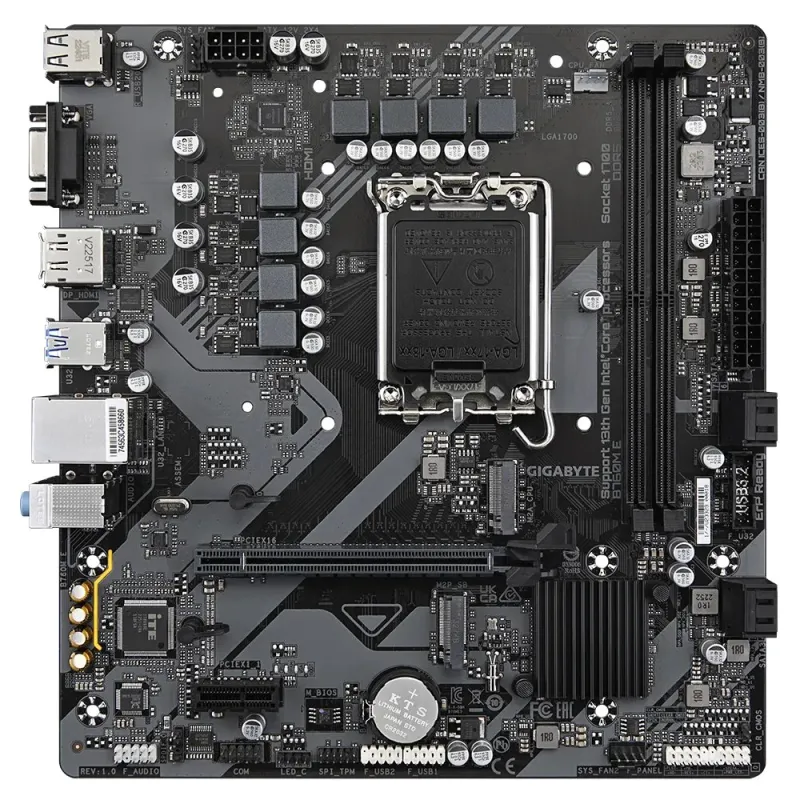

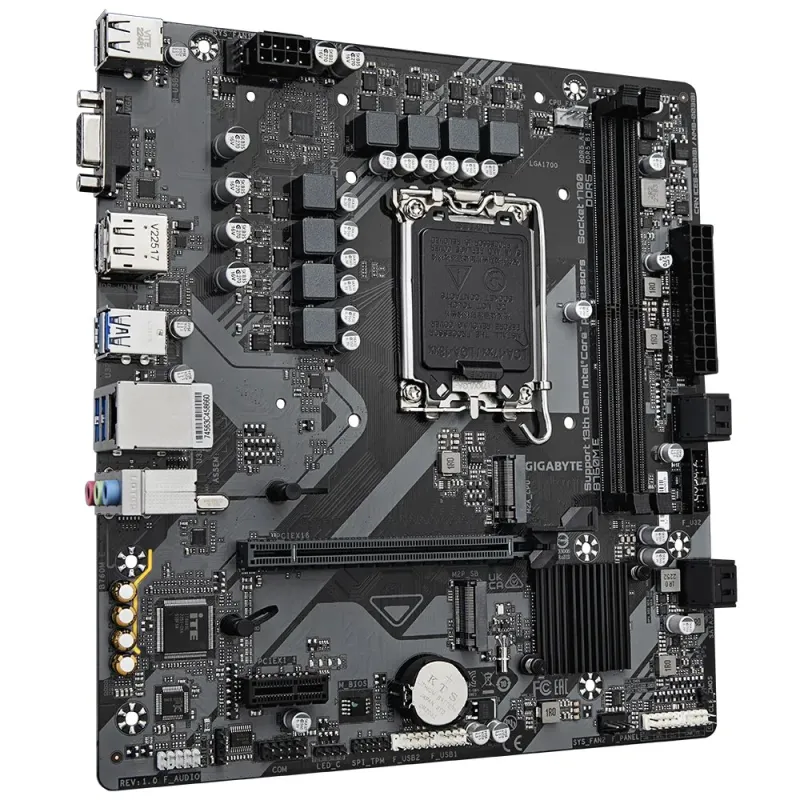

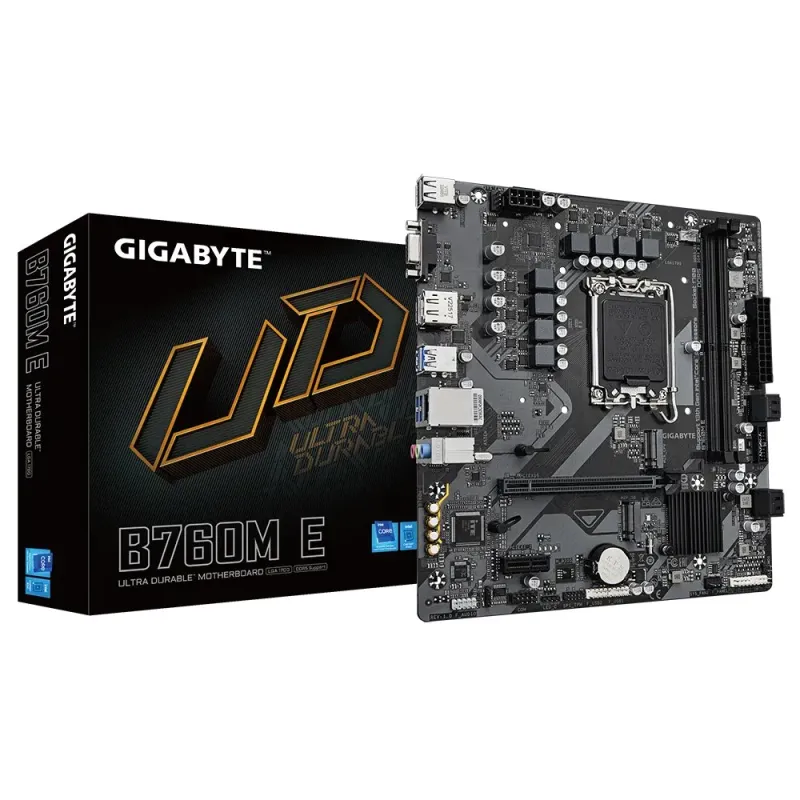

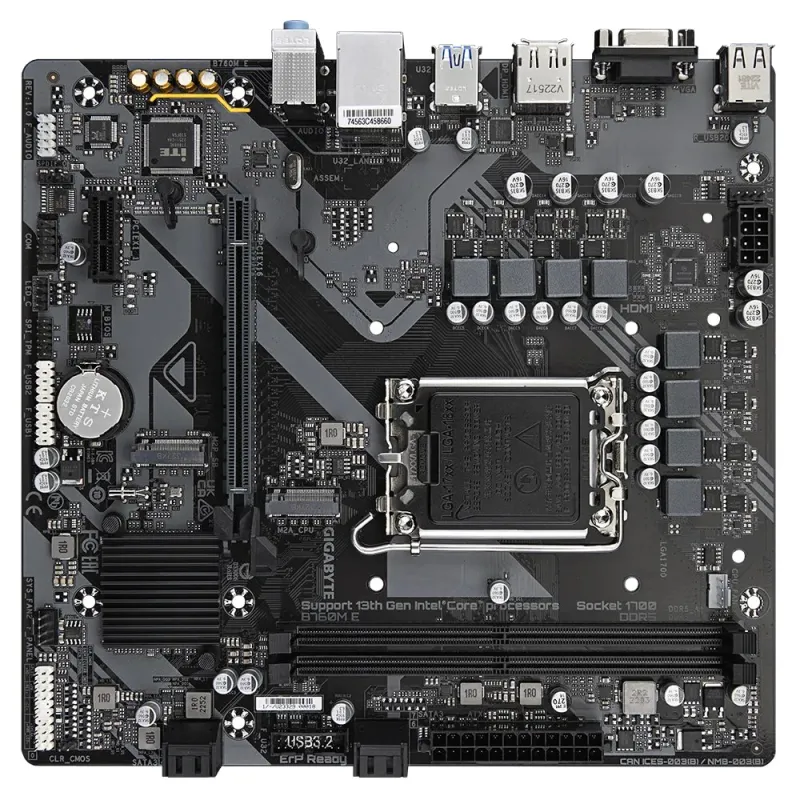

GIGABYTE B760M E DDR5 Micro ATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR5, Max 128GB 7200(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
- Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Specification
| General | |
| Brand | GIGABYTE |
| Model | B760M E |
| Memory | |
| Type | DDR5 |
| Slots | 2 |
| Maximum Memory | Supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory module |
| Graphics | |
| Graphics | Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| Basic Information | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel B760 Express Chipset |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Expansion Slots | |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Ports & Connector | |
| Audio | 3 x audio jacks |
| D-Sub (s) | 1 x D-Sub port |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |

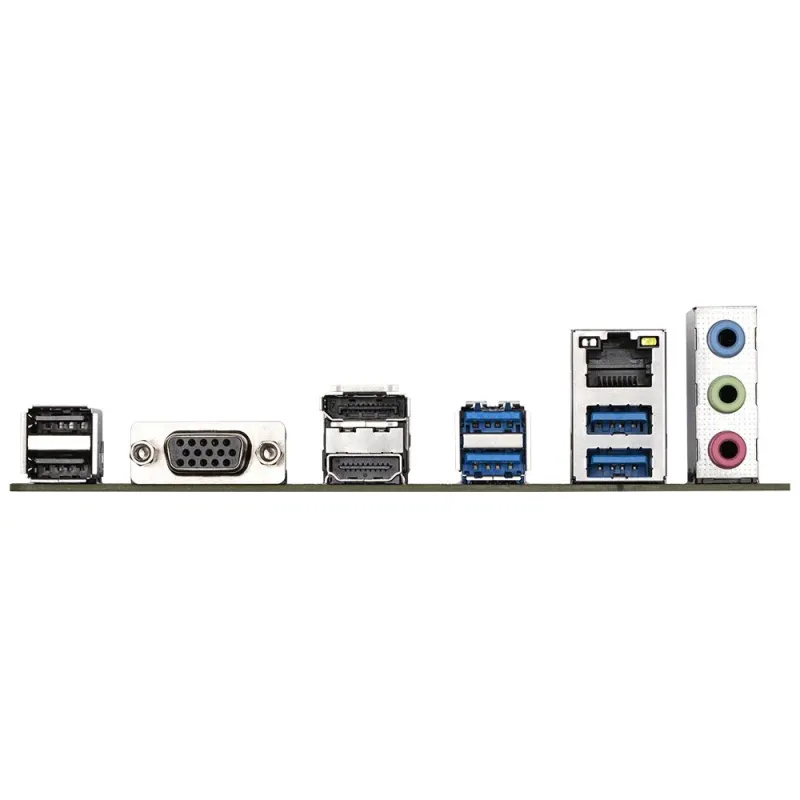

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Others | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Other Features | |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
| Warranty Information | |
| Manufacturing Warranty | 03 years Warranty |
Description
GIGABYTE B760M E DDR5 Micro ATX Motherboard
The GIGABYTE B760M E DDR5 is a powerful and compact Micro ATX motherboard built to support the latest 14th, 13th, and 12th Gen Intel Core processors via the LGA1700 socket. Whether you're building a high-performance gaming rig or a fast multitasking workstation, this board delivers the perfect balance of power, speed, and reliability.
At its core, the motherboard features a 6+1+1 Hybrid Digital VRM design, providing stable and efficient power delivery to keep your CPU running smoothly even under heavy workloads. With support for dual-channel DDR5 memory and 2 DIMM slots, it delivers blazing-fast performance with improved bandwidth, making it a smart and future-proof choice for high-demand computing.
For storage, the dual PCIe 4.0 x4 M.2 slots offer lightning-fast SSD performance—ideal for faster boot times, reduced game loading, and smooth content creation workflows. The EZ-Latch PCIe 4.0 x16 slot makes GPU installation or upgrades effortless, thanks to its quick-release design that requires no tools.
Display connectivity is highly flexible, with DisplayPort, HDMI, and D-Sub outputs, enabling multiple monitor setups and compatibility with both modern and legacy displays. Combined with Gigabit LAN, users get reliable and fast internet performance for gaming, streaming, and online tasks.
The cooling system is optimized through Smart Fan 6, which includes hybrid fan headers, multiple temperature sensors, and a Fan Stop feature that shuts down fans when temperatures are low—ensuring quiet and energy-efficient operation.
With its robust build, modern connectivity, and support for next-gen hardware, the GIGABYTE B760M E DDR5 is the ideal choice for gamers, content creators, and power users looking to stay ahead. Now available at SkyLandBD, it's a reliable platform for building a responsive, high-performance PC.
