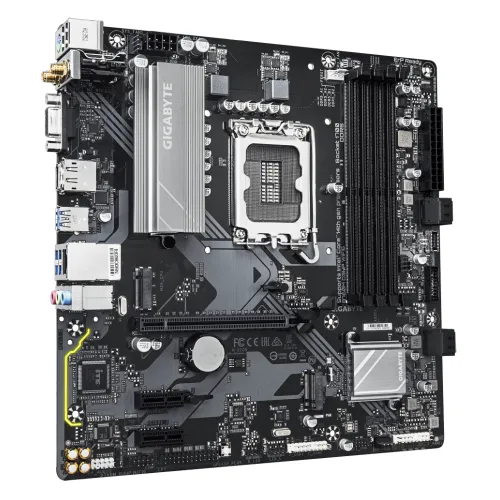

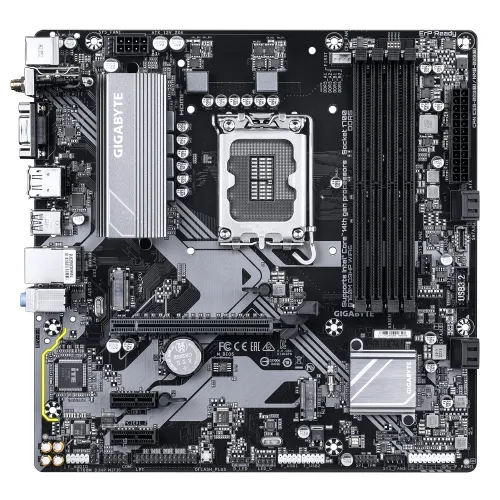

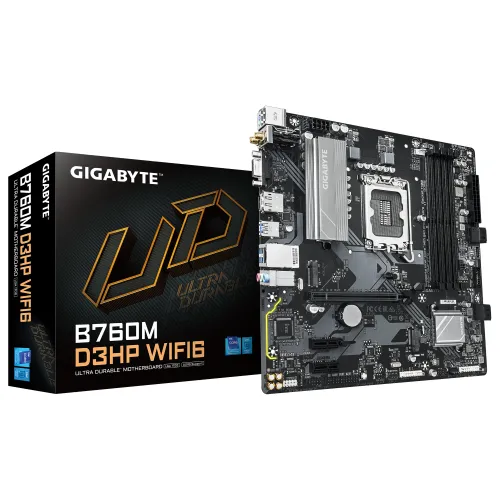

GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard

Name: GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard
Brand: Gigabyte
SKU: B760M D3HP WIFI6
Price: 18800.00 BDT
Availability: InStock

Price: 18,800৳

Regular Price: 20,190৳

Status: In Stock

Brand: Gigabyte

Key Features

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 256GB 5600
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Features: Realtek GbE LAN, Wi-Fi 6, BLUETOOTH 5.3

View More Info

Payment Options

18,800৳ 20,190৳

Cash Discount Price

Online / Cash Payment

Special Price: 18,800৳

View Banks EMI Plans

Specification

General
Brand	GIGABYTE
Model	B760M D3HP WIFI6
Memory
Type	DDR5
Slots	4
Maximum Memory	Supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Supported Memory	Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3
Basic Information
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Ports & Connector
Audio	3 x audio jacks
D-Sub (s)	1 x D-Sub port
Display Port (s)	1 x DisplayPort
HDMI	1 x HDMI port
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module)	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Wireless Communication module	Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Other Features
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty	3 years Warranty

Description

The GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard is a high-performance GIGABYTE WiFi Motherboard built on the Intel B760 chipset, offering full support for 12th, 13th, and 14th Gen Intel Core processors with the LGA1700 socket. Designed in a compact micro-ATX form factor, it supports up to 256GB DDR5 memory with XMP profiles for high-speed tuning, ensuring smooth multitasking and gaming. Storage is future-ready with dual PCIe 4.0 M.2 slots, while connectivity is enhanced by Wi-Fi 6 wireless technology, Gigabit LAN, and versatile I/O including USB-C 5Gb/s, HDMI, DisplayPort, and D-Sub outputs. Its hybrid 4+1+1 phase digital VRM design ensures stable power delivery, while Smart Fan 6 cooling and Q-Flash Plus BIOS update support make system management effortless. Perfect for gamers, creators, and PC builders, the GIGABYTE B760M D3HP WIFI6 DDR5 Motherboard also known as the GIGABYTE 760 Motherboard delivers a balance of speed, reliability, and compact design, making it one of the best DDR5-ready solutions for modern builds.

Buy GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard From SkylandBD. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest SkylandBD Shop to get yours at the lowest price. The GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard comes with 3 years warranty.
