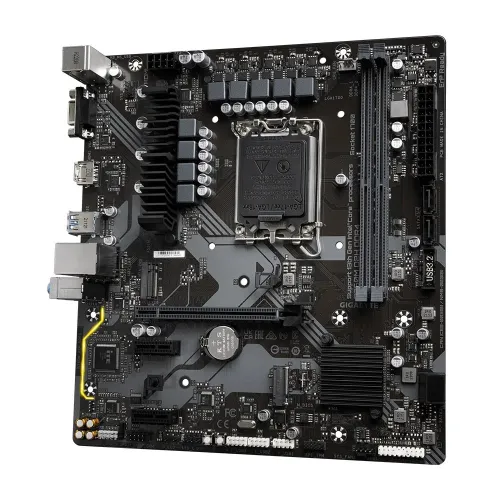

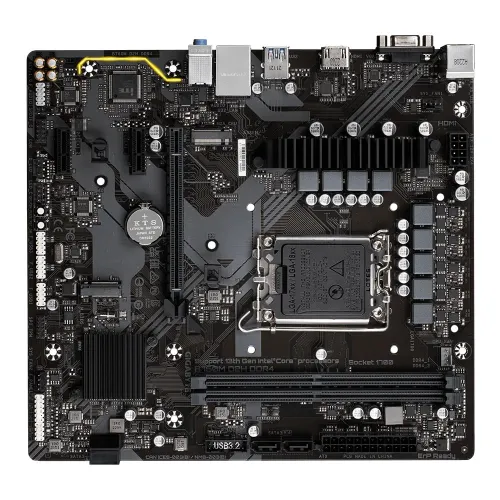

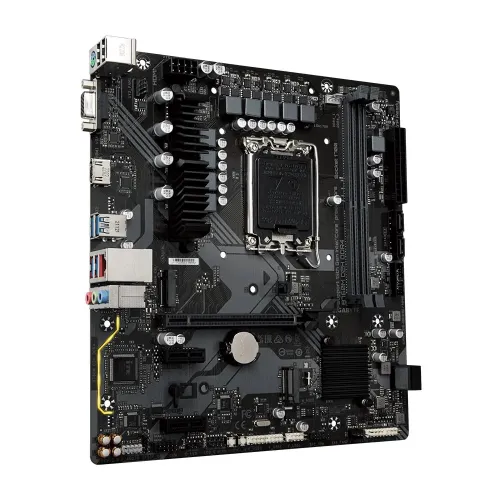

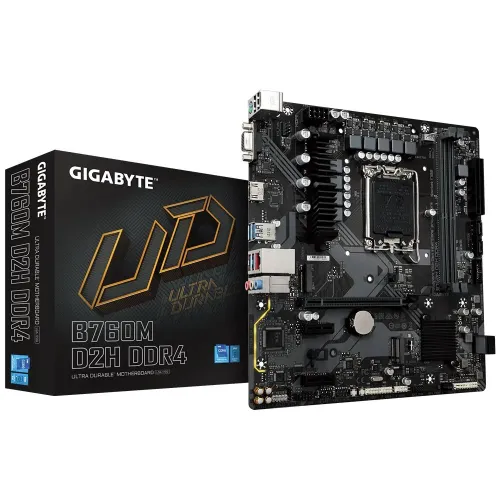

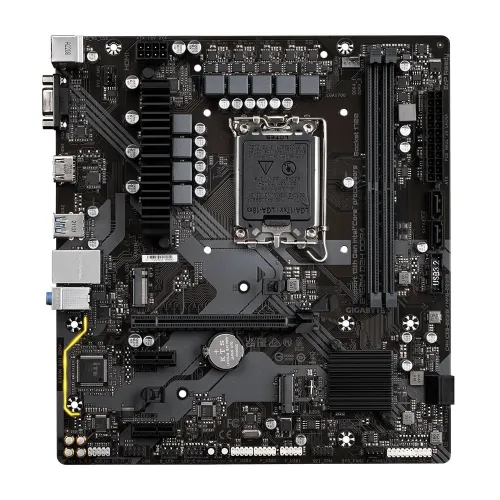

GIGABYTE B760M D2H DDR4 mATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 128GB 5333(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5GbE LAN chip
Specification
| General | |
| Brand | GIGABYTE |
| Model | B760M D2H DDR4 |
| Memory | |
| Type | DDR4 |
| Slots | 2 |
| Maximum Memory | 64GB |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| Basic Information | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel B760 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Ports & Connector | |
| Audio | 1 x front panel audio header 3 x audio jacks |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Other Features | |
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
Description
GIGABYTE B760M D2H DDR4 mATX Motherboard
The GIGABYTE B760M D2H DDR4 is a compact and powerful Micro ATX motherboard built to support the latest 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket. Whether you're building a high-performance gaming system or a multitasking workstation, this board delivers the performance and flexibility you need.
Powered by a 6+2+1 phase Hybrid Digital VRM design, it ensures stable power delivery for reliable performance during heavy workloads or intensive applications. This makes it ideal for users looking for long-term stability and responsive system behavior.
Memory support includes dual-channel DDR4, up to 64GB, with XMP support, allowing easy memory overclocking for better speed and performance. For storage, the board features two PCIe 4.0 x4 M.2 slots, providing ultra-fast NVMe SSD support to speed up your OS, software, and game loading times.
The PCIe 4.0 x16 slot includes GIGABYTE’s user-friendly EZ-Latch design, making GPU installation and upgrades tool-free and hassle-free. For display connectivity, it offers both HDMI and D-Sub ports, allowing compatibility with a wide range of modern and legacy monitors.
High-speed networking is made possible with 2.5GbE LAN, offering faster and more reliable internet connectivity—perfect for gaming, streaming, and large file transfers.
Thermal management is handled by Smart Fan 6, which includes multiple temperature sensors, hybrid fan headers, and FAN STOP for quiet, energy-efficient cooling performance.
One standout feature is Q-Flash Plus, which allows BIOS updates without a CPU, RAM, or graphics card—ideal for quick updates and easy troubleshooting during system setup.
If you’re looking for a reliable and performance-packed DDR4 motherboard, the GIGABYTE B760M D2H DDR4 is a future-ready choice—available now at SkyLandBD.
