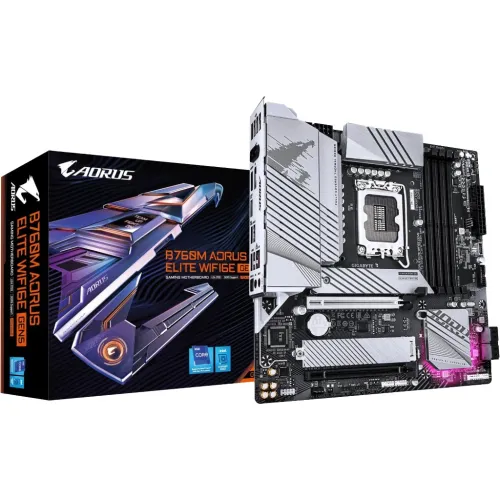

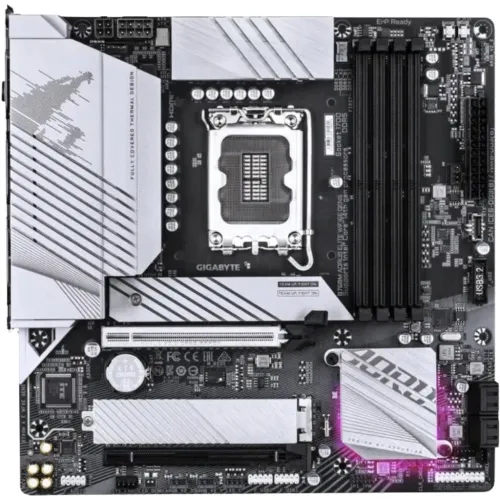

GIGABYTE INTEL B760M AORUS ELITE WF6E GEN5 LGA1700 Motherboard
Key Features
- Chipset: Intel B760
- CPU socket: LGA1700 socket
- Memory: 4 x DDR5
- Form Factor: Micro ATX
Specification
| General | |
| Brand | GIGABYTE |
| Model | B760M AORUS ELITE WF6E GEN5 |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DDR5 DIMM |
| Maximum Memory | up to 256 GB |
| Supported Memory | Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Basic Information | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel B760 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Expansion Slots | |
| M.2 Socket | 2 x M.2 Socket 3 connectors |
| PCI | Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Ports & Connector | |
| Audio | 1 x front panel audio header 2 x audio jacks |
| Display Port (s) | - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| HDMI | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) |
| USB (s) | Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel |
| Wireless Communication module | Intel® Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Others | |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software * Service discontinued as a result of contract termination by the software provider |
| Other Features | |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Warranty Information | |
| Manufacturing Warranty | 03 Years Warranty |
Description
The GIGABYTE B760M AORUS ELITE WIFI6E GEN5 is a high-performance Micro ATX motherboard built for gamers, creators, and PC enthusiasts looking for speed, connectivity, and stability. Designed for Intel 14th, 13th, and 12th Gen Core processors, as well as Pentium Gold and Celeron CPUs, it uses the Intel B760 chipset to deliver robust performance across gaming and productivity workloads. Equipped with four DDR5 DIMM slots supporting up to 256GB of memory, the motherboard allows extreme memory overclocking for maximum efficiency. Dual-channel memory support ensures fast data transfer rates, while XMP profile compatibility makes boosting RAM speeds effortless. Integrated Intel HD Graphics with HDMI 2.1 and DisplayPort 1.2 support high-resolution displays up to 4096x2160, providing crisp visuals without a dedicated GPU for lightweight tasks. Connectivity is comprehensive, featuring Intel Wi-Fi 6E AX210, Bluetooth 5.3, 2.5GbE LAN, and multiple USB Type-C and Type-A ports, ensuring seamless network and peripheral support. Storage options include two M.2 connectors with PCIe 4.0 support and four SATA 6Gb/s ports, plus RAID 0/1/5/10 capabilities for advanced configurations. Audio is powered by Realtek HD CODEC, supporting up to 7.1-channel surround sound, and an optical S/PDIF out. The motherboard also offers Q-Flash and Q-Flash Plus, RGB customization with addressable LED headers, and robust system monitoring including voltage, temperature, and fan control. Its compact Micro ATX form factor (24.4cm x 24.4cm) ensures compatibility with smaller cases without compromising features. Compatible with Windows 10 and 11 64-bit, the GIGABYTE B760M AORUS ELITE WIFI6E GEN5 combines cutting-edge performance, next-gen connectivity, and future-proof expandability for demanding builds. The GIGABYTE B840M DS3H AMD motherboard delivers reliable power delivery, DDR5 memory support, and excellent compatibility for Ryzen processors. A great choice for budget and mid-range PC builds, offering strong performance at an affordable motherboard price in BD.
