GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard

GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
Save: 3,601৳
GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
0 reviews • Write a review
  • Offer Price: 21,399৳
  • Regular Price: 25,000৳
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B650 UD AX

Key Features

  • Form Factor: ATX
  • Chipset: AMD B650
  • Memory: 4 x DDR5 DIMM up to 256 GB
  • Wireless: Realtek RTL8851 WIFI 6 module
View More Info

Payment Options

21,399৳25,000৳

Cash Discount Price

Online / Cash Payment
—/month

Regular Price: —

Compare Bank EMI Options
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

General
Brand GIGABYTE
Model B650 UD AX
Input Devices

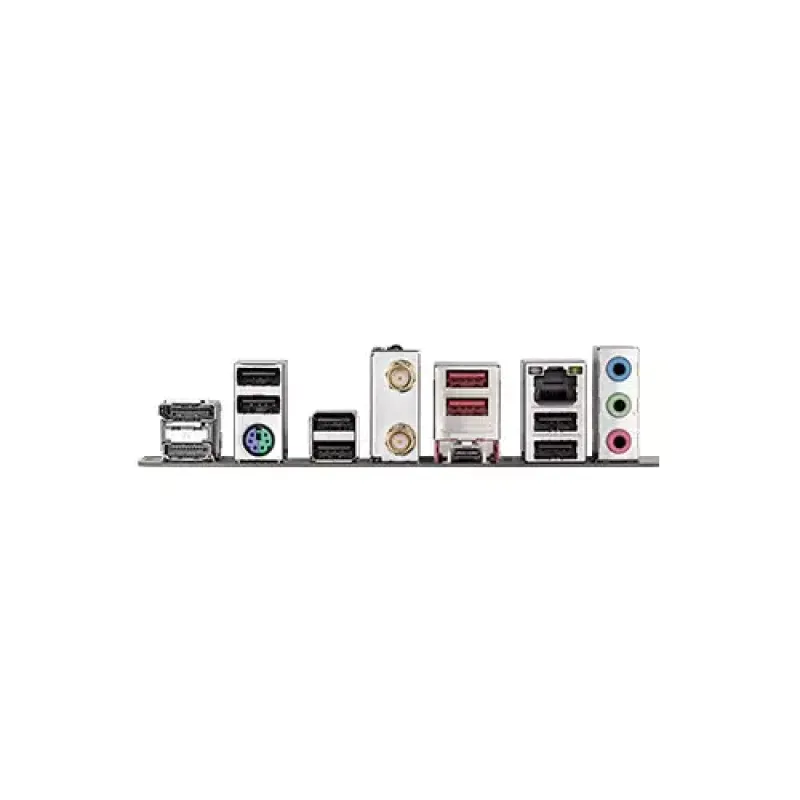

External I/O Ports 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Memory
Slots Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Graphics
Graphics Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Software
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
Basic Information
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD B650 Chipset
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors (Please refer "CPU Support List" for more information.)
Audio & Microphone
Audio Realtek Audio CODEC ALC897 High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Network & Connectivity
Bluetooth BT 5.0
WiFi Realtek RTL8851 WIFI 6 module - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)
LAN Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Ports & Connector
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 1 x addressable RGB Gen2 LED strip header 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x Clear CMOS jumper
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB (s) CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Others
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Other Features
Other Features I/O Controller: iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install
Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Warranty 3 Years

Description

GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard

The GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard is designed to deliver top-tier performance, stability, and expandability for gamers and professionals alike. Built to support the latest AMD Ryzen 7000 Series processors, it offers the perfect balance of power and efficiency for modern systems. Featuring the advanced AMD B650 chipset, this motherboard supports next-generation DDR5 memory, ensuring faster data throughput, enhanced stability, and better overall responsiveness for demanding applications. The inclusion of PCIe 5.0 provides cutting-edge bandwidth for the latest graphics cards and storage devices, making it future-ready for upcoming hardware upgrades. To maintain consistent performance, the board is equipped with a robust 12+2+1 Twin Hybrid Digital VRM power design that ensures efficient power delivery even under heavy workloads. The enlarged heatsinks and M.2 thermal guards help maintain optimal thermal performance, keeping your components cool and stable during intense gaming or multitasking sessions. The GIGABYTE B650 UD AX also stands out for its impressive connectivity. It includes Intel Wi-Fi 6E and 2.5GbE LAN for ultra-fast, reliable networking, while Bluetooth 5.3 enables easy wireless device pairing. The inclusion of USB 3.2 Gen 2x2 Type-C and multiple high-speed USB ports allows seamless connectivity with peripherals and external storage. With features like Q-Flash Plus, users can update the BIOS effortlessly without installing a CPU, memory, or graphics card, simplifying system setup and maintenance. Engineered with precision and durability, this motherboard offers a strong foundation for building a high-performance, future-proof PC.

Write a review

Please login or register to review

What is the price of GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard in Bangladesh?

The latest price of GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard in Bangladesh is 21,399৳. You can buy the GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard at the best price from our website or visit any of our showrooms.
