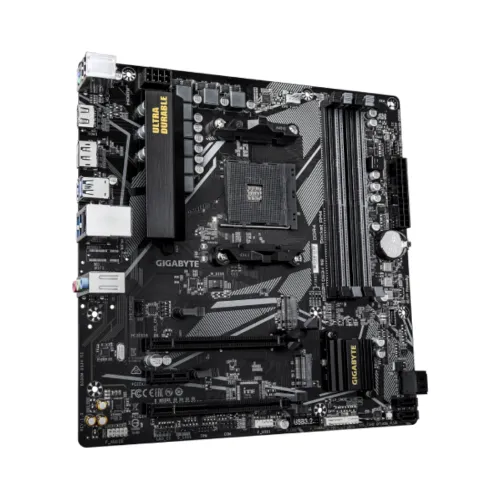

Name: GIGABYTE B550M DS3H R2 mATX AMD Motherboard
Brand: Gigabyte
SKU: B550M DS3H R2
Price: 13200.00 BDT
Availability: InStock

Specification

General
Brand	GIGABYTE
Model	B550M DS3H R2
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Maximum Memory	128 GB
Supported Memory	Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory	16 GB
Basic Information
Audio	Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	AMD B550
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU	AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 3000 Series Processors
Expansion Slots
M.2 Socket	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Ports & Connector
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel
Display Port (s)	- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
HDMI	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
TPM (Trusted Platform Module)	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
USB (s)	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Warranty Information
Manufacturing Warranty	03 years Warranty

Description

The GIGABYTE B550M DS3H R2 mATX AMD Motherboard is a highly reliable, compact foundation designed for gamers and content creators building on the AMD platform, now available at SkyLandBD. Combining the versatility of the AMD B550 chipset with robust power delivery, this Micro-ATX board offers the perfect balance of performance, speed, and future-ready upgradability for budget-to-mid-range setups.

Next-Gen Speed & Processing Support

Broad CPU Compatibility: Built on the Socket AM4 architecture, natively supporting AMD Ryzen 5000 Series, 4000 G-Series, and 3000 Series processors to easily match your processing needs.
PCIe 4.0 Readiness: Harness fast data speeds with a dedicated PCIe 4.0 x16 expansion slot for modern graphics cards, paired with dual NVMe M.2 slots (PCIe 4.0 x4 and PCIe 3.0 x4) for rapid storage response.
Massive DDR4 Capacity: Features 4 DIMM slots supporting up to 128GB of dual-channel DDR4 memory, providing high overclocking capabilities to keep multi-threaded applications and gaming smooth.

Reliable Power & Thermal Architecture

Digital VRM Design: Equipped with a 5+3 phases pure digital PWM setup alongside low RDS(on) MOSFETs, ensuring precise and stable voltage delivery to your CPU during sustained processing or gaming spikes.
Smart Fan 5 Cooling: Features multiple temperature sensors and hybrid fan headers with Fan Stop technology, allowing you to completely customize fan curves to minimize acoustic noise while maximizing cooling efficiency.
Q-Flash Plus Utility: Update your BIOS effortlessly without installing a CPU, memory, or graphics card. Simply plug in a USB flash drive pre-loaded with the BIOS file, press the physical Q-Flash Plus button, and you are ready to go.

High-Fidelity Audio & Seamless Connectivity

Premium Gaming Audio: Powered by high-end audio capacitors and an integrated noise guard to protect sensitive analog audio components from EMI (electromagnetic interference), delivering clean 7.1-channel HD sound.
Realtek Gigabit LAN: Features high-bandwidth Realtek GbE Network LAN with automatic bandwidth management to prioritize gaming packets and minimize online latency.
Rich Peripheral I/O: Offers flexible display options via onboard HDMI and DisplayPort configurations, alongside a internal USB Type-C header and multiple USB 3.2 Gen 1 ports for high-speed device swapping.

Available at SkyLandBD. Build an enduring, high-speed desktop configuration with genuine GIGABYTE Ultra Durable hardware and a 3-year manufacturer warranty in Bangladesh.

Are you currently picking out parts for a fresh PC build? I can recommend a high-speed PCIe 4.0 NVMe SSD or a compatible AMD Ryzen processor to perfectly match this B550 motherboard setup.
