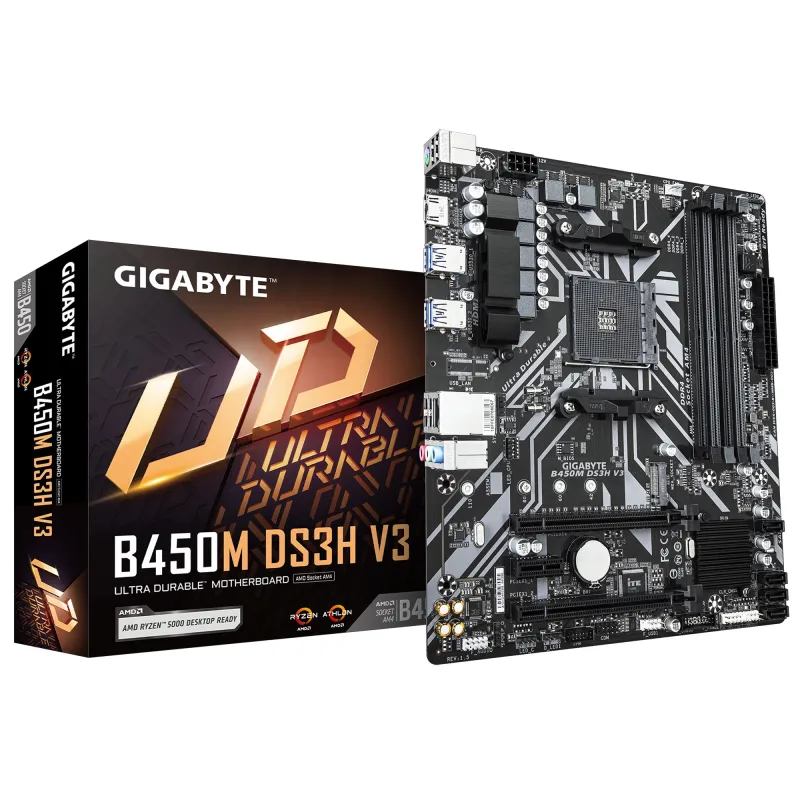

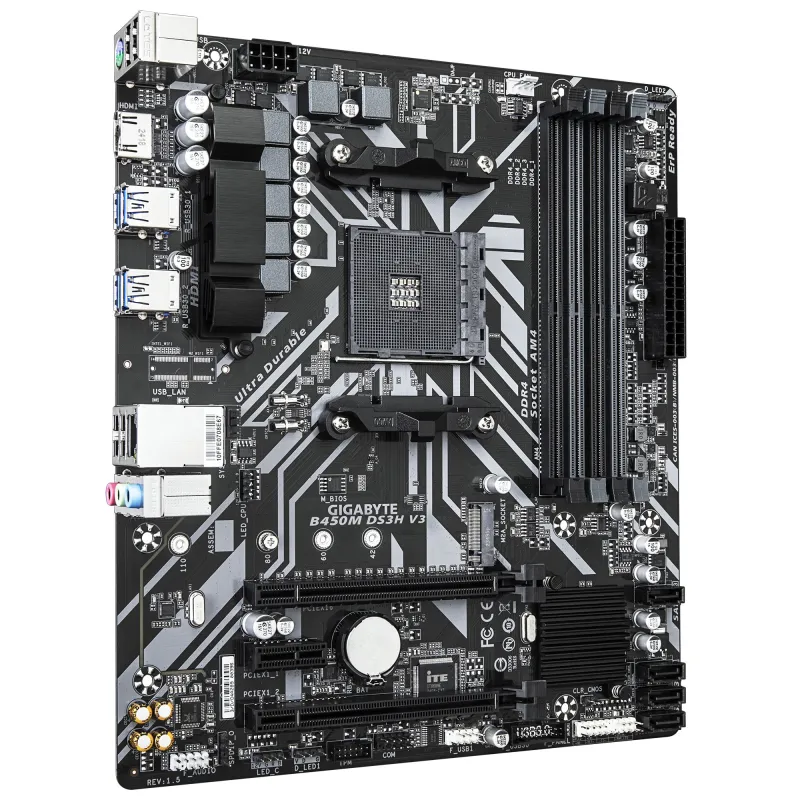

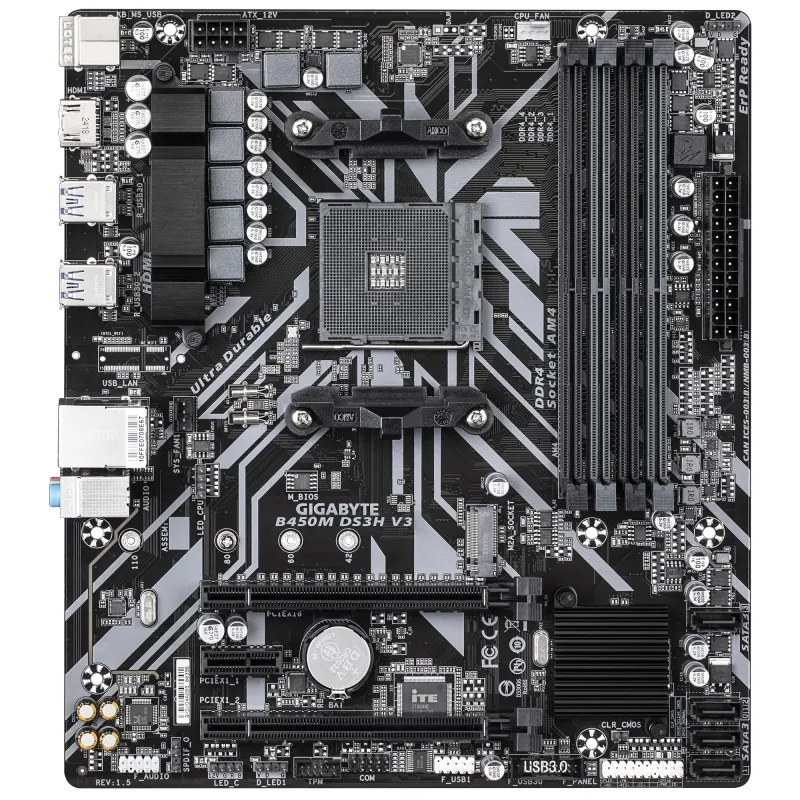

Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard

Gigabyte B450M DS3H V3 AMD AM4 Micro ATX Motherboard

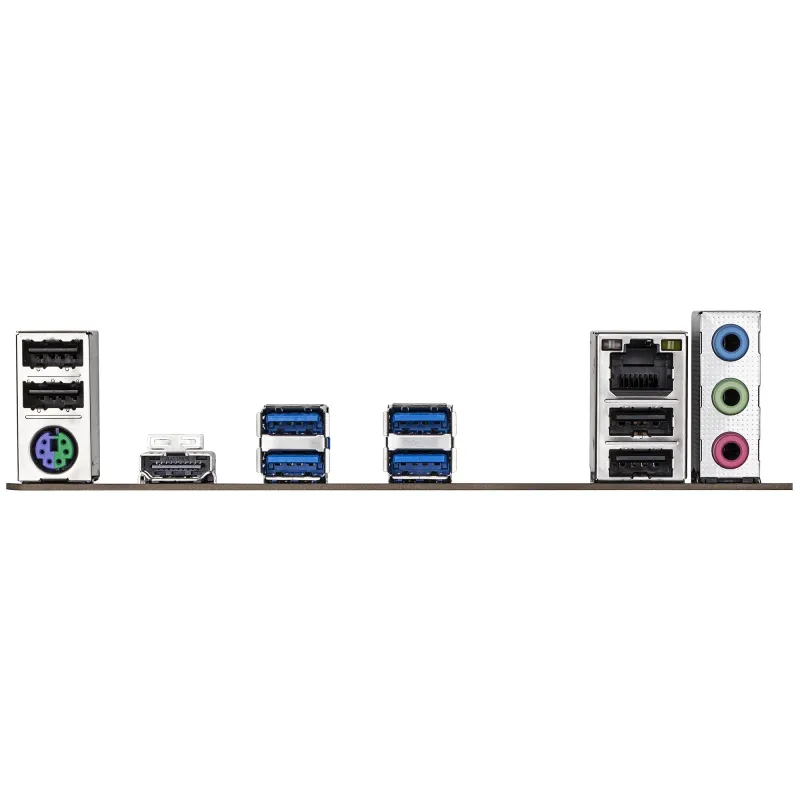

The Gigabyte B450M DS3H V3 is a compact yet powerful Micro ATX motherboard engineered for AMD AM4 socket processors, making it a versatile foundation for gaming rigs, productivity setups, and budget-friendly builds. With robust support for a wide range of AMD Ryzen CPUs including the latest Ryzen 5000 Series, 5000G, 4000G, and earlier generations with Radeon Vega Graphics and Athlon processors this Gigabyte motherboard ensures future-ready compatibility and performance scalability. Powered by the reliable AMD B450 chipset, it features four DDR4 DIMM slots supporting up to 128GB of system memory, dual-channel architecture, and XMP profiles for enhanced memory tuning. Whether you're running DDR4 2933 or stepping down to 2133 MT/s, the Gigabyte B450M DS3H V3 motherboard handles both ECC and non-ECC unbuffered modules with ease, offering flexibility for creators and multitaskers alike. Graphics output is handled via an integrated HDMI 2.1 port with support for 4K resolution at 60Hz and HDCP 2.2, making it ideal for media streaming, casual gaming, or multi-monitor productivity. Audio is powered by Realtek HD codec, delivering immersive 7.1-channel sound with S/PDIF Out support and customizable jack functionality through bundled software. Networking is seamless thanks to the Realtek Gigabit LAN chip, ensuring stable and fast internet connectivity for online gaming, streaming, or remote work. Expansion options include one PCIe 3.0 x16 slot for high-performance GPUs, a secondary PCIe x16 slot running at x1, and a PCIe x1 slot for additional cards. Storage is future-proofed with a high-speed M.2 connector supporting both SATA and PCIe NVMe SSDs (up to 22110 form factor), alongside four SATA 6Gb/s ports with RAID 0, 1, and 10 support for data redundancy and speed. USB connectivity is generous, with four USB 3.1 Gen 1 ports on the rear I/O, two more via internal headers, and six USB 2.0 ports for legacy peripherals. The Gigabyte B450M DS3H V3 AMD AM4 also includes RGB Fusion support with multiple LED headers standard and addressable allowing builders to customize lighting effects and sync with other RGB components. Smart Fan control, temperature and voltage monitoring, and fail warnings ensure thermal stability and system longevity. BIOS features include a 128Mbit AMI UEFI BIOS with support for Q-Flash and Xpress Install, making updates and setup intuitive even for first-time builders. Bundled with Norton Internet Security and LAN bandwidth management software, the B450M DS3H V3 is optimized for secure, high-speed performance. It supports Windows 11, 10, and even Windows 7 (with Pinnacle Ridge or Summit Ridge CPUs), making it a flexible choice for users with legacy systems or modern OS needs. Measuring 24.4cm x 21.5cm, this Gigabyte B450M DS3H V3 Micro ATX motherboard fits comfortably in most mid-tower and compact cases, offering a perfect blend of affordability, reliability, and feature-rich design for DIY PC enthusiasts, gamers, and professionals alike.
