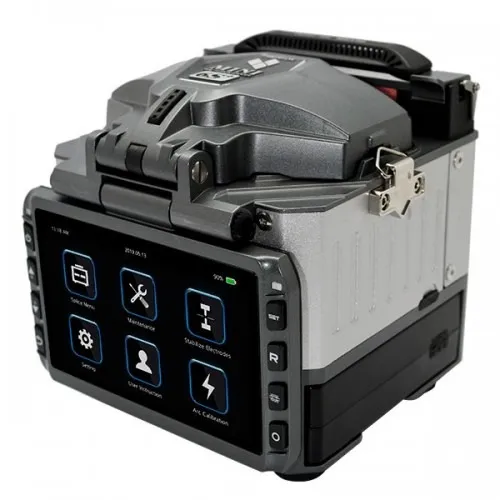

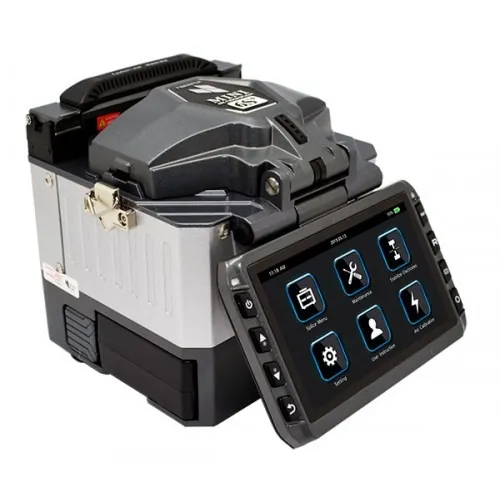

FiberFox Mini 5C+ Core to Core 6 Motors Set Splicer Machine

FiberFox Mini 5C+ Core to Core 6 Motors Set Splicer Machine

The FiberFox Mini 5C+ Core to Core 6 Motors Set Splicer Machine uses the Core Alignment DCID (Digitized Core Image Detecting) System method for splicing. The machine has an average loss of SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB). It has Factory Installed : 12 user modes, User installable mode : 128 splicing programs. The fiber types that can be used in this machine are SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable). The average heating time is Typical 10s (60mm sleeve) and 5 Sec (Micro Sleeve). There are 36 (Factory installed mode : 4, User installable mode : 32) heating modes that are available. To detect the fiber, the machine uses 2 CCD camera system with Color 4.3" LCD monitor, with Touch Screen (Tempered Glass) monitor which allows you to see all the functions and features clearly. The battery used here typical 200 Cycles (Splice & Heat) / single battery, 2 Batteries Standard with a power supply ability of AC 100-240V input or DC 9~14V. The max wind speed resistance of this splicer machine is 15m/s.

The FiberFox Mini 5C+ Core to Core 6 Motors Set Splicer Machine has 1 Year Warranty.
