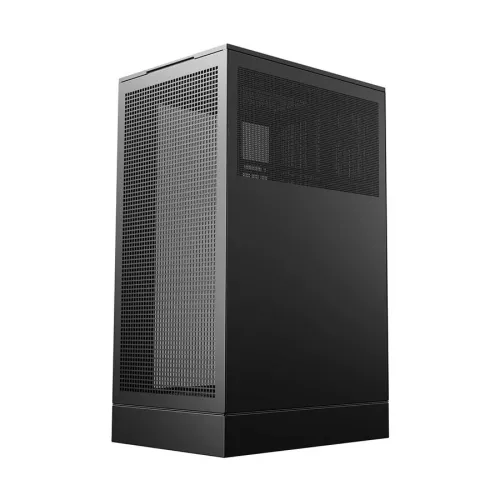

DeepCool CH270 Digital M-ATX Mini-Tower Gaming Casing with Digital Display
Key Features
- Motherboard Support: Mini-ITX / Micro-ATX
- Expansion Slots: 4 Slots
- Front I/O Ports: USB3.0×2, Gen2 Type-C x1, Audio×1
- Materials: ABS+SPCC+Tempered Glass
Specification
| General | |
| Brand | DeepCool |
| Model | CH270 Digital |
| MPN | R-CH270-BKNDM0-G-1 |
| Case Type | |
| Motherboard Support | Mini-ITX / Micro-ATX |
| Tempered Glass Panel | Yes |
| Type | Mini Tower |
| Clearance Space | |
| Maximum CPU Cooler Height | 174mm |
| Maximum Graphics Card Length | 388/413mm |
| Maximum PSU Length | ATX PS2(maximum length: 150mm) |
| External Features | |
| Color(s) | Black |
| Dimensions | 296mm*225mm*486mm(L×W×H) |
| Drive Bays | 1x 3.5" Drive Bays 1x 2.5" Drive Bays |
| Expansion Slots | 4Slots |
| Fan Support | Top:2×120mm Side:3×120mm/2x140mm Bottom:1×120mm |
| Front Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| Material | ABS+SPCC+Tempered Glass |
| Others | Digital Display |
| Radiator Support | Side:120/240/360mm Bottom: 120mm |
| Weight | 5.8Kg |
| Warranty Information | |
| Warranty | No Warranty |
Description

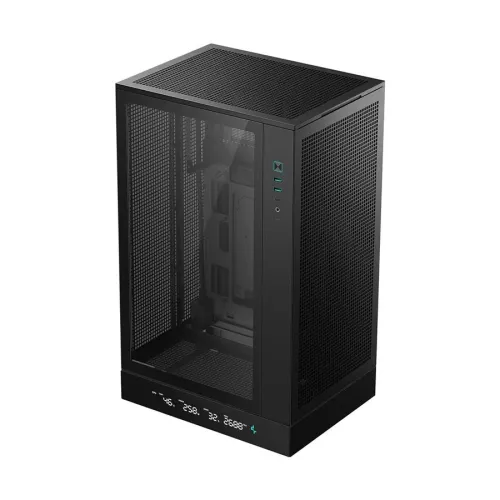

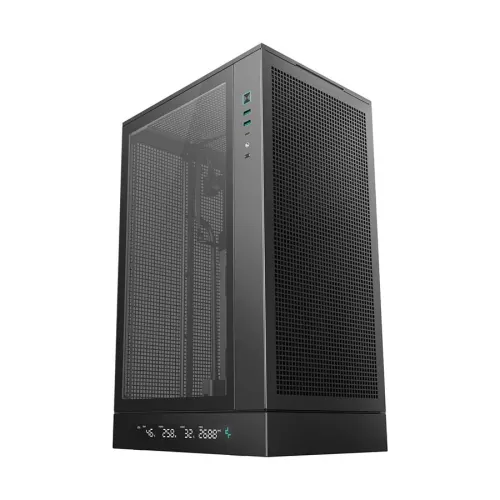

The DeepCool CH270 Digital M-ATX Mini-Tower Gaming Case is a sleek, space-efficient chassis engineered for builders who demand both style and substance in compact form. Crafted from a blend of ABS, SPCC steel, and tempered glass, it offers a premium finish while ensuring durability and thermal stability. Designed to support Mini-ITX and Micro-ATX motherboards, including rear connector configurations, the Deepcool CH270 Digital maximizes internal space without compromising on performance. Its standout feature a built-in digital display adds a futuristic edge by showcasing real-time system metrics for enhanced monitoring. Despite its minimalist footprint, the casing accommodates high-performance components with support for GPUs up to 413mm (without top fans), CPU coolers up to 174mm, and ATX PS2 power supplies up to 150mm in length. Cooling flexibility is a core strength, with mounts for up to six fans: two 120mm on top, three 120mm or two 140mm on the side, and one 120mm at the bottom, plus radiator support up to 360mm on the side and 120mm at the bottom. The front I/O panel is equipped with dual USB 3.0 ports, a Gen2 Type-C connector, and a combo audio jack, offering fast and versatile connectivity. With four expansion slots and dedicated bays for both 3.5" and 2.5" drives, the Deepcool CH270 Digital delivers a balanced blend of airflow, modularity, and visual appeal—making it an ideal choice for gamers, creators, and tech enthusiasts seeking a refined, high-performance mini-tower.
