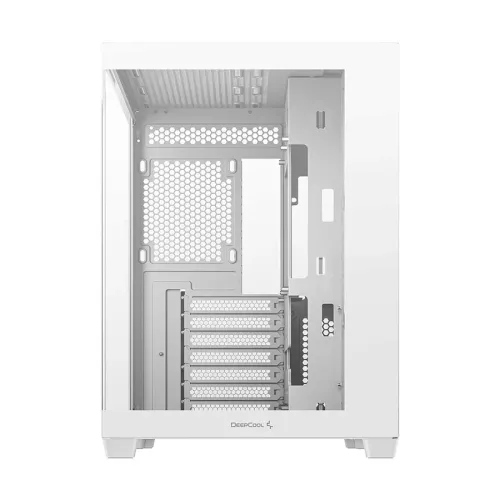

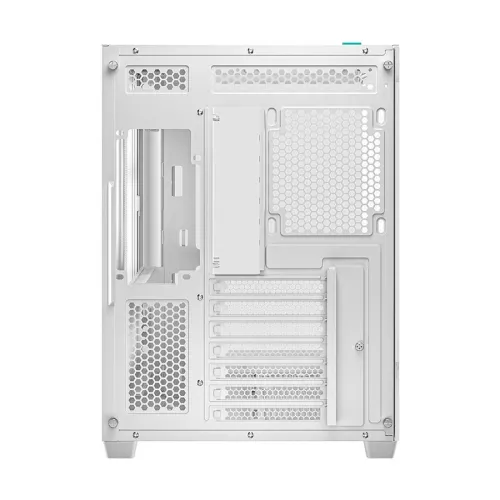

Deepcool CG530 WH Mid Tower ATX Gaming Casing
Key Features
- Motherboard Support: ITX/ Micro-ATX/ ATX/ ATX
- Front I/O Ports: 2 x USB 3.0, 1 x USB 2.0, 1 x Audio
- Expansion Slots: 7 Slots
- Tempered Glass Panels Dual Chamber
Specification
| General | |
| Brand | Deepcool |
| Model | CG530 WH |
| MPN | R-CG530-WHNDA0-G-1 |
| Additional Feature | |
| Side Panel | Yes |
| Case Type | |
| Motherboard Support | ITX/ Micro-ATX/ ATX/ ATX (Rear Connector)/ Micro-ATX (Rear Connector) |
| Tempered Glass Panel | Yes |
| Type | Mid Tower |
| Clearance Space | |
| Maximum CPU Cooler Height | 160mm |
| Maximum Graphics Card Length | 410mm |
| Maximum PSU Length | ATX PS2 maximum length: 210mm |
| External Features | |
| Color(s) | White |
| Dimensions | 440 x 285 x 399mm |
| Drive Bays | 3.5" Drive Bays: 2. 2.5" Drive Bays: 3 |
| Expansion Slots | 7 Slots |
| Fan Support | Top: 3 x 120mm/ 2 x 140mm, Side: 3 x 120mm/ 2 x 140mm, Rear: 1 x 120mm, Bottom: 3 x 120mm/ 3.5 HDD+2 x 120mm/ 2.5 SSD + 2 x 120mm |
| I/O Port | 2 x USB 3.0, 1 x USB 2.0, Audio/ Mic x 1 |
| Material | ABS+SPCC+Tempered Glass |
| Radiator Support | Top: 120/ 140/ 240/ 280/ 360mm, Side: 120/ 140/ 240/ 280mm, Bottom: 120/ 240/ 360mm |
| Weight | 6.4 Kg |
| Warranty Information | |
| Warranty | No Warranty |
Description
The DeepCool CG530 WH mid-tower ATX case is a statement piece for builders who value performance, aesthetics, and clean design. Its striking white finish and pillarless panoramic tempered glass panels offer an unobstructed view of your build, turning your PC into a visual centerpiece. The advanced dual-chamber layout separates the PSU and storage from the main components, improving airflow and simplifying cable management for a clutter-free interior. This Deepcool CG530 WH supports a wide range of motherboard formats, including ITX, Micro-ATX, and ATX (with rear connector compatibility), making it ideal for both compact and full-scale builds. With support for GPUs up to 410mm and CPU coolers up to 160mm, it’s ready for high-performance gaming or creative workloads. The CG530 WH excels in cooling flexibility, offering up to 10 fan mounting positions and radiator support for top, side, and bottom placements accommodating sizes from 120mm to 360mm for custom liquid cooling setups. Storage is equally versatile, with dual 3.5-inch drive bays and three 2.5-inch SSD slots, ensuring ample room for both speed and capacity. The front I/O panel includes dual USB 3.0 ports, a USB 2.0 port, and audio/mic jacks, providing convenient access for peripherals and headsets. Built from durable ABS, SPCC steel, and tempered glass, the Deepcool CG530 WH balances rugged construction with sleek elegance. Whether you're building a high-end gaming rig, a creator workstation, or a minimalist showcase PC, the DeepCool CG530 WH Gaming Casing delivers the space, style, and thermal performance to bring your vision to life.
