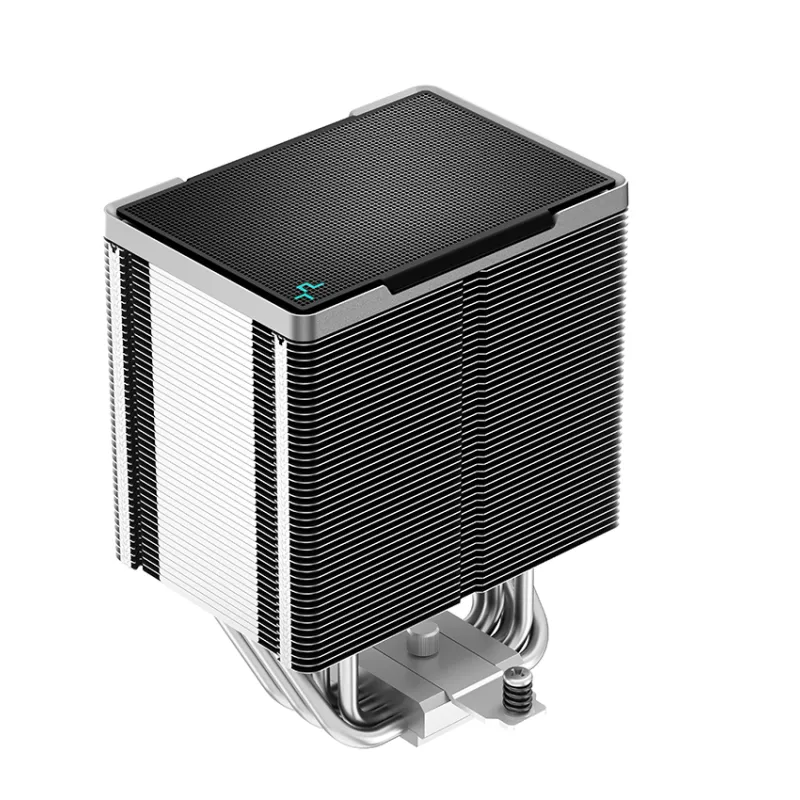

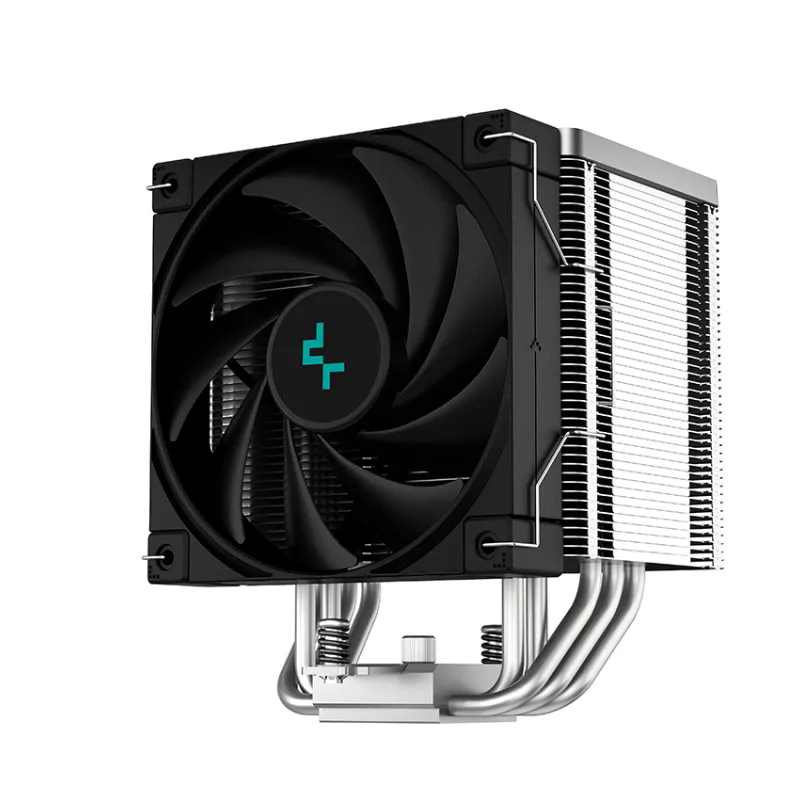

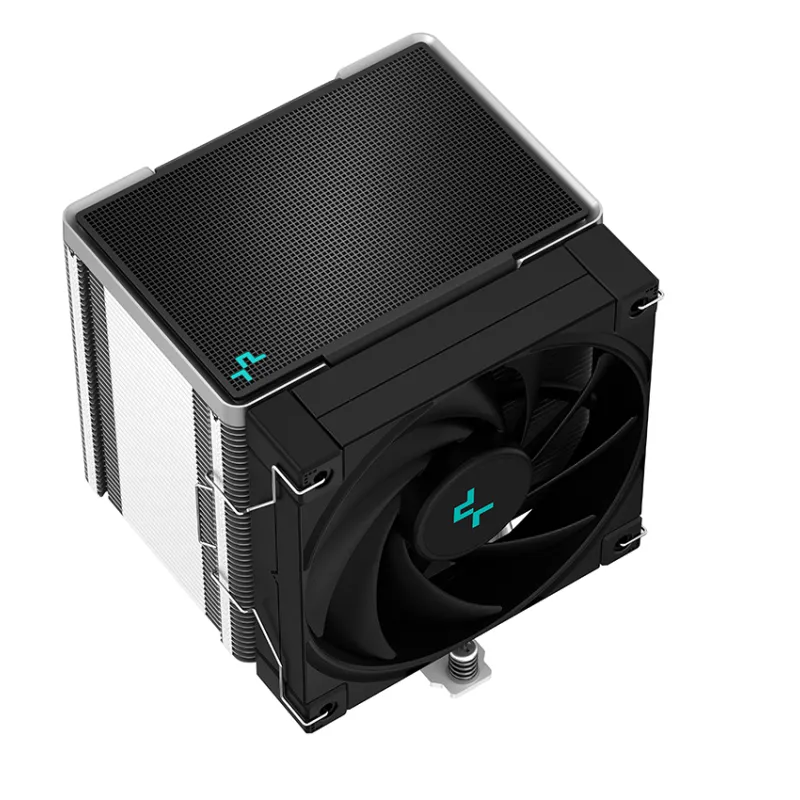

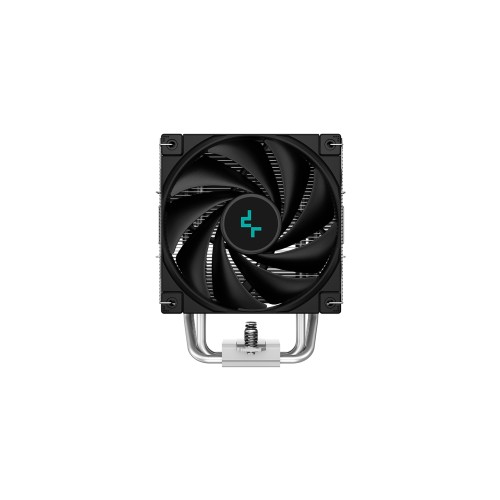

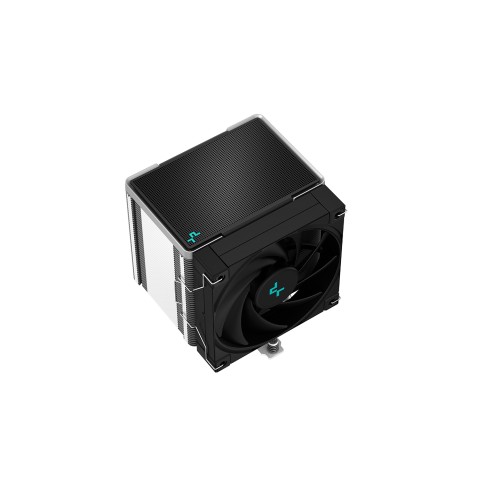

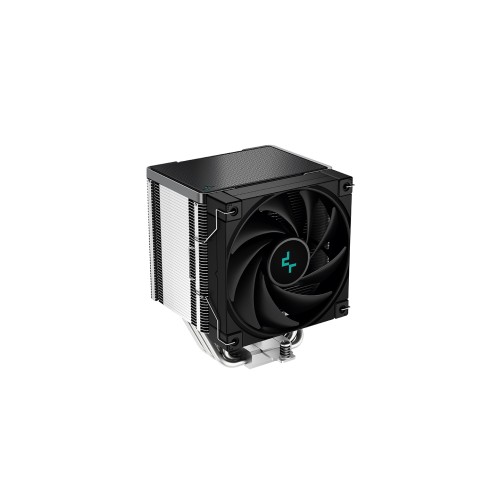

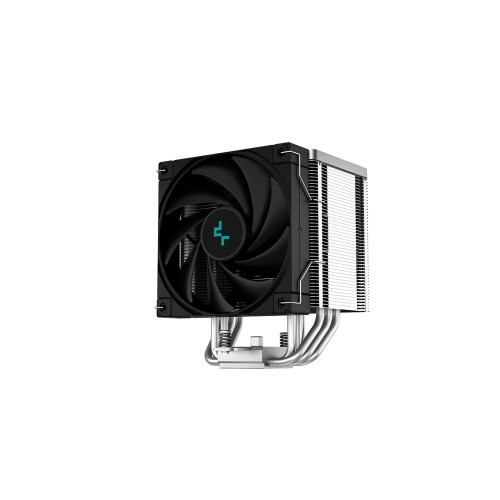

DeepCool AK500 High-Performance Single Tower CPU Cooler
Key Features
- MPN: R-AK500-BKNNMT-G
- Fan Speed: 500~1850 RPM±10%
- Five advanced heat pipes

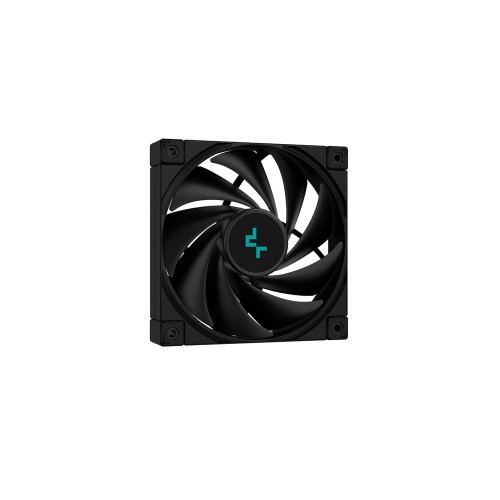

- 120mm FDB fan
- Compatible with Intel & AMD
Specification
| General | |
| Brand | DeepCool |
| Model | AK500 |
| MPN | R-AK500-BKNNMT-G |
| Type | Air cooler |
| Key Features | |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 68.99 CFM |
| Noise | ≤31.5 dB(A) |
| Air Pressure | 2.19 mmAq |
| Connector | 4-pin PWM |
| Supported Sockets | |
| AMD | AM5/AM4 |
| Intel | LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 |
| Physical Specification | |
| Weight | 1040g |
| Dimension | Product: 127×117×158 mm(L×W×H) Heatsink: 127×90×158 mm(L×W×H) Heatpipe: Ø6 mm×5 pcs Fan: 120×120×25 mm(L×W×H) |
| Warranty Information | |
| Warranty | 03 year |
Description

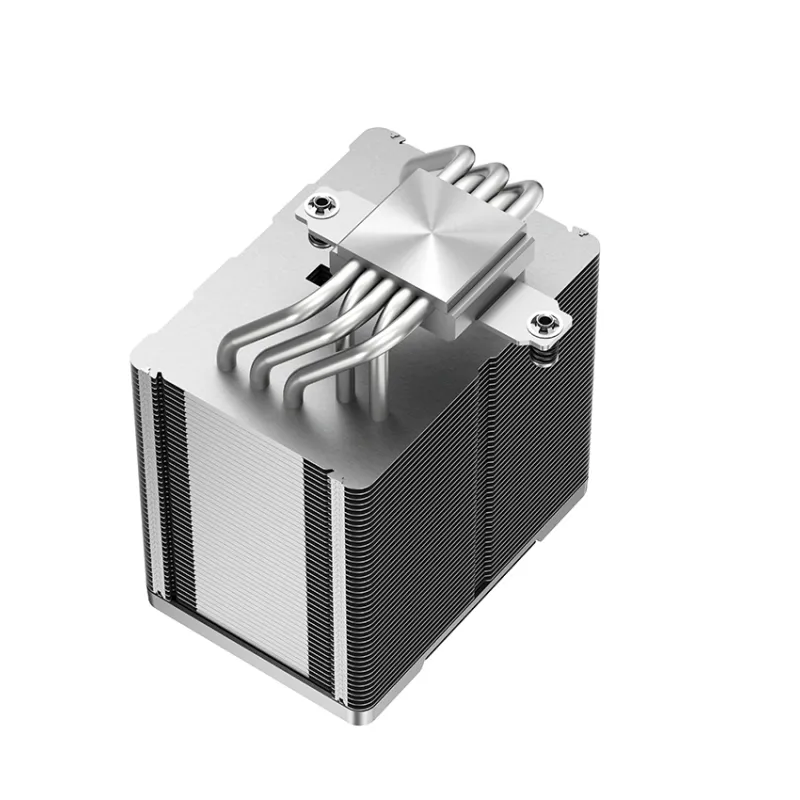

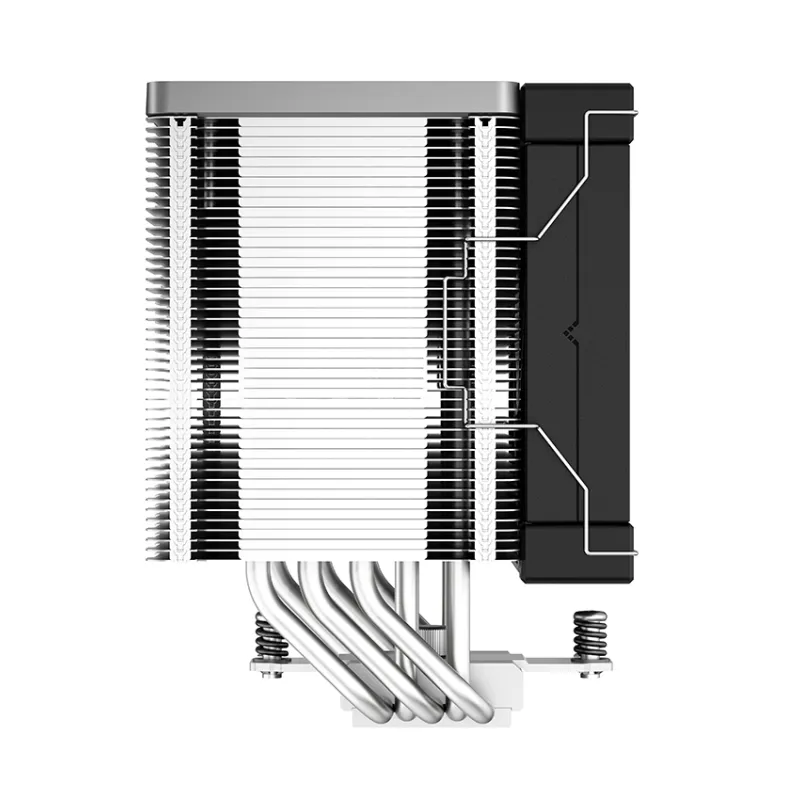

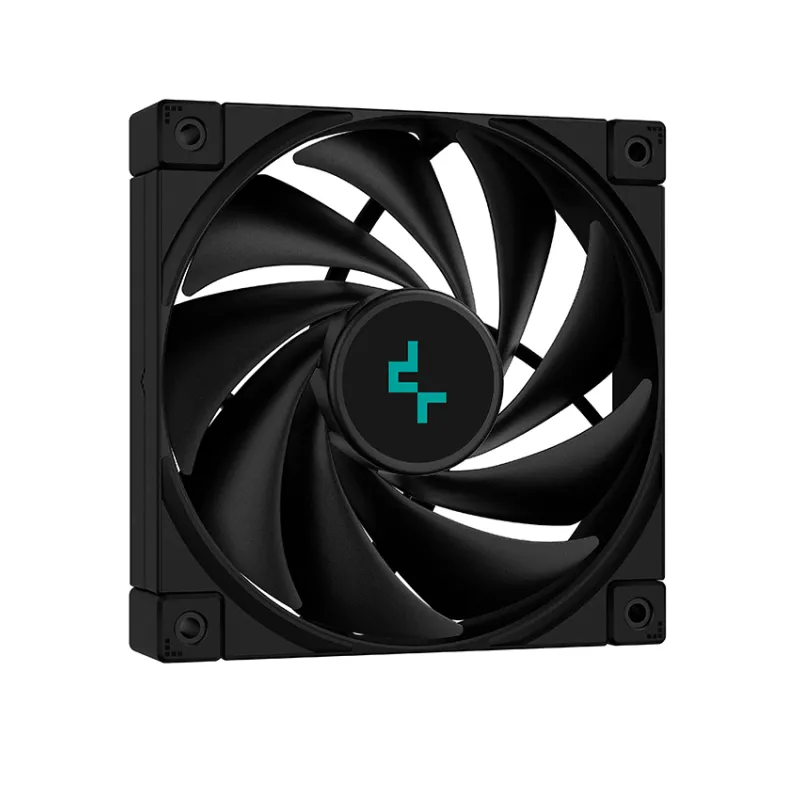

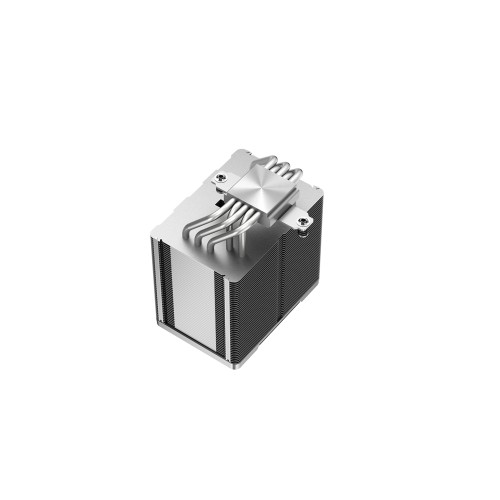

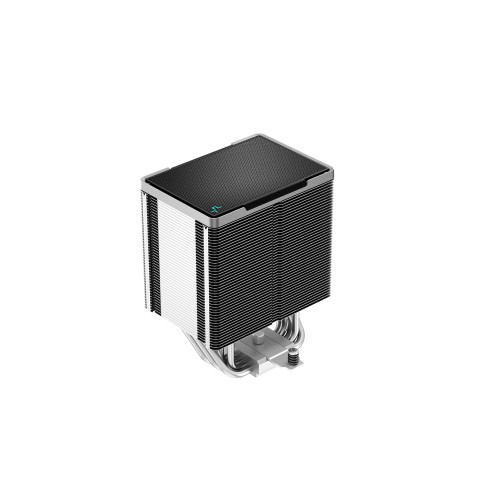

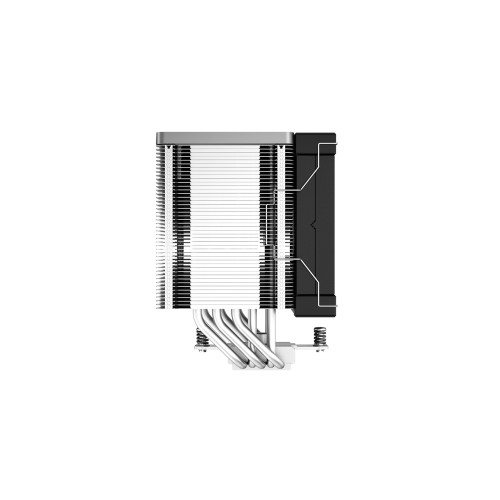

The DeepCool AK500 is a premium single-tower air cooler built to deliver high thermal performance for modern high-end CPUs. It features a robust heatsink with five Ø6 mm copper heat pipes that efficiently transfer heat away from the processor to the large fin array. Its 120 mm Fluid Dynamic Bearing (FDB) PWM fan delivers strong airflow (up to ~68.99 CFM) and static pressure (~2.19 mmAq) while operating quietly—with noise peaking around 31.5 dB(A) under full load, and significantly less when using the included low-speed adapter. The cooler supports a broad range of Intel and AMD sockets (including Intel LGA 1700/1200/etc., AMD AM4/AM5), making it versatile for many systems. The heatsink’s design is offset and angled to give good clearance for tall RAM modules, particularly in quad-channel setups. Also, its build is substantial (≈ 1.04 kg net weight), making it sturdy and capable. For demanding tasks—high load, gaming, streaming, or otherwise—the AK500 offers solid thermal margin, handling up to ~240W heat dissipation power.
