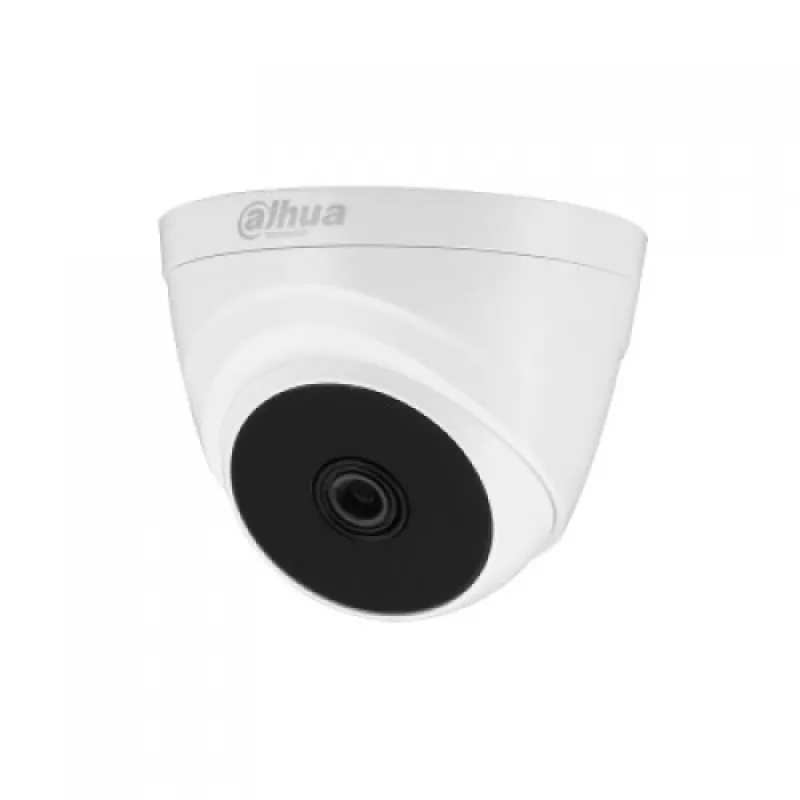

Dahua HAC-T1A51 5MP HDCVI IR Eyeball Camera
Key Features
- 3.6mm fixed lens (2.8mm, 6mm optional)
- Max. 20fps@5MP, DC12V
- HD and SD output switchable
- Max. IR length 20m, Smart IR
Specification
search
| General | |
| Brand | Dahua |
| Model | Dahua HAC-T1A51 |
| Camera Feature | |
| Casing | Plastic |
| Electronic Shutter Speed | PAL: 1/25–1/100000 s NTSC: 1/30–1/100000 s |
| Focus Control | N/A |
| Illumination | 20 m (66 feet) |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pan & Tilt | Pan: 0° – 360° Tilt: 0° – 78° Rotation: 0° – 360° |
| S/N Ratio | More than 65 dB |
| Scanning System | Progressive |
| Image Sensor | 1/2.7″ CMOS |
| Lens | |
| Angle of View | 2.8 mm: 125° × 106° × 56° (diagonal × horizontal × vertical) 3.6 mm: 104° × 88° × 46° (diagonal × horizontal × vertical) |
| Close Focus Distance | 2.8 mm: 0.8 m (2.6 ft) 3.6 mm: 1.2 m (3.9 ft) |
| DORI Distance | Lens Detect Observe Recognize Identify 2.8mm 56.0 m 22.4 m 11.2 m 5.6 m (183.7 ft) (73.5 ft) (36.7 ft) (18.4 ft) 3.6mm 80 m 32 m 16 m 8 m (262.5 ft) (105.0 ft) (52.5 ft) (26.2 ft) |
| Focal Length | 3.6mm (2.8mm Optional) |
| Lens Type | Fixed lens / Fixed iris |
| Max Aperture | F2.0 |
| Power | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 2.7W (12V DC, IR on) |
| Video Features | |
| Day/Night | Auto (ICR) / Manual |
| Frame Rate | CVI: PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC:5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL:4M@25 fps; NTSC:4M@30 fps; TVI: PAL:4M@25 fps; NTSC:4M@30 fps; CVBS: 960H; |
| Noise Reduction | 2D |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080);960H (960 × 576/960 × 480) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Physical Specification | |
| Mount | M12 |
| Dimensions | φ85.4 mm × 68.8 mm (φ3.36 × 2.71″) |
| Weight | 0.09 kg (0.20 lb) |
| Warranty Information | |
| Warranty | 01 year |
Description
Dahua HAC-T1A51 5MP HDCVI IR Eyeball Camera features with Max. 20fps@5MP, HD and SD output switchable, 3.6mm fixed lens (2.8mm, 6mm optional), Max. IR length 20m, Smart IR and DC12V. Here the camera is features with 1/2.7" CMOS Image Sensor, 2592(H)×1944(V), 5MP Effective Pixels, Progressive Scanning System, PAL: 1/25~1/100000s and NTSC: 1/30~1/100000s Electronic Shutter Speed, 0.04Lux/F2.0, 30IRE, 0Lux IR on Minimum Illumination, More than 65dB S/N Ratio, Up to 20m (66feet) IR Distance and Auto / Manual IR On/Off Control system. In this IR camera, It's lens is Fixed lens / Fixed iris lens with Board-in Mount Type, 3.6mm (2.8mm, 6mm Optional) Focal Length, F1.85 Max Aperture, H: 77.5° (93°, 49°) and v: 56.5° (68°, 37°) viewing angle with 11400mm (800mm, 2500mm) and 55.12'' (31.50″, 98.43'') Close Focus Distance. It is also comes with Pan: 0° ~ 360°, Tilt: 0° ~ 78° and Rotation: 0° ~ 360°. This IR bulllet camera has 5MP (2592×1944) Resolution, 20fps@5MP, 25/30fps@4MP, 25/30@1080P Frame Rate, 1-channel BNC high definition video output / CVBS video output (Can switch) Video Output, Auto (ICR) / Manual Day/Night, Multi-language OSD Menu, BLC / HLC / DWDR Mode, DWDR, AGC Control, 2D Noise Reduction, Auto / Manual White Balance and Smart IR. This stylish IR Eyeball camera comes with 01 year warranty.
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding Dahua HAC-T1A51 5MP HDCVI IR Eyeball Camera
What is the price of Dahua HAC-T1A51 5MP HDCVI IR Eyeball Camera in Bangladesh? expand_more
The latest price of Dahua HAC-T1A51 5MP HDCVI IR Eyeball Camera in Bangladesh is 2,500৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is Dahua HAC-T1A51 5MP HDCVI IR Eyeball Camera currently in stock at Skyland? expand_more
Yes, Dahua HAC-T1A51 5MP HDCVI IR Eyeball Camera is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with Dahua HAC-T1A51 5MP HDCVI IR Eyeball Camera? expand_more
Dahua HAC-T1A51 5MP HDCVI IR Eyeball Camera comes with 01 year warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
