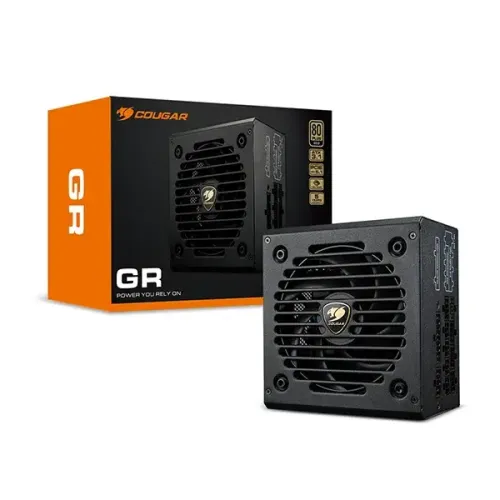

Cougar GR850 850W 80+ Gold Full-Modular Power Supply
Key Features
- Output: 850W
- 80 PLUS Gold Certified
- Up to 91% efficiency
- ATX 3.1 and PCIe 5.1 Compatible
Specification
| General | |
| Brand | Cougar |
| Model | GR850 |
| MPN | CGR GDN-850 |
| Key Features | |
| Certification | 80+ Gold |
| Efficiency (Approx.) | Up to 91% efficiency |
| Fan Size | 120mm HDB fan |
| Others | UVP (Under Voltage Protection) OVP (Over Voltage Protection) SCP (Short-Circuit Protection) OPP (Over Power Protection) OCP (Overcurrent Protection) OTP (Over Temperature Protection) |
| Connector | |
| CPU | 8(4+4) pin x 2 |
| Main Power | 24(20+4) pin x 1 |
| Molex | 2 |
| PCI-E | 8(6+2) pin x 3 |
| SATA | 6 |
| Input | |
| Voltage | 100-240V |
| Output | |
| AC Input | AC100-240V~ 50-60Hz 10A Max |
| Modular Type | Full Modular |
| Total Power | 850W |
| Warranty Information | |
| Manufacturing Warranty | 05 Years Warranty |
Description
The Cougar GR850 850W 80+ Gold Full-Modular Power Supply is built for stable and efficient performance. With 80+ Gold certification and up to 91% efficiency, it reduces energy loss and keeps systems running smoothly. A 120mm HDB fan ensures effective cooling and quiet operation.

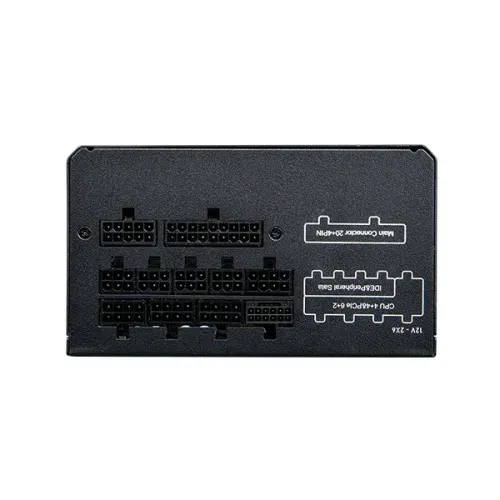

Cougar GR850's full modular design allows clean cable management and better airflow. Delivering 850W total output, it supports modern hardware with connectors including 24(20+4) pin main power, dual 8(4+4) pin CPU, three PCI-E 8(6+2) pin, six SATA, and two Molex.
Safety features include UVP, OVP, SCP, OPP, OCP, and OTP protections, keeping components secure from electrical risks. With AC input support from 100–240V, the Cougar GR850 adapts to global standards and provides reliable power for high-performance systems.
