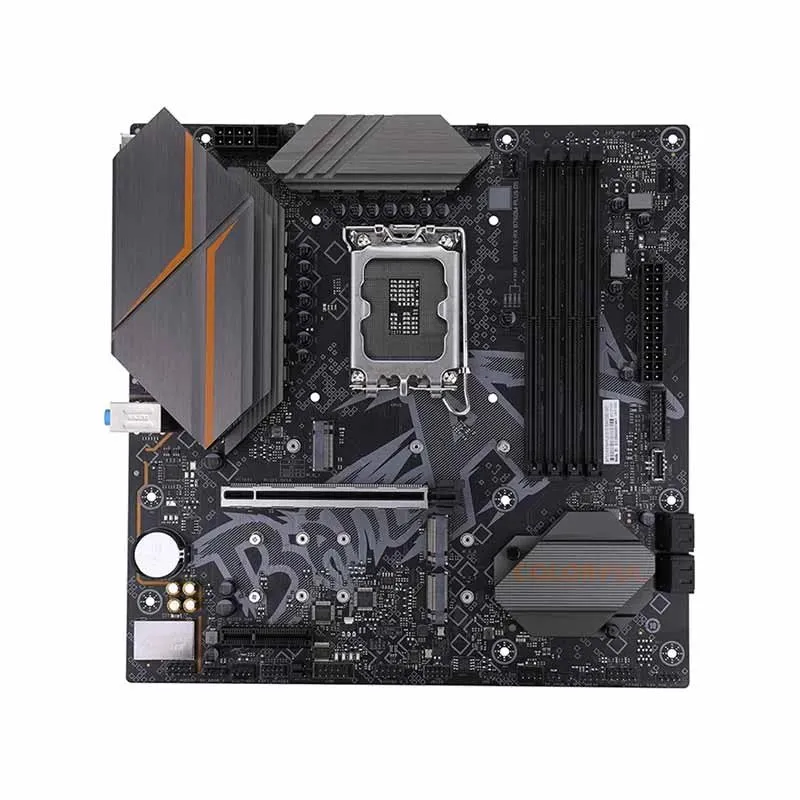

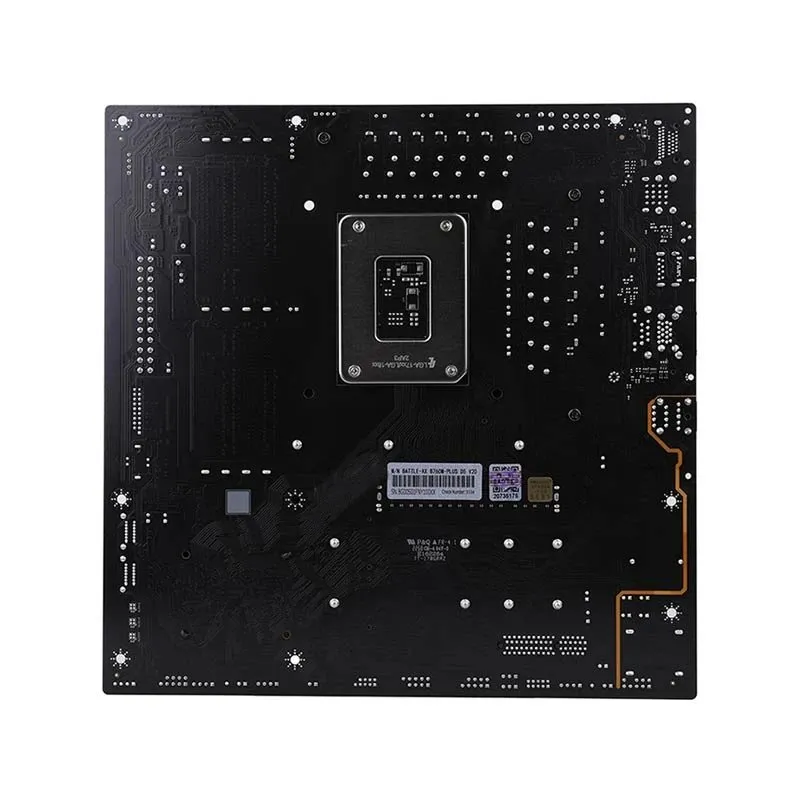

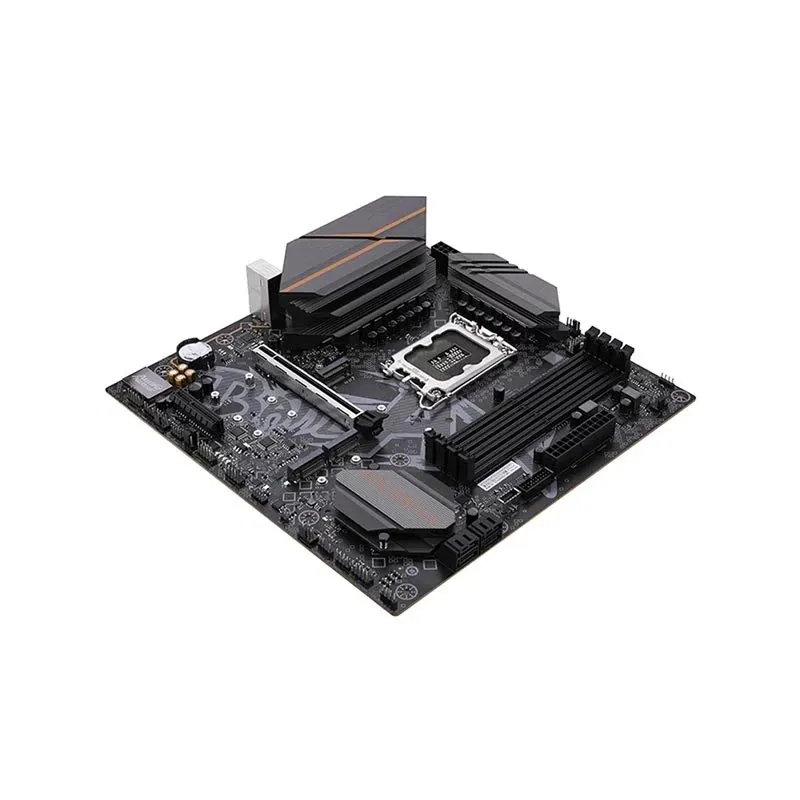

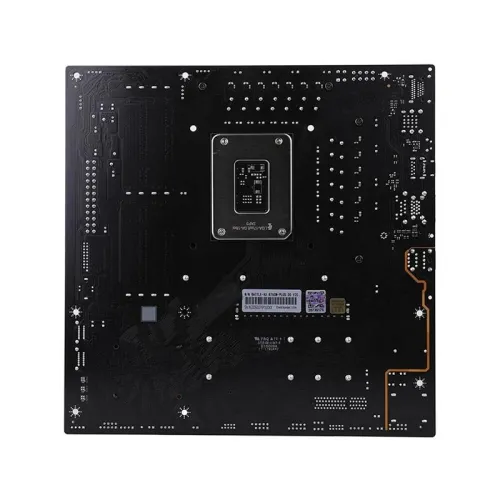

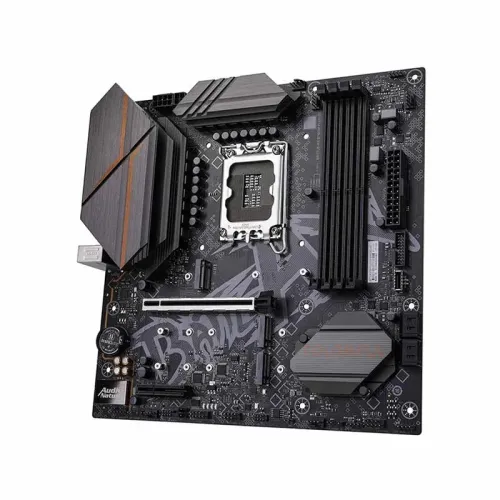

Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard

Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
0 reviews - Write a review
  • Price: 17,900৳
  • Regular Price: 20,350৳
  • Stock : In Stock
  • Brand: Colorful
  • Model: BATTLE-AX B760M-PLUS D5 V20

    • Key Features

    • Model: BATTLE-AX B760M-PLUS D5 V20
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR5, Max 192GB 6800(OC)
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: RTL8125 2.5Gbit network card
    Add to Cart
    Buy Now
    Add to Wish List Add to Compare

    অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

    Specification

    Basic Information
    Supported CPUSupport the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
    ChipsetIntel B760
    BIOS128M UEFI, supporting multiple languages
    Form FactorM-ATX
    245mm x 245mm
    Audio5.1 Channel sound card
    Expansion Slots
    PCI1xPCIe 5.0 x16 slot
    1xPCIe 3.0 x4 slot
    Memory
    TypeDDR5
    Slots4
    Supported Memory- DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
    - Intel is supported Extreme Memory Profile (XMP) memory technology
    - supports dual channel memory technology
    Maximum Memoryup to 192 GB of memory (a single socket can support up to 48 GB of memory)
    Graphics
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI 2.0 interface, Up to 4K 60Hz resolution
    1 x DP 1.2 interface, supporting up to 4K 60Hz resolution
    Connector & Ports
    HDMI1x HDMI
    Display Port (s)1x DisplayPort
    LAN Port (s)RTL8125 2.5Gbit network card
    Supported StorageA total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported,
    - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
    - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
    - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
    RAIDSupport the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

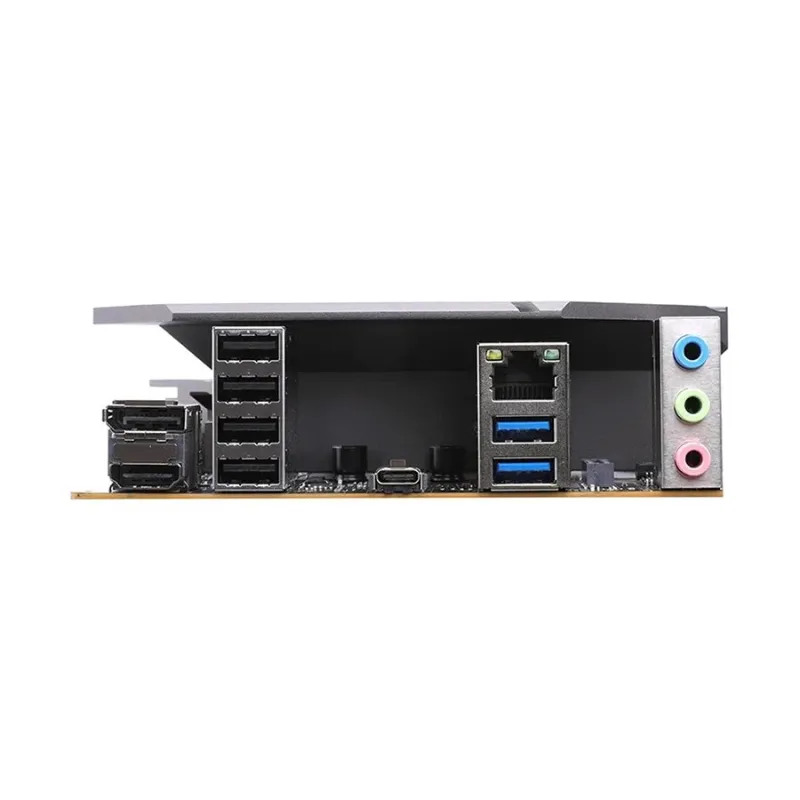

    Internal I/O PortsRear I/O interface:
    - 4 USB 2.0 interfaces
    - 2 USB 3.2 Gen 1 Type-A interfaces
    - 1 USB 3.2 Gen 2 Type-C interface
    - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution
    - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution
    - 1 2.5G network interface
    - 3 audio interfaces (audio input/audio output/microphone)
    Onboard device interface:
    - 1 CPU fan pin
    - 3 system fan pins
    - 1 water-cooled pump pin
    - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
    - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces
    - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface
    - 2 5V 3-pin ARGB pins
    - 2 12V 4-pin RGB pins
    - 1 Front audio pin
    - 1 Front panel pin
    - 1 speaker pin
    - 1 clear CMOS jumper
    - 1 serial port pin
    - 1 BIOS burner pin
    - 1 diagnostic card pin
    - 1 ME write protection jumper
    - 1 RGB lamp efficiency control jumper
    Warranty Information
    Manufacturing Warranty3 years


    Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard

    The colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard is a high-performance motherboard ideal for gamers. This motherboard supports 14th/13th/12th Gen Intel Processors (LGA1700) and has 4x DDR5 RAM slots with a maximum capacity of 192GB 6800(OC). With 1x HDMI and 1x DisplayPort, you may experience excellent visuals output. The motherboard also has an RTL8125 2.5Gbit network card for fast and dependable internet access. The BATTLE-AX series' specialized heat dissipation armor and 12+1+1 phase reinforced power supply assure efficient cooling and consistent power delivery. It has three PCIe 4.0 x4 M slots.2 SSD slots, one USB 3.2 Gen 2 Type-C port, and one USB 3.2 Gen 1 Type-A portA high-speed back interface allows for smooth data transfer. This motherboard provides a variety of networking choices thanks to its Realtek 2.5G high-speed wired network card and CNVI WiFi/BT socket. You may tune the lighting effects of the radiator, cooling fan, and RAM with support for the iGame Center light efficiency control software. The motherboard also has six protective technologies for increased stability and has been rigorously tested to assure high quality. The colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard will enhance your gaming experience.
