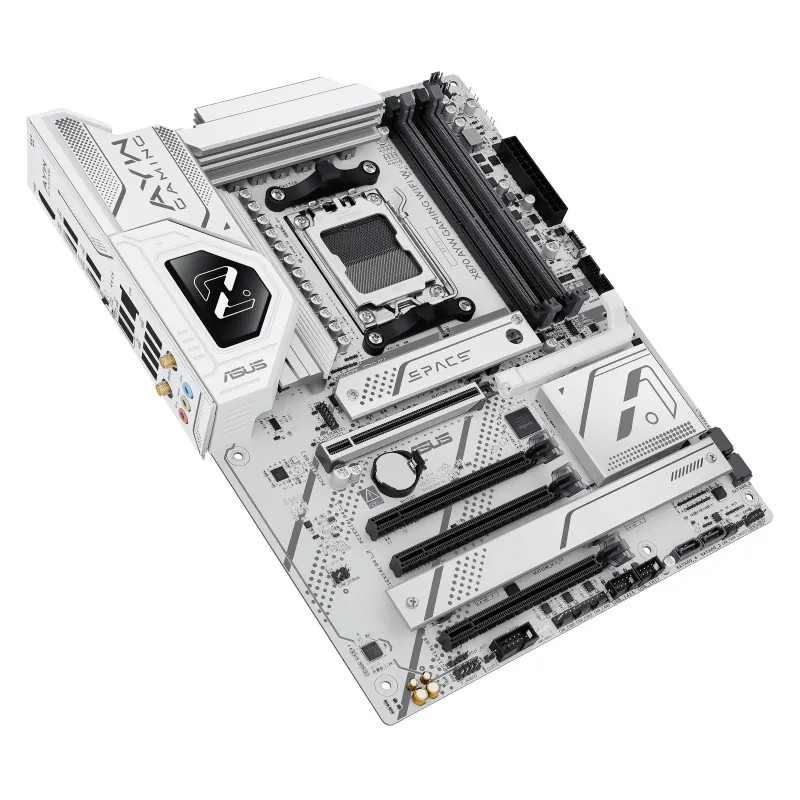

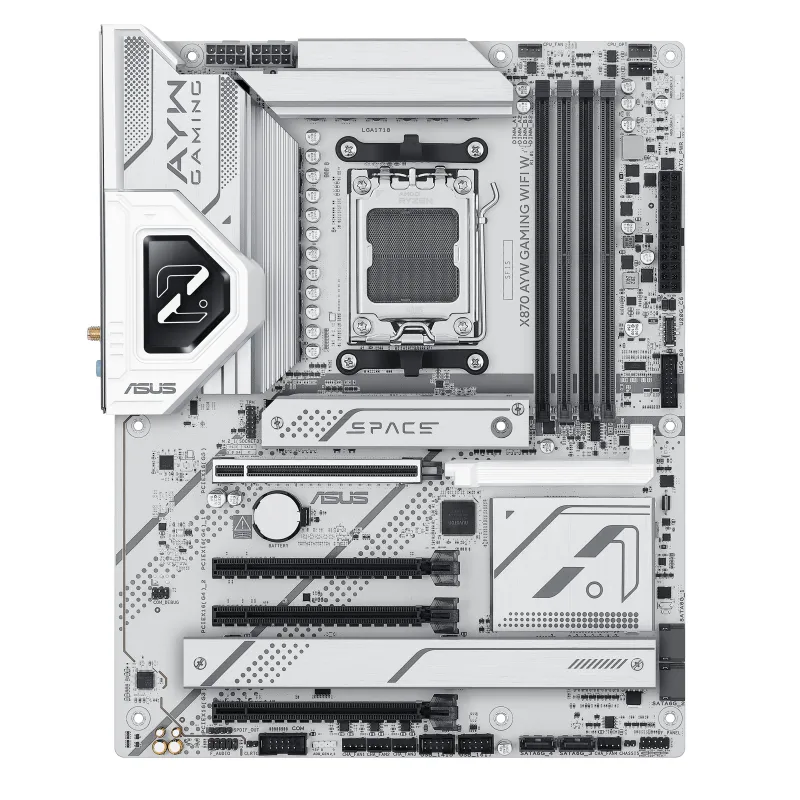

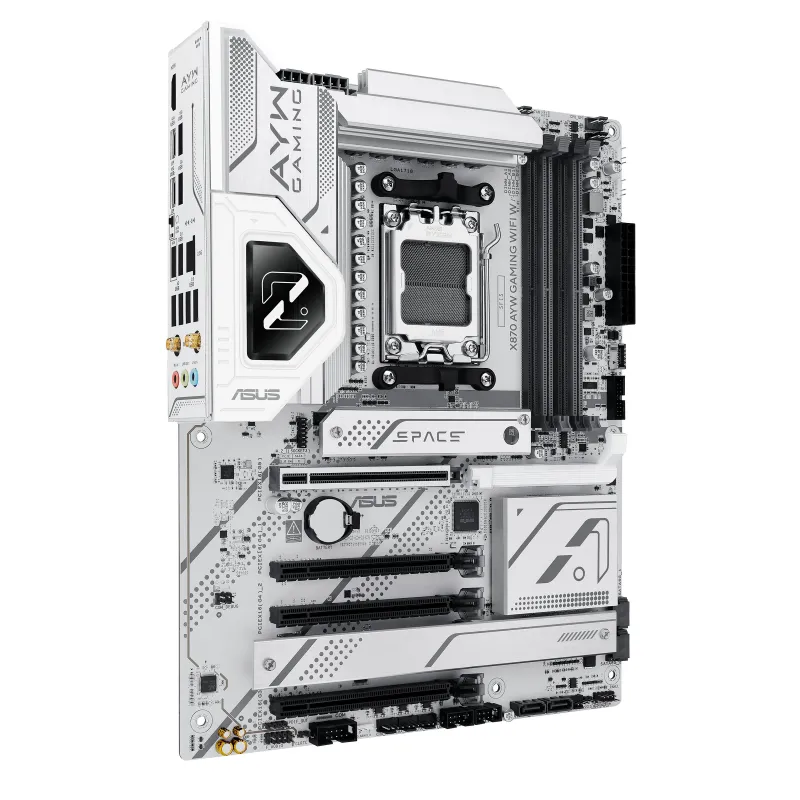

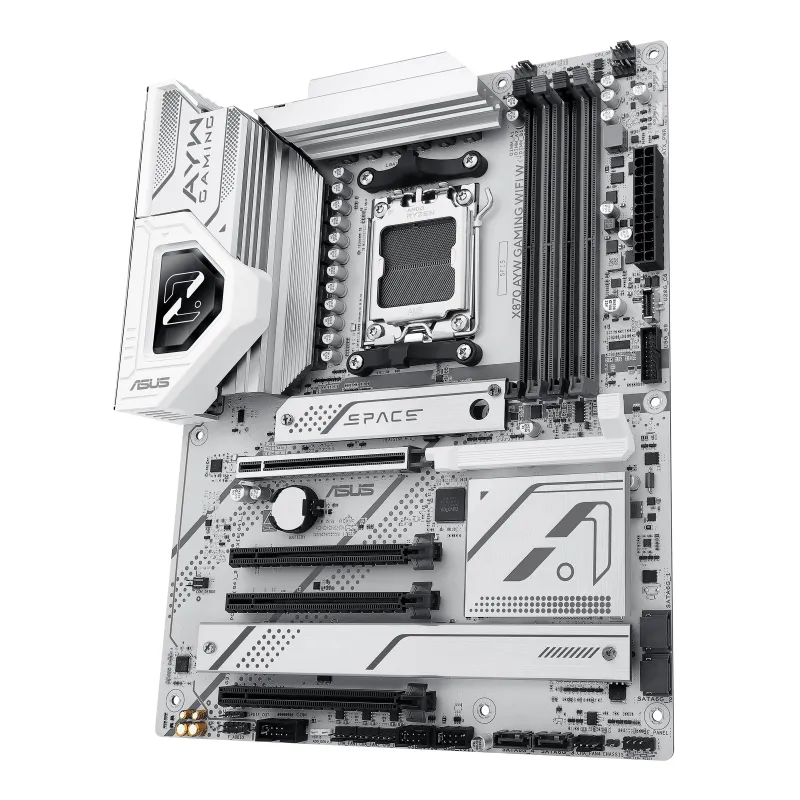

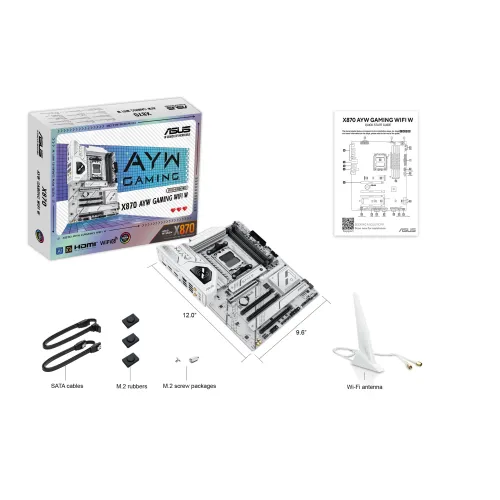

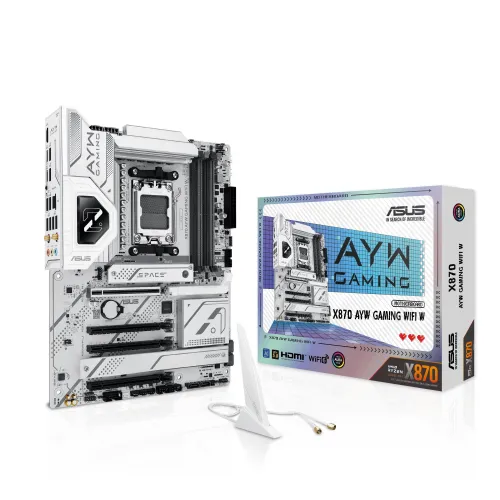

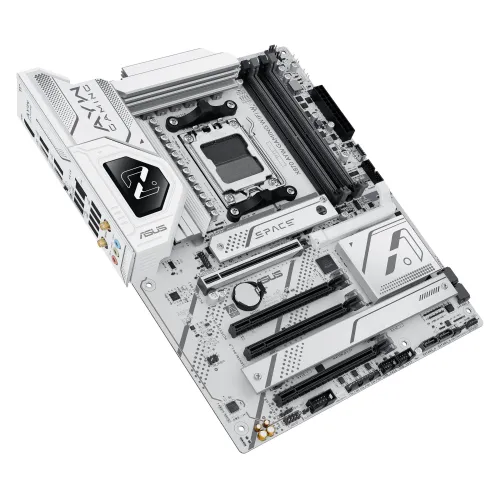

Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard

Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Save: 4,110৳
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard
0 reviews • Write a review
  • Offer Price: 44,500৳
  • Regular Price: 48,610৳
  • Stock: In Stock
  • Brand: Asus
  • Model: X870 AYW GAMING WIFI W

Key Features

  • Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
  • Supported Memory: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
  • Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
  • Features: Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
View More Info

Payment Options

44,500৳48,610৳

Cash Discount Price

Online / Cash Payment
—/month

Regular Price: —

Compare Bank EMI Options
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

General
Brand Asus
Model X870 AYW GAMING WIFI W
Memory
Maximum Memory 256GB
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Type DDR5
Basic Information
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
BIOS 256 Mb Flash ROM, UEFI AMI BIOSc
Chipset AMD X870 Chipset
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Expansion Slots
M.2 Socket MD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
PCI AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode)
Graphics
Graphics 1 x HDMI port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. *** VGA resolution support depends on processors' or graphic cards' resolution.
Interface
HDMI 1x HDMI 2.1
Ports & Connector
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz
Internal I/O Ports Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
RAID AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required. * PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. ** Specifications vary by CPU types.
TPM (Trusted Platform Module) 1 x SPI TPM header (14-1 pin)

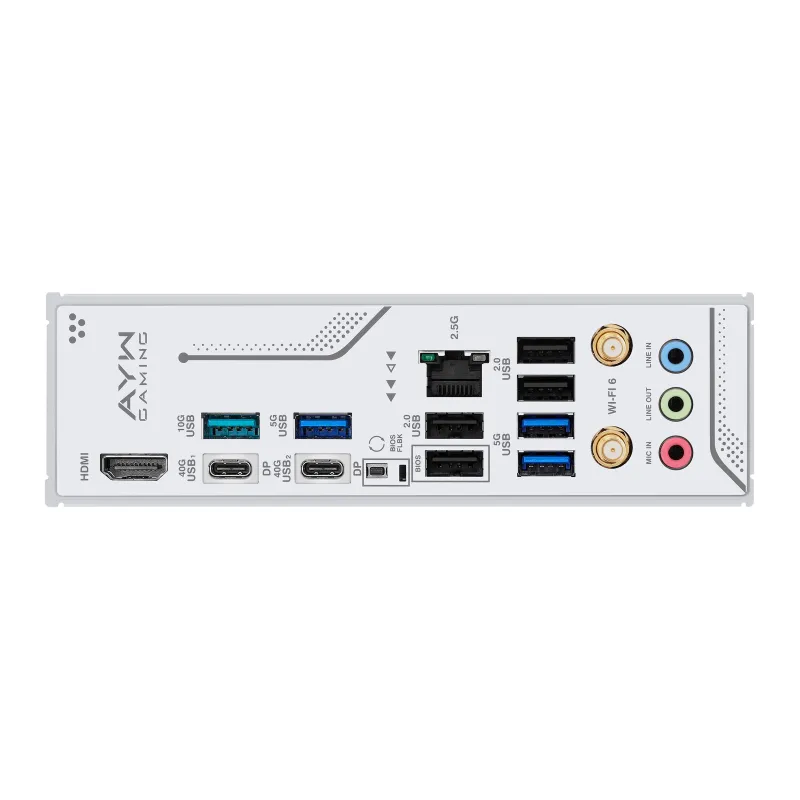

USB (s) Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

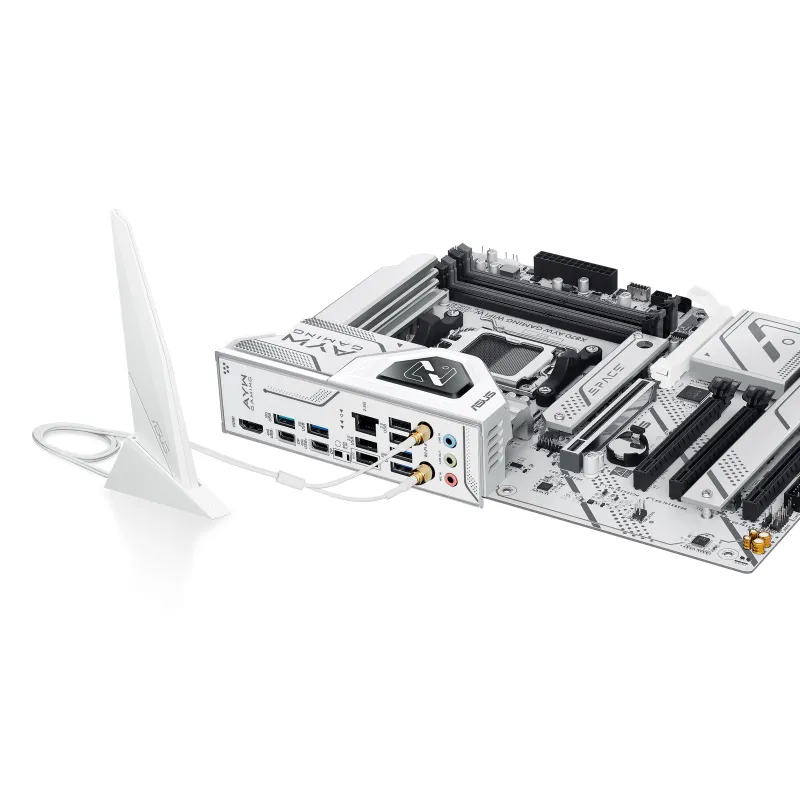

Wireless Communication module Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers
Warranty Information
Manufacturing Warranty 3 Years

Description

Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard

The Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard is a powerhouse platform engineered for high-end gaming and content creation. Built on the latest AMD X870 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket, delivering top-tier performance and future-ready features. This Asus X870 AYW GAMING WIFI W Motherboard supports up to 256GB of DDR5 RAM across four DIMM slots, with overclocking capabilities reaching 8000+ MT/s, along with ECC/Non-ECC support, dual-channel architecture, AMD EXPO, and ASUS AEMP profiles for enhanced memory tuning. For graphics, the Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard provides an HDMI 2.1 port and two USB4 Type-C ports supporting up to 4K@60Hz output, depending on CPU specifications. Expansion options include a PCIe 5.0 x16 slot for Ryzen 9000/7000 CPUs, additional PCIe 4.0 and 3.0 slots, and three M.2 slots (PCIe 5.0 & 4.0), along with four SATA 6Gb/s ports. RAID configurations are supported via AMD RAIDXpert2, including RAID 0/1/5/10 for Ryzen 9000 processors. This Asus X870 AYW GAMING WIFI W motherboard offers comprehensive connectivity, including 2 x USB4 (40Gbps), 10 rear USB ports, 7 front USB ports (with a USB 20Gbps Type-C supporting 30W PD fast-charging), and Realtek 2.5Gb Ethernet. Wireless features include Wi-Fi 6 with 2.4/5GHz support and Bluetooth 5.2. Audiophiles will appreciate the premium Realtek 7.1 Surround Sound High Definition Audio CODEC, which supports 24-bit/192kHz playback, audio shielding, and premium capacitors. Internally, the Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard features multiple fan headers, addressable RGB Gen 2 headers, SPI TPM, S/PDIF out, and front audio connectors. ASUS-exclusive features like Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-LEDs), 5X Protection III (DIGI+ VRM, SafeSlot, LANGuard), and pre-mounted I/O shield enhance durability and ease of installation. The motherboard supports advanced cooling via VRM and M.2 heatsinks, while Fan Xpert 4 offers AI-powered thermal control. With Aura Sync RGB, BIOS Flashback, and bundled software like Armoury Crate, Aura Creator, ASUS DriverHub, and more, the Asus X870 AYW GAMING WIFI W Motherboard is the ultimate choice for gamers and PC enthusiasts seeking performance, reliability, and customization.

Write a review

Please login or register to review

What is the price of Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard in Bangladesh?

The latest price of Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard in Bangladesh is 44,500৳. You can buy the Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard at the best price from our website or visit any of our showrooms.
