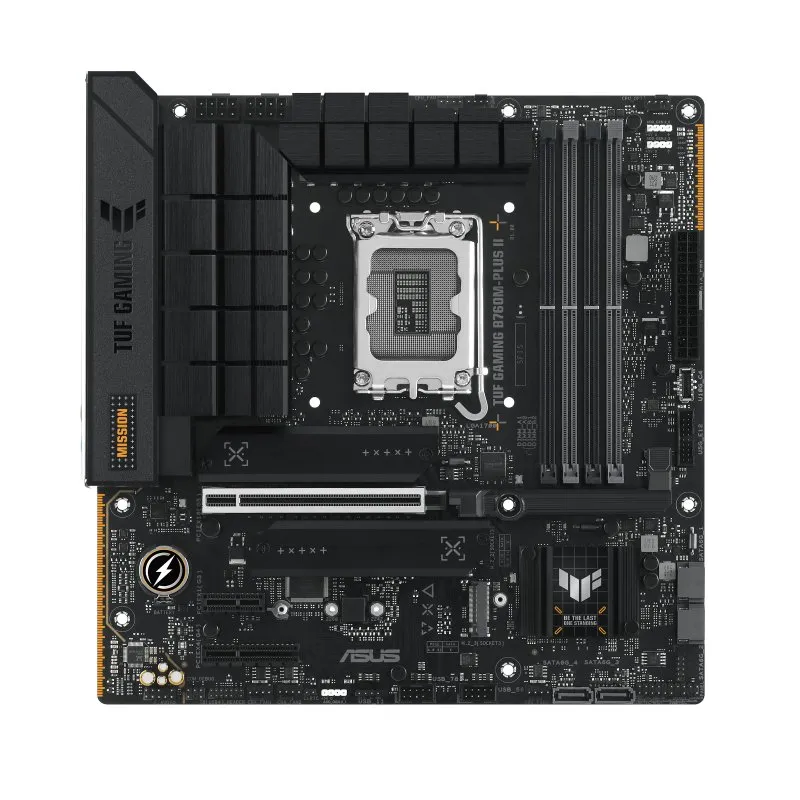

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

The ASUS TUF GAMING B760M-PLUS II is a Micro-ATX motherboard that brings together rugged TUF Gaming reliability with cutting-edge features. Designed for Intel’s 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, it leverages the Intel B760 chipset and LGA1700 socket to support high-end computing and gaming demands.

Supporting up to 192GB of DDR5 memory across 4 DIMM slots, this board pushes performance further with speeds up to 7800+ MT/s (OC). ASUS’s AEMP II and Intel XMP memory profiles ensure you can fine-tune and maximize RAM stability and speed.

Visual output is top-tier with DisplayPort 1.4 and HDMI 2.1, both delivering 4K resolution at 60Hz—ideal for creators and gamers seeking crystal-clear visuals. The motherboard features robust expansion with:

• 1 x PCIe 5.0 x16 (CPU)

• 1 x PCIe 4.0 x4

• 1 x PCIe 3.0 x1
  ensuring ample bandwidth for GPUs and additional cards.

For storage, the board delivers blazing-fast performance with 3 x M.2 slots (including PCIe Gen 4 support) and 4 x SATA 6Gb/s ports, with Intel Rapid Storage RAID 0/1/5/10 support for reliability and speed.

Networking is powered by Realtek 2.5Gb Ethernet, fortified with TUF LANGuard to protect against surges and ensure stable, low-latency connections for gaming or streaming.

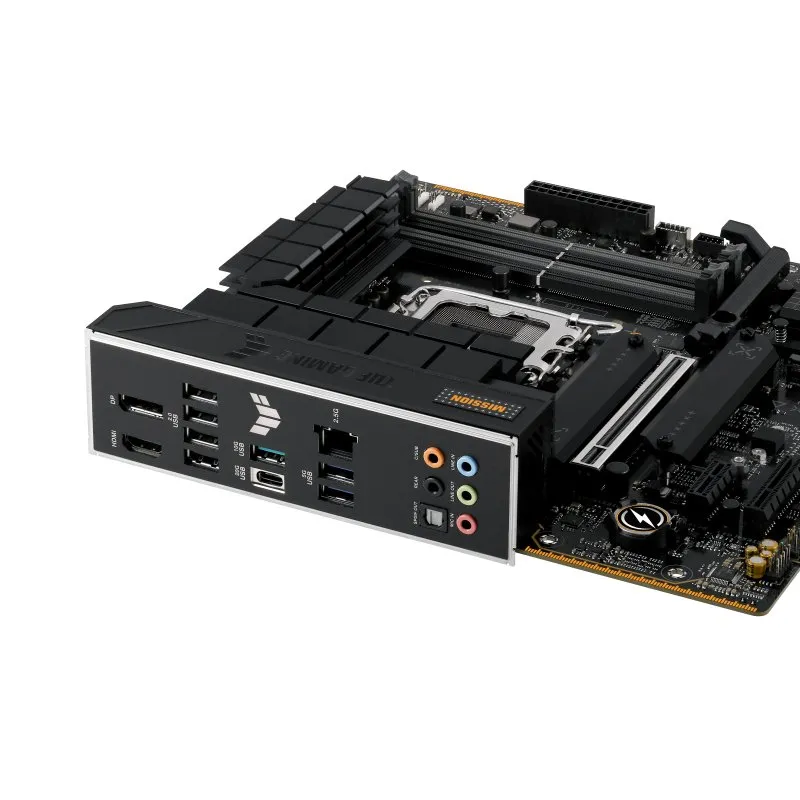

The rear I/O panel is loaded with connectivity, including:

• 1 x USB 20Gbps Type-C

• 1 x USB 10Gbps Type-A

• 2 x USB 5Gbps Type-A

• 4 x USB 2.0

The front panel supports up to 8 USB ports, including USB 3.2 Gen 1, Type-C, and legacy USB 2.0 headers.

Audio gets premium treatment with Realtek 7.1 surround sound, audio shielding, high-grade capacitors, optical S/PDIF out, and 24-bit/192kHz high-resolution playback.

Cooling and durability are top priorities:

• VRM & M.2 heatsinks

• AIO pump header

• Multiple 4-pin fan headers

• Fan Xpert 2+
  These ensure thermal control under heavy load while protecting long-term component health.

ASUS’s Q-Design features (M.2 Q-Latch, PCIe Q-Release, Q-DIMM, Q-LED) make installation and troubleshooting faster and easier. The board is also equipped with Aura Sync RGB headers (Gen 2) for full lighting customization, a pre-mounted I/O shield, SafeSlot Core+, ProCool connectors, and AI Noise Cancelation for voice clarity during communication.

Compatible with Windows 11 and Windows 10, the ASUS TUF GAMING B760M-PLUS II is an outstanding choice for gamers, builders, and professionals seeking performance, reliability, and flexibility in a Micro-ATX form factor.

Key Features:

•  Intel 14th/13th/12th Gen CPU support (LGA1700)

•  DDR5 up to 192GB, 7800+ MT/s (OC)

•  PCIe 5.0 x16 & triple M.2 slots (RAID ready)

•  Realtek 2.5Gb LAN with TUF LANGuard

•  USB 20Gbps Type-C, HDMI 2.1 & DP 1.4

•  Realtek 7.1 Surround Sound, S/PDIF Out

•  TUF Durability: Q-Design, SafeSlot, Aura Sync

ASUS TUF GAMING B760M-PLUS II – Tough enough for battle. Smart enough for everything else.
