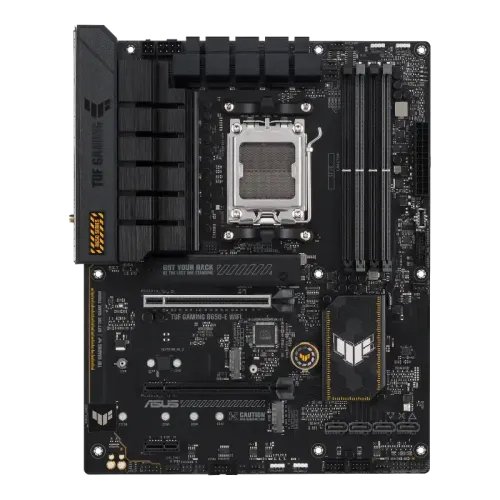

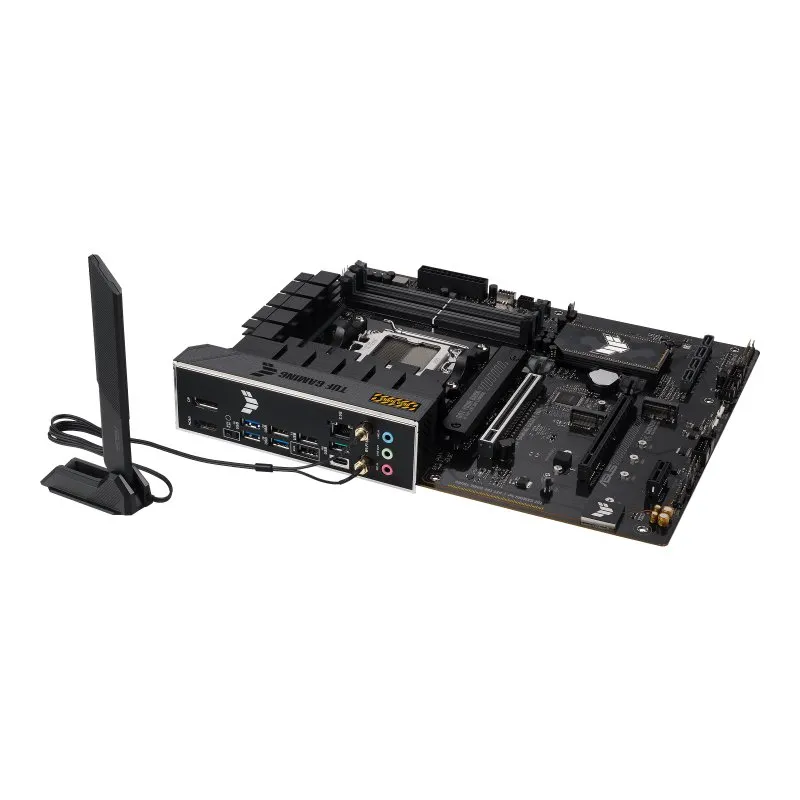

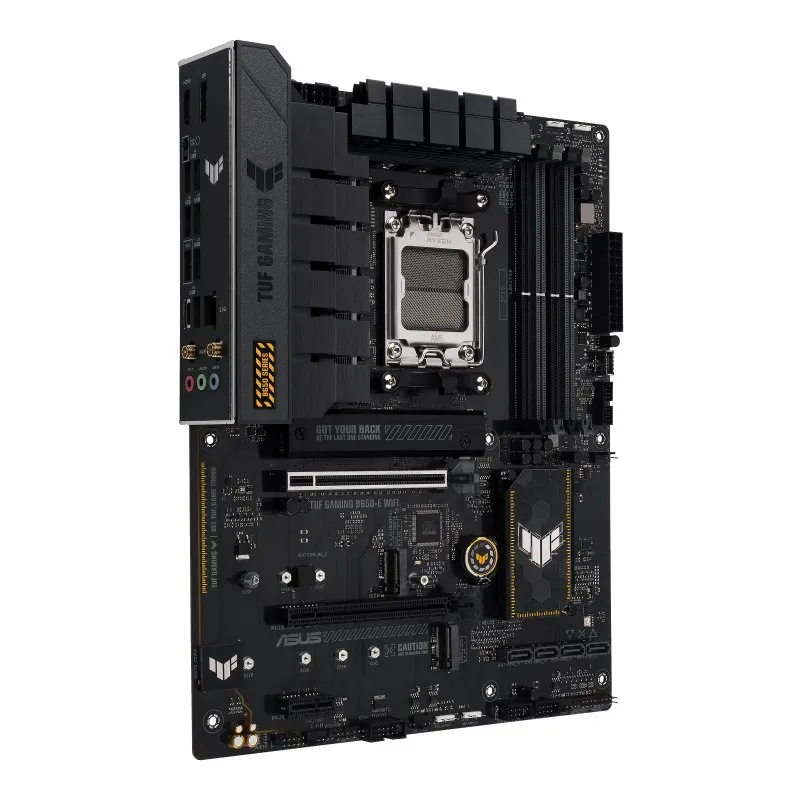

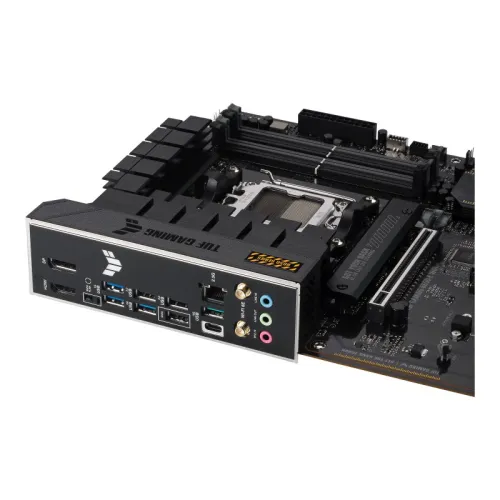

Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
Key Features
- Supported CPU: Ryzen 9000, 8000 & 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 192GB, 8000+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 1 x 2.5Gb Ethernet, Wi-Fi 6E
Specification
| General | |
| Brand | Asus |
| Model | TUF GAMING B650-E WIFI |
| Memory | |
| Type | DDR5 |
| Slots | 4 DIMMs |
| Maximum Memory | 192GB |
| Supported Memory | 8000+ OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II |
| Graphics | |
| Graphics | * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD B650 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Expansion Slots | |
| M.2 Socket | Supports 3 x M.2 slots |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode) 1 x PCIe 4.0/3.0 x1 slots |
| Ports & Connector | |
| Audio | 5 x Audio jacks |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1x HDMI |

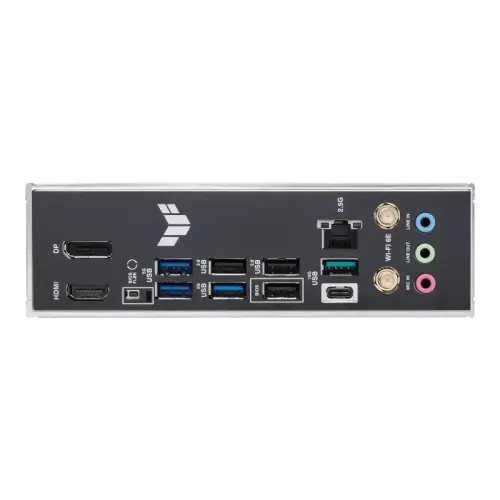

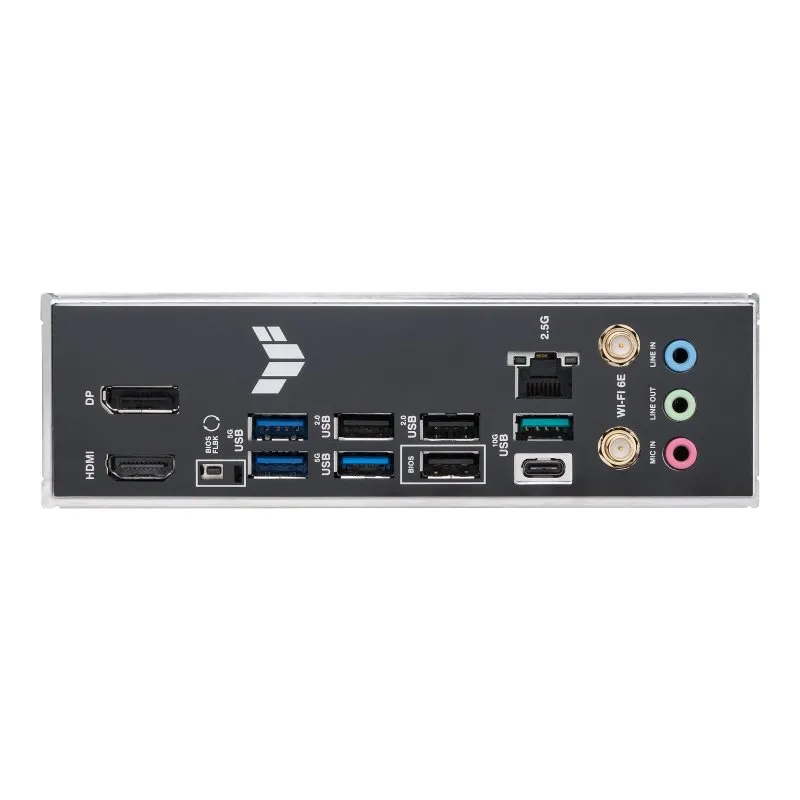

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Other Features | |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |
Description
Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
The Asus TUF GAMING B650-E WIFI ATX Motherboard is a powerhouse designed for elite gamers, creators, and performance-focused users. Built around the robust AMD B650 chipset, this board supports the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, delivering lightning-fast computing and future-ready expandability for next-gen gaming and AI applications.
AM5 Platform with High-Speed DDR5 Support
Harness the performance of AM5 socket CPUs and push boundaries with DDR5 RAM support up to 192GB across 4 DIMM slots. Reach speeds of 8000+ MHz (OC) for ultra-responsive multitasking, game loading, and professional workloads.
-
CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series
-
Memory: 4x DDR5 DIMM, up to 192GB @ 8000+ MT/s (OC)
-
Form Factor: ATX
Advanced Expansion & Ultra-Fast Storage
This motherboard features PCIe 5.0 for graphics and M.2 storage, allowing gamers and professionals to utilize the latest GPUs and Gen 5 SSDs for extreme speed and performance.
-
Expansion Slots:
-
1x PCIe 5.0 x16 (SafeSlot Core+)
-
1x PCIe 4.0 x16
-
1x PCIe 4.0 x1
-
-
M.2 Slots:
-
1x PCIe 5.0 x4
-
2x PCIe 4.0 x4
-
-
SATA: 4x SATA 6Gb/s ports
Next-Gen Networking with Wi-Fi 6E & 2.5Gb LAN
Whether you’re online gaming or streaming 4K content, this board ensures flawless connectivity with Wi-Fi 6E and Realtek 2.5Gb Ethernet. Experience low-latency performance and superior bandwidth, wired or wireless.
Intelligent Thermal Design
Stay cool under pressure with a full-scale VRM heatsink, M.2 heatsinks, and multiple hybrid fan headers. ASUS Fan Xpert 2+ software gives users complete control over cooling profiles for silent or high-performance scenarios.
TUF Durability & Military-Grade Reliability
Built to last, the TUF GAMING B650-E WIFI includes military-grade components, 8+2 DrMOS power stages, stainless steel I/O, TUF LANGuard, and 5X Protection III—delivering unwavering reliability in all conditions.
It’s also subjected to strict 1,000+ hour testing for temperature, shock, and drop resistance to ensure industrial-level durability.
Gaming Features & Easy DIY
-
BIOS FlashBack™ for safe firmware updates
-
Q-LEDs for easy troubleshooting
-
M.2 Q-Latch for tool-free SSD installation
-
AI Noise Cancelation for crystal-clear communication
-
DTS Audio Processing for immersive sound
RGB Customization with Aura Sync
Light up your build with ASUS Aura Sync RGB, featuring Addressable Gen 2 headers and full support for synchronized lighting across compatible devices and peripherals.
Why Buy from SkylandBD?
-
100% Genuine Asus Product
-
Fast Delivery Across Bangladesh
-
Professional Build Consultation
-
3-Year Manufacturer Warranty
-
Ideal for Gamers, Creators & AI-Powered Builds
The Asus TUF GAMING B650-E WIFI DDR5 Motherboard offers unmatched durability, connectivity, and raw performance—perfect for building a future-proof PC that excels in gaming, content creation, or advanced AI workloads.
