ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard
Key Features
- Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
- Supported Memory: 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)
- Graphics Output: 2 x DisplayPort, 1 x HDMI port
- Features: 1 x Realtek 2.5Gb Ethernet
Specification
| General | |
| Brand | ASUS |
| Model | TUF GAMING A620M-PLUS |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Maximum Memory | 128GB |
| Supported Memory | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II |
| Graphics | |
| Graphics | 2 x DisplayPort** 1 x HDMI port*** ** Support max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD A620 Chipset |
| Form Factor | Micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors |
| Expansion Slots | |
| PCI | AMD Ryzen 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot AMD A620 Chipset 2 x PCIe 3.0 x1 slots |

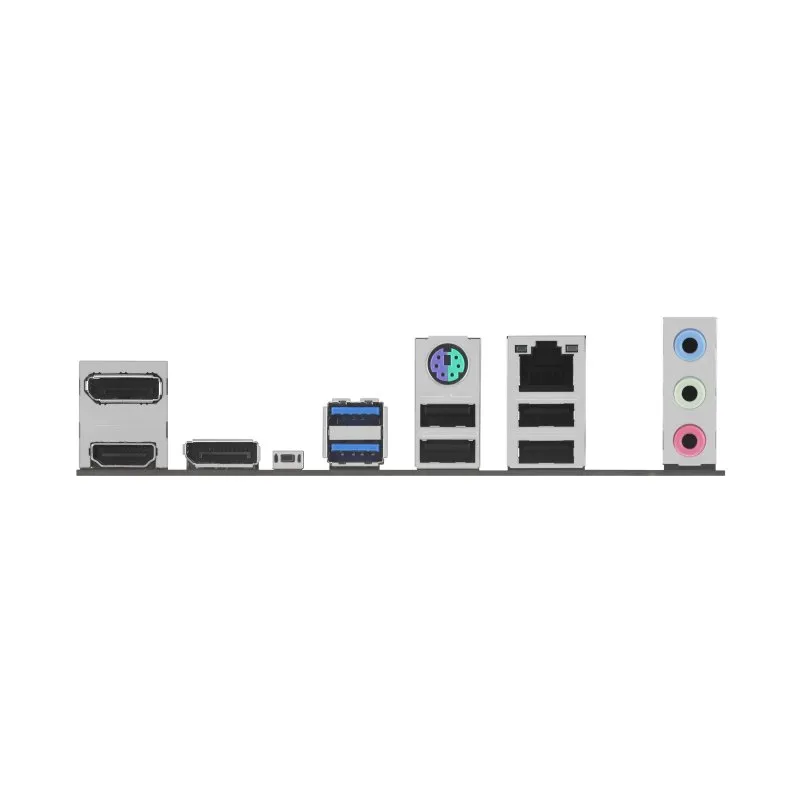

| Ports & Connector | |
| Audio | 3 x Audio jacks |
| Display Port (s) | 2 x DisplayPort |
| HDMI | 1 x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z Norton 360 for Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Other Features | |

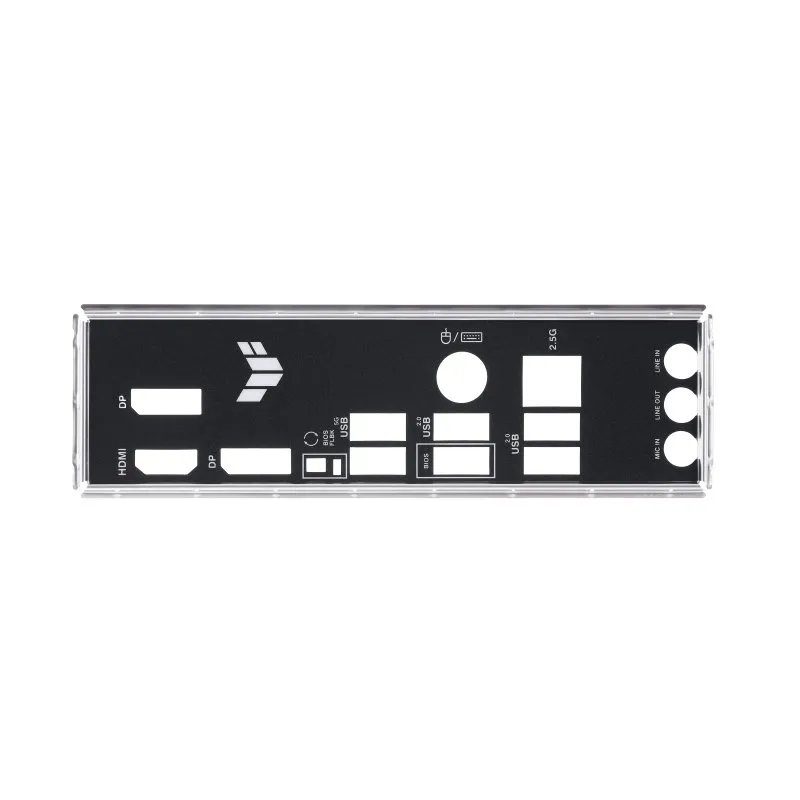

| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |
Description

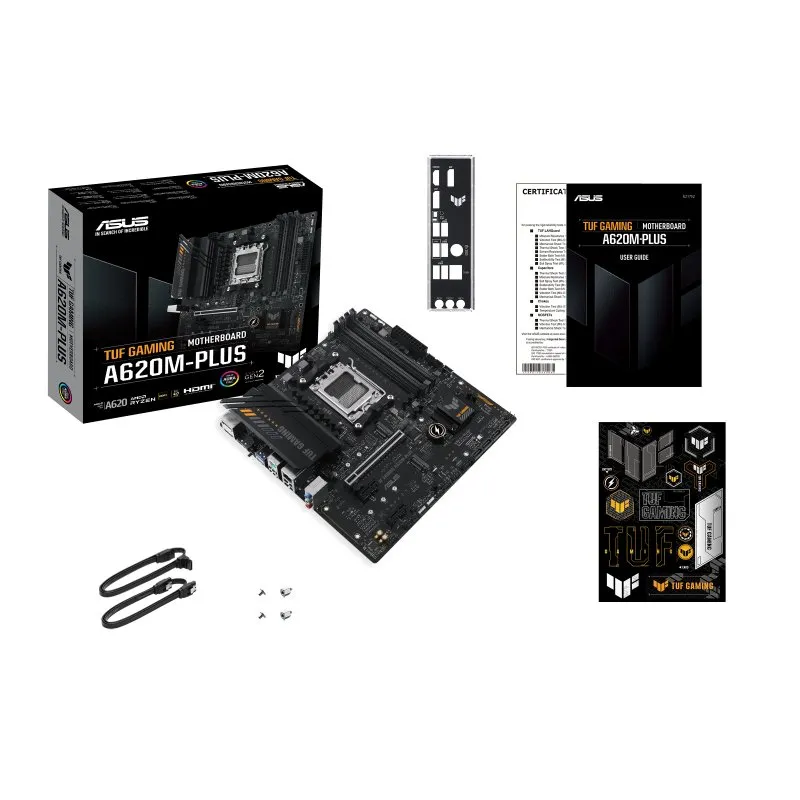

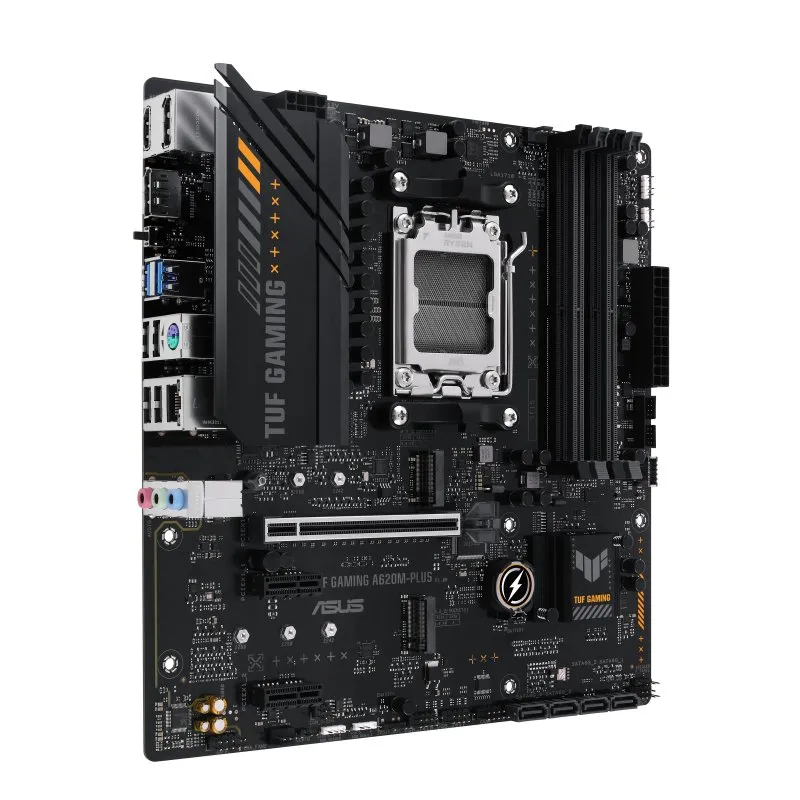

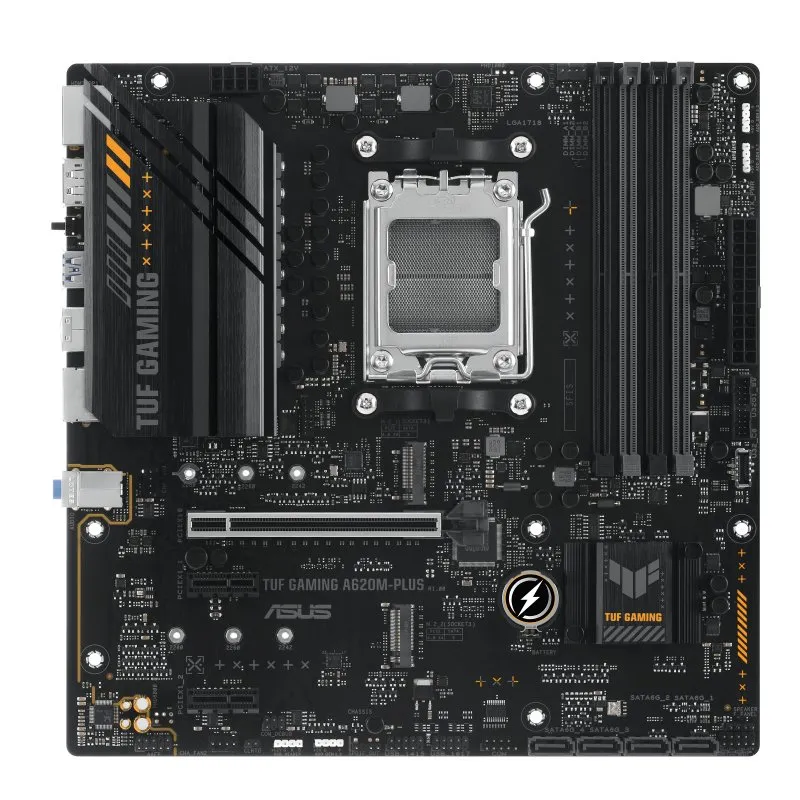

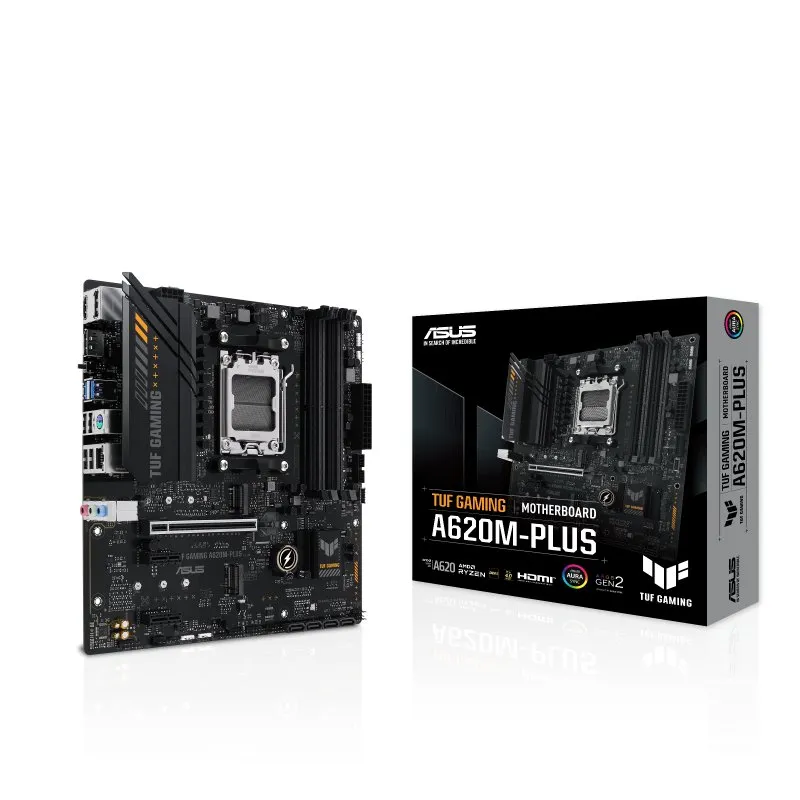

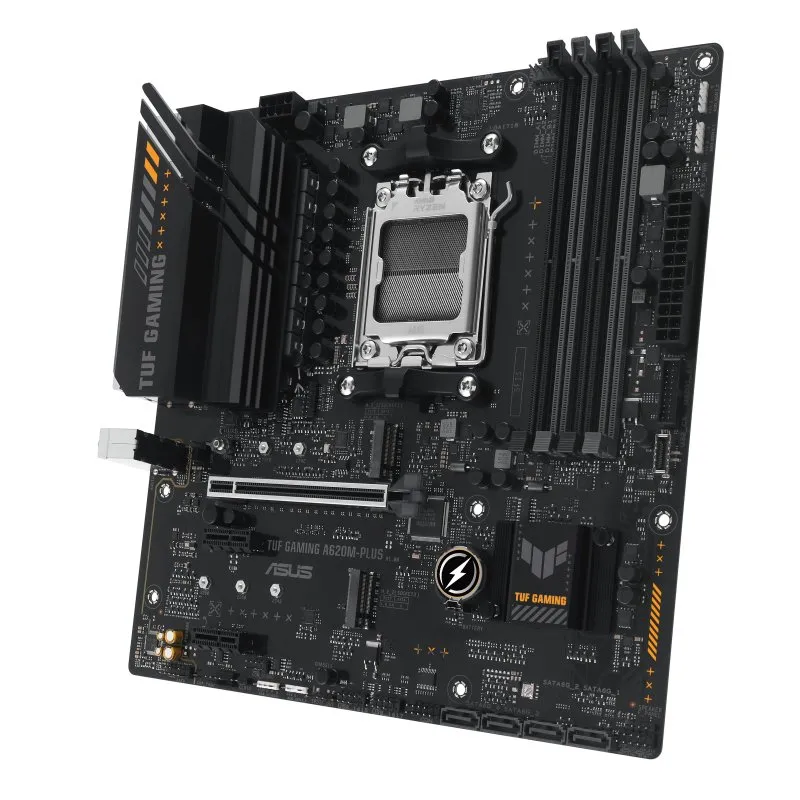

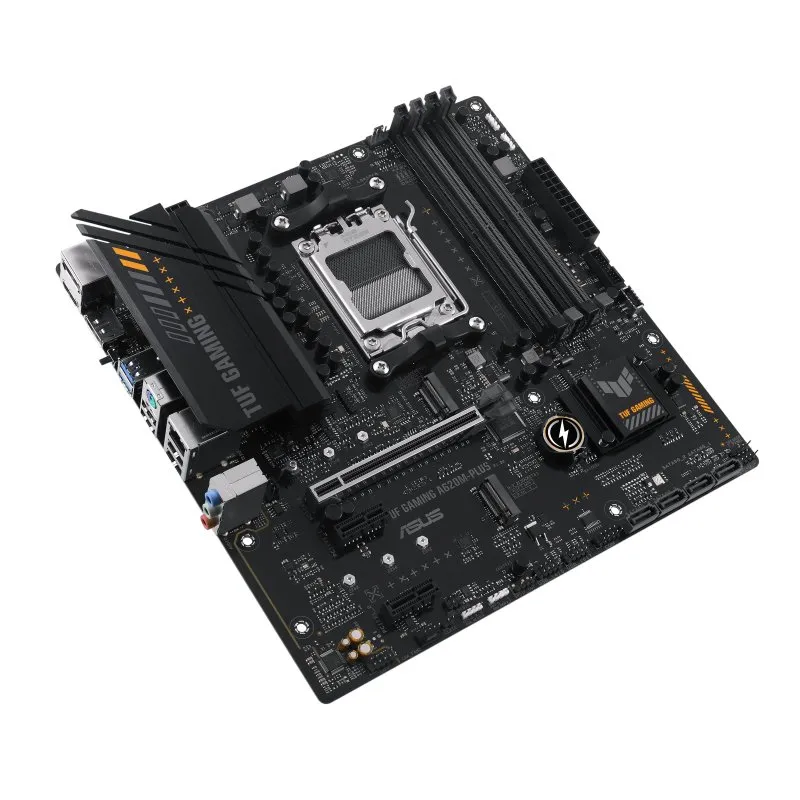

ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard
The ASUS TUF GAMING A620M-PLUS Motherboard brings stability, durability, and gaming performance into a compact Micro-ATX form factor, designed for the latest AMD Ryzen 7000 Series desktop processors on the AM5 platform. Built with military-grade components and tested for long-term reliability, this TUF Gaming motherboard is the perfect entry into high-performance gaming on a budget.
AM5 Power with DDR5 Speed
Harness the next-gen power of AMD Ryzen 7000 CPUs with full support for up to 128GB of DDR5 memory, delivering ultra-fast bandwidth and responsive multitasking. It features support for AMD EXPO™ profiles for easy memory overclocking and enhanced performance.
-
CPU Support: AMD Ryzen 7000 Series (AM5)
-
Chipset: AMD A620
-
Memory: 2x DDR5 DIMM slots, up to 128GB @ 6400MHz (OC)
Smooth Graphics & Expansion Capabilities
Whether you're gaming or multitasking with multiple displays, the TUF GAMING A620M-PLUS offers broad GPU and peripheral support:
-
Graphics Output:
-
2x DisplayPort (Up to 8K @ 60Hz)
-
1x HDMI (Up to 4K @ 60Hz)
-
-
Expansion Slots:
-
1x PCIe 4.0 x16 (CPU)
-
2x PCIe 3.0 x1 (chipset)
-
High-Speed Storage Options
Stay ahead with lightning-fast storage performance using dual PCIe 4.0 x4 M.2 slots and 4x SATA 6Gb/s ports. Load games and files at rapid speeds, and keep your rig future-ready for more upgrades.
Next-Level Networking & Audio
Equipped with Realtek 2.5Gb Ethernet, this board ensures low-latency, high-bandwidth networking—ideal for competitive gaming and large file transfers. Coupled with Realtek 7.1 HD Audio CODEC, your system will deliver immersive sound clarity for gaming and media consumption.
TUF Cooling & Build Reliability
Engineered with ASUS Thermal Solution, this board includes optimized heatsinks and fan headers to ensure stable performance even during heavy loads. It also features:
-
TUF Protection with ESD Guards, SafeSlot Core+, and overvoltage protection
-
Q-Design tools (Q-LED, Q-DIMM) for simplified DIY setup and troubleshooting
Smart Software & OS Compatibility
With Armoury Crate and AI Suite 3, users can control fan profiles, monitor system health, and adjust performance settings with ease. Fully compatible with Windows 11 & Windows 10 (64-bit), this motherboard provides seamless OS integration and future-proof support.
Why Choose SkylandBD?
-
Official ASUS Bangladesh Partner
-
Fast Nationwide Delivery
-
Expert PC Building Support
-
Genuine Warranty Coverage
-
Ideal for Budget Gaming & Professional Use
The ASUS TUF GAMING A620M-PLUS AM5 Motherboard strikes the perfect balance between performance, stability, and affordability—making it an ideal choice for budget-conscious gamers and reliable everyday computing.
