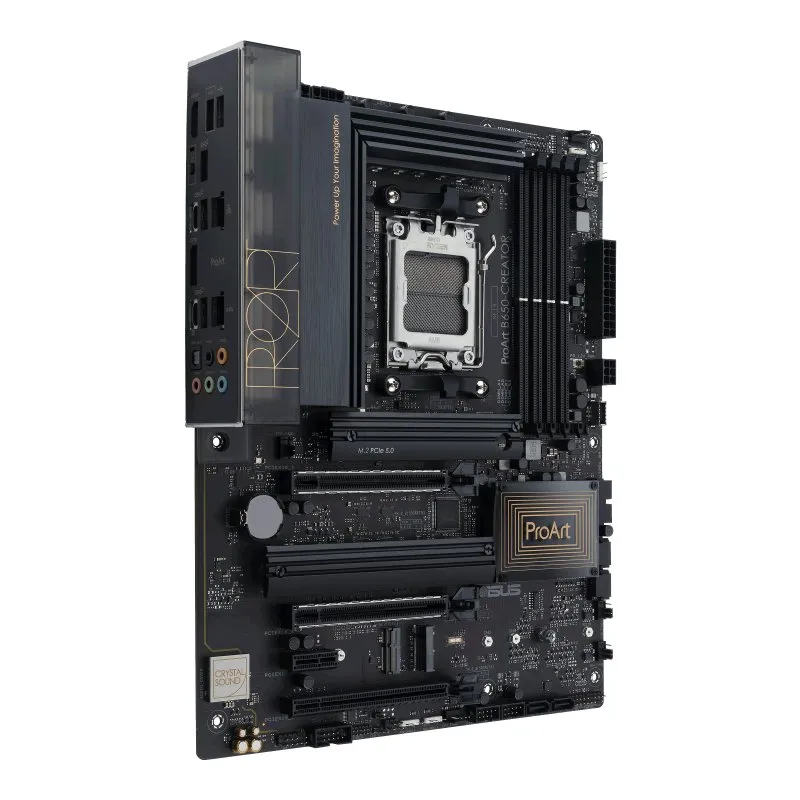

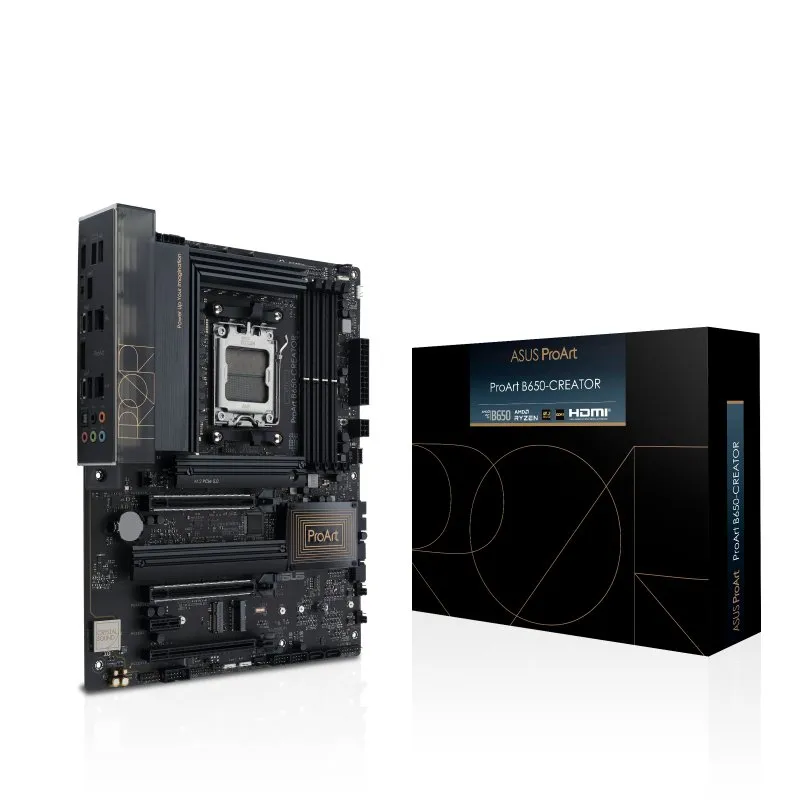

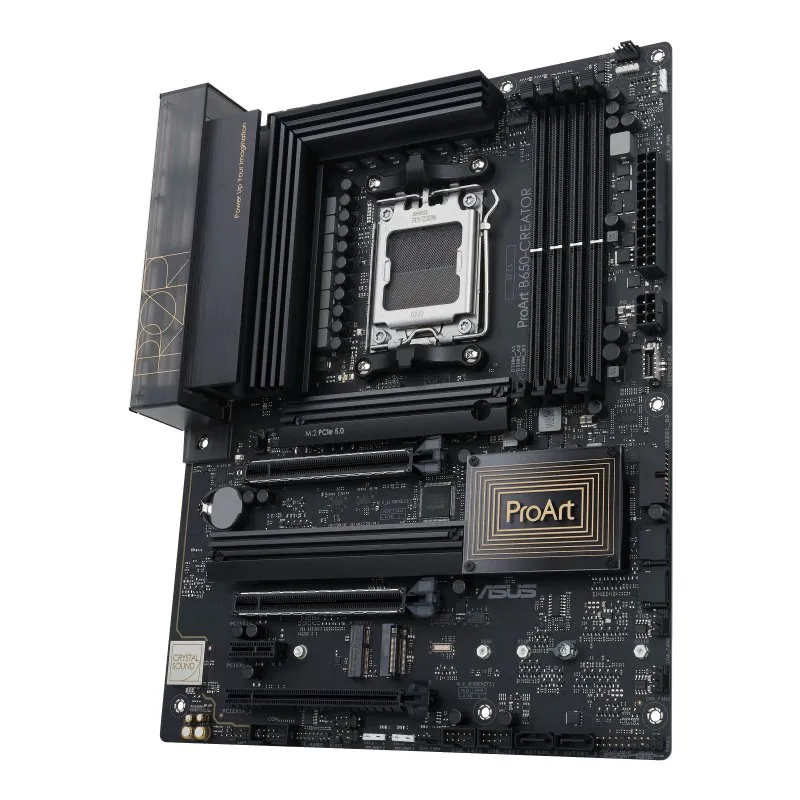

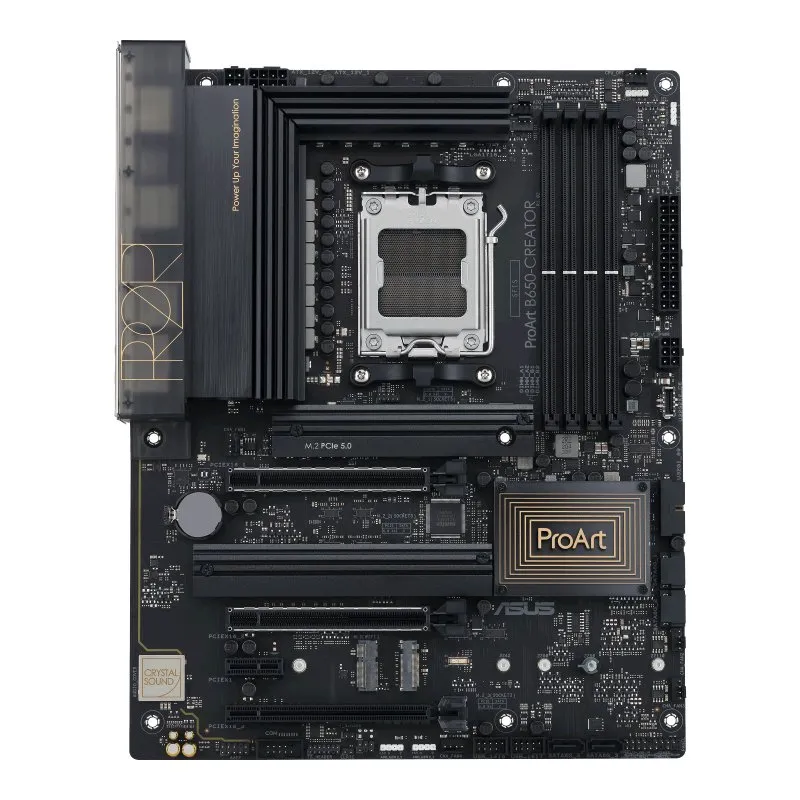

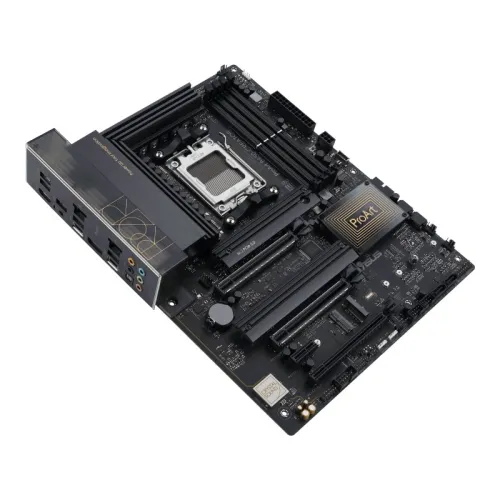

ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard
Key Features
- Supported CPU: Ryzen 7000/ 8000 Series Processors for Socket AM5
- Supported Memory: 4 x DIMM slots, Max. 192GB, DDR5 6400+(OC)
- Graphics Output: 1 x HDMI port, 1 x USB Type-C
- Features: 1 x Realtek 2.5Gb Ethernet
Specification
| General | |
| Brand | ASUS |
| Model | ProArt B650-CREATOR |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Maximum Memory | 192GB |
| Supported Memory | 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| Graphics | |
| Graphics | 1 x HDMITM port** 1 x USB Type-C port supports DisplayPort output*** * Graphics specifications may vary between CPU types. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. 1 x HDMI port** 1 x USB Type-C port supports DisplayPort output*** * Graphics specifications may vary between CPU types. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD B650 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors |
| Expansion Slots | |
| M.2 Socket | 3 x M.2 slots |
| PCI | AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. *** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. AMD Ryzen 7000 Series Desktop Processors 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
| Ports & Connector | |
| Audio | 5 x Audio jacks |
| Display Port (s) | 1 x USB Type-C, shared with DisplayPort graphic output |
| HDMI | 1 x HDMI |
| Internal I/O Ports | Internal I/O Connectors I/O ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| RAID | AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. *** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. |

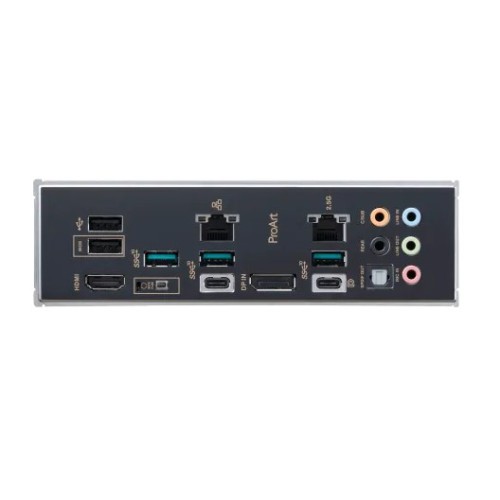

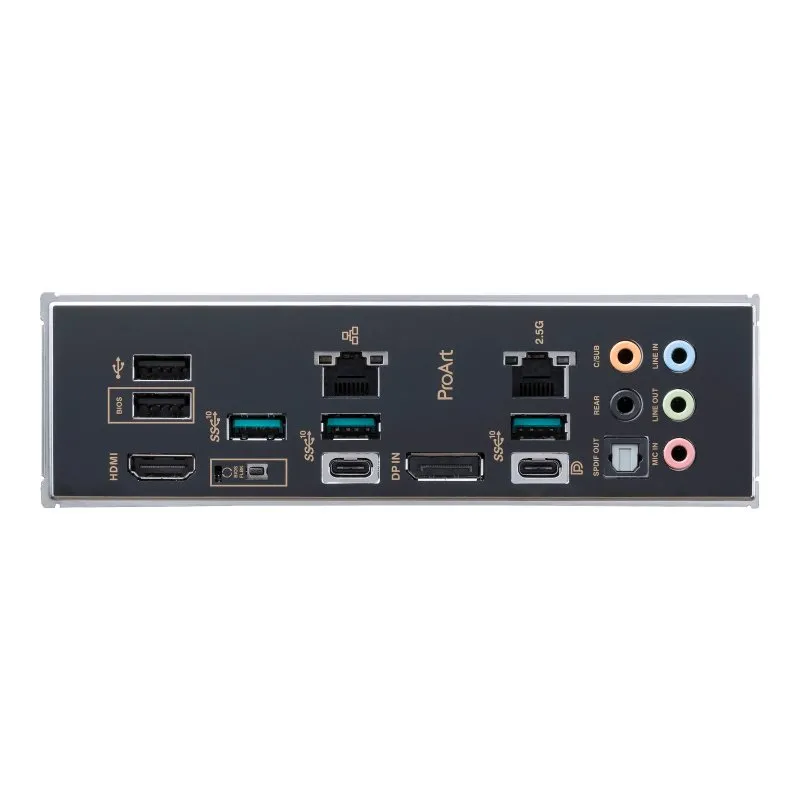

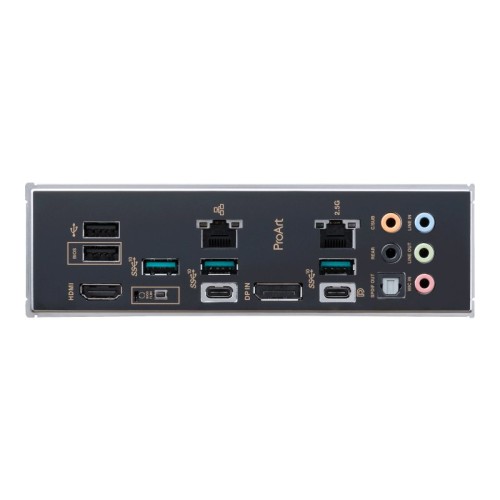

| USB (s) | Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) CreationFirst Norton Anti-virus software (Free Trial version) ProArt Creator Hub WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Other Features | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported. |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |
Description
ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard
The ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard—a powerful and professional-grade platform built to handle the demanding workflows of content creators, 3D artists, and video editors. Whether you're rendering complex scenes, editing 4K/8K footage, or producing digital content in real time, this motherboard provides the robust power and connectivity required to make it all happen.
Purpose-Built for Creative Professionals
Tailored for modern creators, the ProArt B650-CREATOR supports AMD Ryzen 7000 & 8000 Series processors via the AM5 socket, unlocking elite performance for CPU-intensive workloads. With DDR5 memory support, you’ll experience faster rendering, smoother editing, and efficient multitasking—all essential for productivity in visual design and video production.
-
AM5 socket for next-gen Ryzen CPUs
-
Supports DDR5 RAM for ultra-fast memory performance
-
Optimized power delivery & thermal design for reliability under load
High-Speed Networking & Seamless Data Transfer
Designed to accelerate your workflow, this motherboard features dual Ethernet ports—one 2.5Gb LAN and one 1Gb LAN—perfect for large file transfers, NAS integration, or remote collaboration. A USB 3.2 Gen 2x2 Type-C front panel port offers blazing-fast data transfer speeds and supports Quick Charge 4+ for rapidly charging compatible devices. You’ll also find DisplayPort over USB-C, ideal for modern creators using high-res external displays.
-
Dual LAN (2.5Gb + 1Gb) for reliable and fast network performance
-
Front USB-C Gen 2x2 (20Gbps) + Quick Charge 4+
-
DisplayPort via USB-C – Expands visual connectivity options
Stable, Cool, and Reliable
The ASUS ProArt B650-CREATOR features robust thermal architecture to maintain performance under extended workloads. A high-efficiency VRM heatsink and intelligent fan controls keep system temperatures low while maintaining silent operation—essential for distraction-free creation environments.
-
High-efficiency VRM & chipset heatsinks
-
Fan Xpert software for fine-tuned cooling control
-
Durable ProArt build quality ensures long-term reliability
Creator-Centric Design
Designed for professionals, the ProArt B650-CREATOR is equipped with ProArt Creator Hub software for resource monitoring, system optimization, and workflow efficiency. You'll also enjoy Q-Design features like a pre-mounted I/O shield and Q-Release PCIe slot for easier component swaps—perfect for busy production setups.
-
ProArt Creator Hub for centralized control
-
Pre-mounted I/O shield & Q-Release PCIe slot for easy upgrades
-
CSM (Corporate Stable Model) support for long-term reliability and updates
Key Features Summary:
-
AM5 socket for AMD Ryzen 7000/8000 CPUs
-
DDR5 memory support
-
Dual Ethernet (2.5G + 1G)
-
USB 3.2 Gen 2x2 Type-C with Quick Charge 4+
-
DisplayPort over USB-C
-
Robust thermal and power delivery
-
Q-Design build features + ProArt software tools
Why Buy from SkylandBD?
-
???????? 100% Genuine ASUS Motherboard with Official Warranty
-
Fast Delivery & Trusted After-Sales Support
-
Ideal for Creators, Designers, and Video Editors in Bangladesh
-
Expert Assistance for Building or Upgrading Your PC
Whether you're editing cinematic footage, creating digital art, or working on complex CAD projects, the ASUS ProArt B650-CREATOR empowers you to create without compromise. Available now at SkylandBD — the trusted source for high-end professional PC components in Bangladesh.
