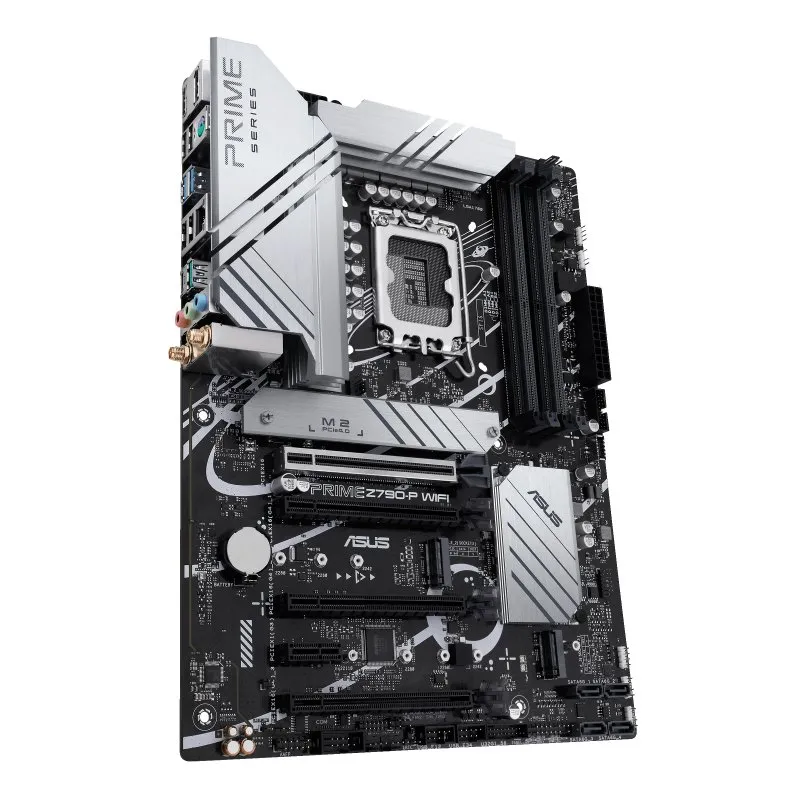

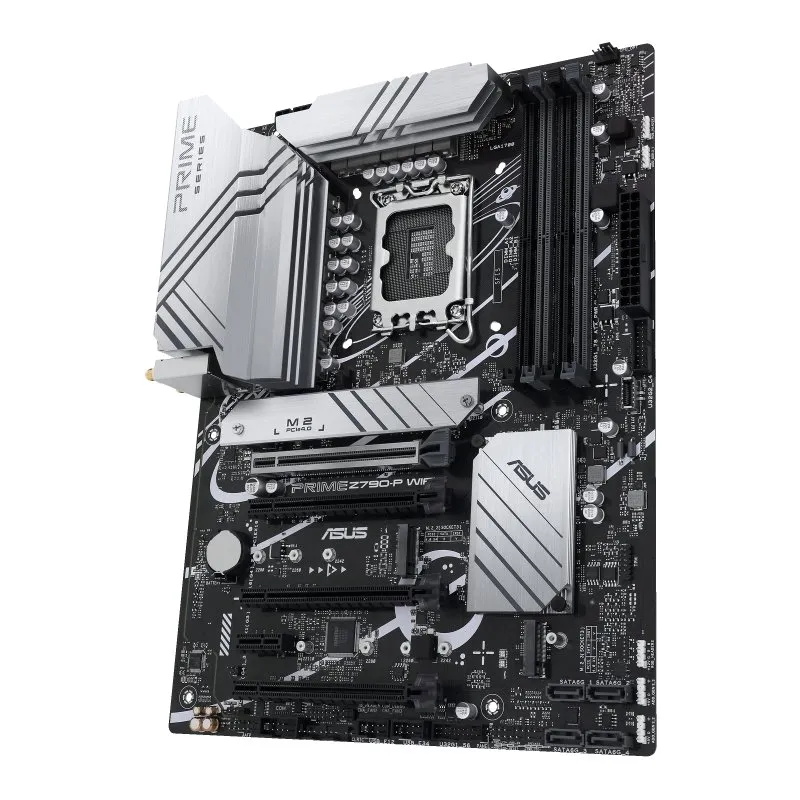

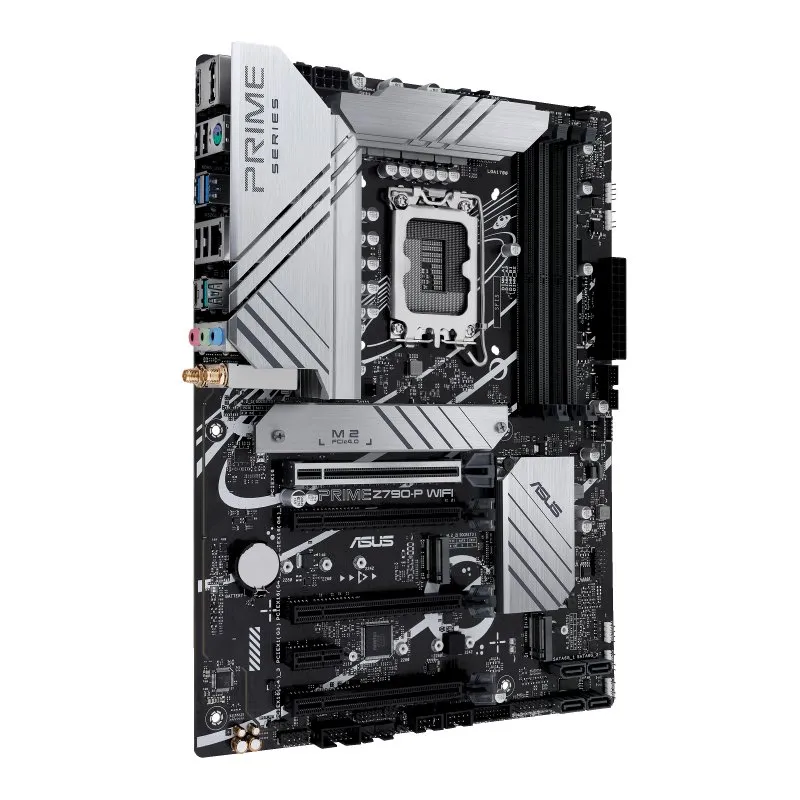

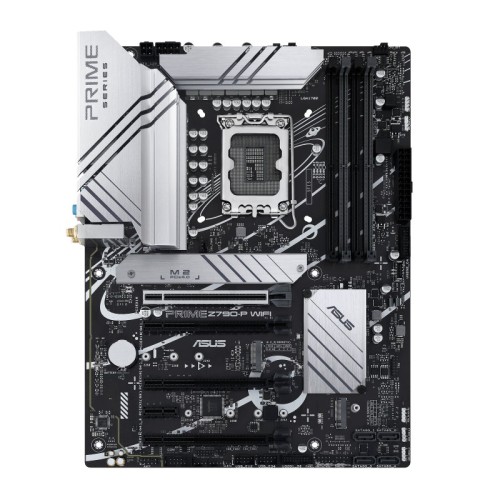

ASUS PRIME Z790-P WIFI-CSM ATX Motherboard

ASUS PRIME Z790-P WIFI-CSM ATX Motherboard

The ASUS PRIME Z790-P WIFI-CSM is built for creators, gamers, and professionals looking for a solid balance of power, expandability, and reliability. Featuring the Intel Z790 chipset and LGA 1700 socket, this ATX motherboard supports 13th and 12th Gen Intel Core™, Pentium Gold, and Celeron® processors, while also offering 14th Gen readiness—ensuring compatibility with the latest Intel desktop CPUs.

Fast Memory & Performance

• CPU Support: Intel® 14th, 13th, and 12th Gen processors

• RAM: 4× DDR5 DIMM slots supporting up to 128GB @ 7200+ MHz (OC)

• Dual-channel architecture ideal for content creation, multitasking, and gaming

Expansion & Graphics

• 1× PCIe 5.0 x16 slot for next-gen GPUs

• 3× PCIe 4.0 x16 (x4 mode) slots and 1× PCIe 3.0 x1 for additional expansion cards

• Intel XMP support allows fine-tuning memory speeds for optimized performance

Versatile Storage Support

• 3× M.2 PCIe 4.0 slots for ultra-fast NVMe SSDs

• 4× SATA III (6Gb/s) ports for HDDs, SATA SSDs, or optical drives

• RAID support for data redundancy or speed optimization

Connectivity Options

• Wi-Fi 6 (802.11ax) for fast and stable wireless networking

• Bluetooth 5.2 for wireless peripherals like headsets, keyboards, and gamepads

• 2.5 Gigabit Ethernet port for high-speed wired connections

USB & I/O Flexibility

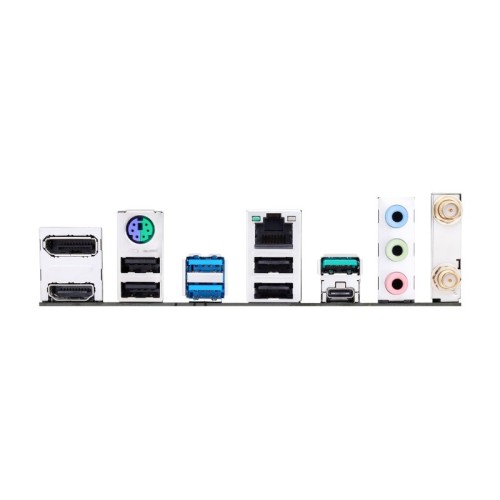

• Back Panel USB Ports:

  • USB 3.2 Gen 2x2 Type-C (20Gbps)

  • USB 3.2 Gen 2 Type-A (10Gbps)

  • USB 3.2 Gen 1 and USB 2.0 ports

• Internal USB Headers: Support additional front-panel USB-A and USB-C connections

Audio & Visual Support

• Integrated Realtek 7.1 Channel HD Audio Codec for immersive sound quality

• HDMI and DisplayPort outputs support integrated graphics for display flexibility

• Ideal for creators or users not installing a dedicated GPU

Cooling & Reliability

• Comprehensive cooling with multiple fan headers and VRM heatsinks

• ASUS DIGI+ VRM, 5X Protection III, and Q-LED diagnostics for safe, stable operation

• CSM (Corporate Stable Model) program ensures long-term availability and support

Whether you're building a creator workstation, a mid-tier gaming PC, or a home server, the ASUS PRIME Z790-P WIFI-CSM provides excellent value with its modern connectivity, memory headroom, and forward-compatible PCIe 5.0 support—all in a reliable and customizable package.

Available now from SkyLandBD.
