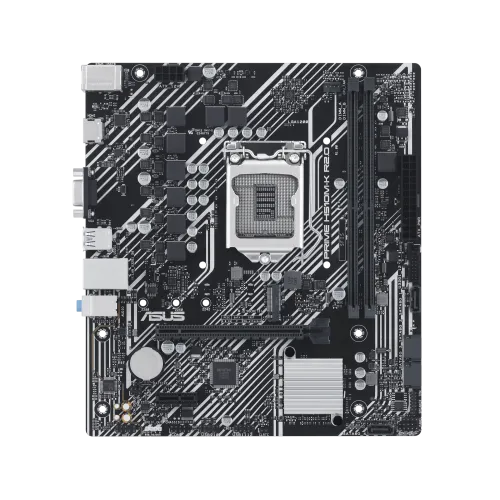

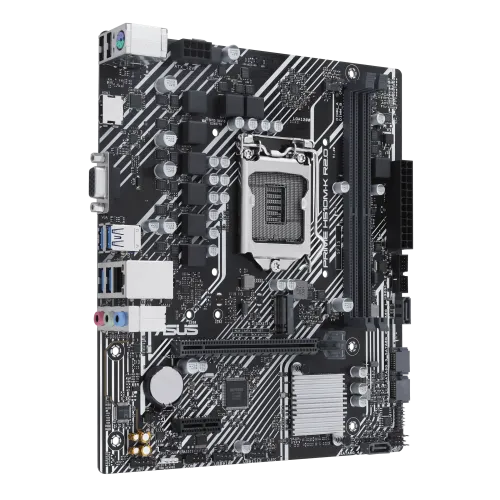

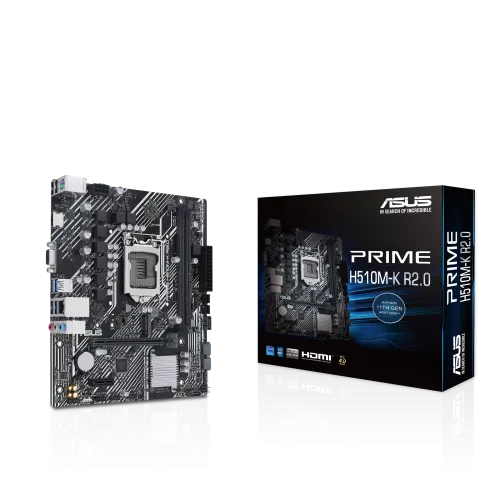

ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard

Name: ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard
Brand: Asus
SKU: PRIME H510M-K R2.0
Price: 10700.00 BDT
Availability: InStock

Price: 10,700৳ (Cash Discount)

Regular Price: 13,500৳

Status: In Stock

Product Code: PRIME H510M-K R2.0

Brand: Asus

Key Features

Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
Graphics Output: 1x HDMI port, 1x VGA port
Features: 1 x Realtek 1Gb Ethernet

View More Info

Payment Options

10,700৳ 13,500৳ Save 2,800৳ (21% OFF)

Instant Cash Discount Price

Online / Cash / Card Payment

Special Price: 10,700৳

View 27 Banks EMI Plans

Order / Inquiry on WhatsApp Messenger

0% EMI up to ৳15,000 on 27+ Banks Avail instant monthly installments on credit cards with SSLCOMMERZ. Charges apply on EMI above ৳15,000.

Official Warranty Nationwide Delivery Cashback Offer

Specification

Memory
Slots	2 x DIMM
Maximum Memory	Max. 64GB
Supported Memory	DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Graphics
Graphics	Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Key Features
Form Factor	micro-ATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Basic Information
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Chipset	Intel H470 Chipset
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Connectivity
HDMI	1x HDMI 1.4
Expansion Slots
M.2 Socket	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
PCI	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot
Ports & Connector
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
TPM (Trusted Platform Module)	1 x SPI TPM header (14-1pin)
USB (s)	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
VGA (s)	1x VGA port
Power
Type	DDR4
Other Features
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header
Warranty Information
Manufacturing Warranty	3 years

Description

The ASUS PRIME H510M-K R2.0 is a versatile micro-ATX motherboard designed for compatibility with both 10th and 11th Gen Intel processors through its LGA 1200 socket. Featuring an Intel H510 chipset, this motherboard supports ultrafast connectivity with PCIe 4.0, a 32Gbps M.2 slot for rapid storage, 1 Gb Ethernet for reliable networking, and USB 3.2 Gen 1 Type-A ports for quick data transfer. For cooling, it includes a PCH heatsink and FAN Xpert technology to ensure optimal thermal management. Additionally, the motherboard offers 5X Protection III, a suite of hardware safeguards that provides overvoltage, short-circuit, and other protective features for enhanced durability and stability. This combination of features makes the ASUS PRIME H510M-K R2.0 a reliable and efficient choice for building a high-performance computing system.
