Asus PRIME A520M-A II AM4 micro ATX Motherboard

Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Save: 1,060৳
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
Asus PRIME A520M-A II AM4 micro ATX Motherboard
0 reviews • Write a review
  • Offer Price: 11,200৳
  • Regular Price: 12,260৳
  • Stock: In Stock
  • Brand: Asus
  • Model: PRIME A520M-A II

Key Features

  • CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series
  • Dual Channel Memory Architecture
  • Output: 1 x DisplayPort, 1 x D-Sub, 1 x HDMITM port
  • Features: 5X Protection III
View More Info

Payment Options

11,200৳12,260৳

Cash Discount Price

Online / Cash Payment
—/month

Regular Price: —

Compare Bank EMI Options
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

General
Brand Asus
Model PRIME A520M-A II
Memory
Type Dual Channel DDR4 Memory Technology
Slots 2 x DIMM
Maximum Memory 128GB
Supported Memory 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Graphics
Graphics Graphics specifications may vary between CPU types
Basic Information
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Chipset A520
Form Factor microATX 24.4cm x 24.4cm
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Expansion Slots
M.2 Socket Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots

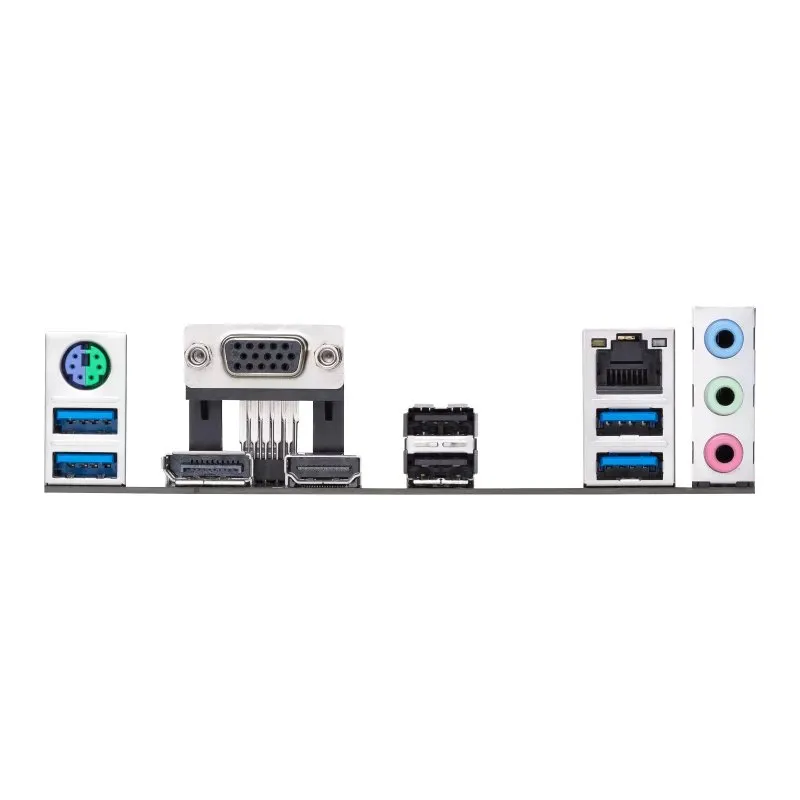

Ports & Connector
Audio 3 x Audio jacks Back Panel 1 x Front Panel Audio header (AAFP)
D-Sub (s) 1 x D-Sub
Display Port (s) 1 x DisplayPort
HDMI 1 x HDMITM port
Internal I/O Ports Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
LAN Port (s) 1 x Realtek 1Gb Ethernet ASUS LANGuard
Supported Storage AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support Raid 0, 1, 10
TPM (Trusted Platform Module) 1 x SPI TPM header
USB (s) Rear USB: Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
Other Features
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Warranty Information
Manufacturing Warranty 03-Year Warranty

Description

Asus PRIME A520M-A II AM4 micro ATX Motherboard

The ASUS PRIME A520M-A II AM4 Micro ATX Motherboard — a dependable and feature-packed motherboard designed to support AMD Ryzen 5000, 4000G, and 3000 Series processors. Whether you're setting up a home workstation, casual gaming setup, or budget-friendly build, this board offers great value and performance in a compact micro ATX form factor.

Built for AMD Ryzen – Flexible CPU Compatibility

Powered by the AMD A520 chipset, this motherboard supports a wide range of Ryzen CPUs via the AM4 socket, including:

  • Ryzen 5000 Series

  • Ryzen 4000 G-Series (with integrated graphics)

  • Ryzen 3000 Series

This gives you the flexibility to choose the right processor for your needs and budget.

Efficient Cooling & Stable Power Delivery

Keep your system cool and stable even during long hours of use. The ASUS PRIME A520M-A II features:

  • VRM & PCH heatsinks for efficient thermal control

  • Fan Xpert 2+ technology that intelligently adjusts fan speeds for quiet and effective cooling

  • A power design optimized to support high-performance Ryzen CPUs with stable voltage delivery

Fast Storage & Essential Connectivity

Speed up your system with an onboard M.2 slot, perfect for NVMe SSDs offering ultra-fast boot and load times. It also includes:

  • 1 Gb Ethernet LAN for fast and stable wired networking

  • USB 3.2 Gen 1 Type-A ports for faster data transfer

  • HDMI, DVI-D, and VGA (D-Sub) outputs for flexible display options depending on your setup

Aura Sync RGB Support for Custom Builds

For gamers and PC modders, this motherboard includes RGB headers and addressable Gen 2 headers, allowing you to connect LED strips and sync lighting effects with other Aura Sync-supported components. Perfect for creating a stylish, personalized PC.

Durable and Easy to Use

The ASUS 5X Protection III ensures your components stay safe with built-in hardware safeguards, including:

  • Overvoltage protection

  • Reinforced PCIe slots

  • DIGI+ VRM for stable power

  • Stainless-steel back I/O for long-lasting use

With an intuitive UEFI BIOS interface, the PRIME A520M-A II makes PC setup and system tuning easy for both beginners and experienced users.

Why Buy from SkylandBD?

  • 100% Genuine ASUS Products

  • Official Warranty & After-Sales Support

  • Fast Delivery Across Bangladesh

  • Expert Support for PC Builders

The ASUS PRIME A520M-A II AM4 Micro ATX Motherboard is a perfect choice for anyone building a Ryzen-powered system with reliability, performance, and essential modern features in mind.
