Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard

Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Save: 2,230৳
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
0 reviews • Write a review
  • Offer Price: 26,200৳
  • Regular Price: 28,430৳
  • Stock: In Stock
  • Brand: Asus
  • Model: B850M AYW GAMING WIFI

Key Features

  • Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
  • Supported Memory: 2 x DIMM, Max. 128GB, Up to 8200+MT/s(OC)
  • Graphics Output: 1 x HDMI port Supports 4K@60Hz
  • Features: Realtek 2.5Gb Ethernet, Wi-Fi 6, Realtek 7.1 Surround Sound
View More Info

Payment Options

26,200৳28,430৳

Cash Discount Price

Online / Cash Payment
—/month

Regular Price: —

Compare Bank EMI Options
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

General
Brand Asus
Model B850M AYW GAMING WIFI
Memory
Maximum Memory 128GB
Slots 2 x DIMM
Supported Memory Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8400+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Type DDR5
Basic Information
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Chipset AMD B850 Chipset
Form Factor micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Expansion Slots
M.2 Socket AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
PCI AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode)
Graphics
Graphics 1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1.
Ports & Connector
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
HDMI 1x HDMI 2.1

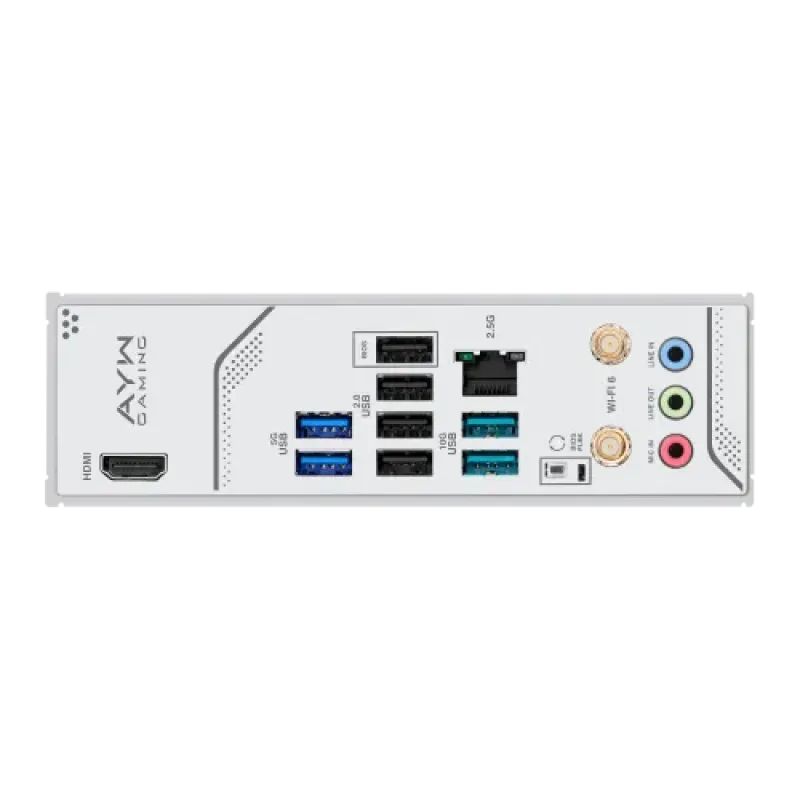

Internal I/O Ports Fan and Cooling Related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button
LAN Port (s) 1 x Realtek 2.5Gb Ethernet ASUS LANGuard
RAID AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Supported Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
TPM (Trusted Platform Module) 1 x SPI TPM header (14-1 pin)
USB (s) Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
Wireless Communication module Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS DriverHub TurboV Core ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - Pre-mounted I/O shield - BIOS FlashBack™ button - BIOS FlashBack™ LED - SafeSlot Aura Sync - Addressable RGB Gen 2 headers
Warranty Information
Manufacturing Warranty 3 Years

Description

Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard

The Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard is a compact yet powerful solution designed for modern AMD builds, offering robust performance and top-tier features for gamers and PC enthusiasts. Built with the AMD B850 chipset, the Asus B850M AYW GAMING WIFI Motherboard supports the latest Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket. It accommodates up to 128GB of DDR5 RAM through 2 DIMM slots, with memory speeds reaching up to 8400+MT/s (OC) depending on the processor. Its micro-ATX form factor (24.4 x 22.1 cm) makes it ideal for compact gaming setups without sacrificing capability. The Asus B850M AYW GAMING WIFI micro-ATX Motherboard features built-in Wi-Fi 6, Bluetooth 5.3, and Realtek 2.5Gb Ethernet with ASUS LANGuard, ensuring fast, stable connectivity for gaming, streaming, and multitasking. Rear I/O connectivity includes 8 USB ports (2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0), while the front panel supports 7 additional USB ports, including a USB Type-C® connector with 5V/3A power delivery. For display output, the Asus B850M AYW GAMING WIFI offers an HDMI 2.1 port supporting 4K@60Hz, though capabilities depend on the installed CPU. Storage expansion is versatile, with 2 x M.2 slots and 4 x SATA 6Gb/s ports, supporting PCIe 5.0/4.0 speeds and RAID configurations (RAID 0/1/5/10) using AMD RAIDXpert2 Technology. The motherboard supports one PCIe 5.0 x16 slot for Ryzen 9000/7000 and PCIe 4.0 x16/x8/x4 slots for Ryzen 8000, enhancing GPU and expansion card options. Premium cooling is ensured with dedicated M.2 and VRM heatsinks, and ASUS Q-Design features like Q-LED, Q-DIMM, and M.2 Q-Latch enhance user-friendly installation and diagnostics. The Asus B850M AYW GAMING WIFI Motherboard also delivers immersive audio through the Realtek 7.1 Surround Sound CODEC, supporting 24-bit/192kHz playback and enhanced by premium capacitors and audio shielding. A pre-mounted I/O shield, ASUS 5X Protection III, and support for Aura Sync RGB lighting complete its high-end offering. Bundled software like Armoury Crate, Fan Xpert 2+, and a 60-day Norton 360 Deluxe trial make the Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard a feature-packed, future-ready choice for performance-driven builders.

Write a review

Please login or register to review

What is the price of Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard in Bangladesh?

The latest price of Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard in Bangladesh is 26,200৳. You can buy the Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard at the best price from our website or visit any of our showrooms.
