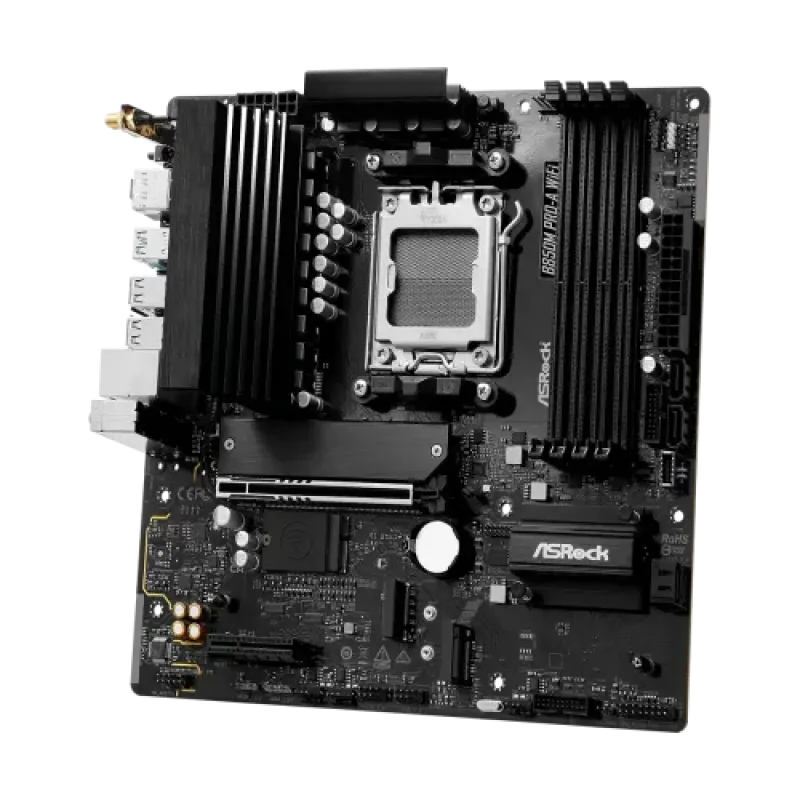

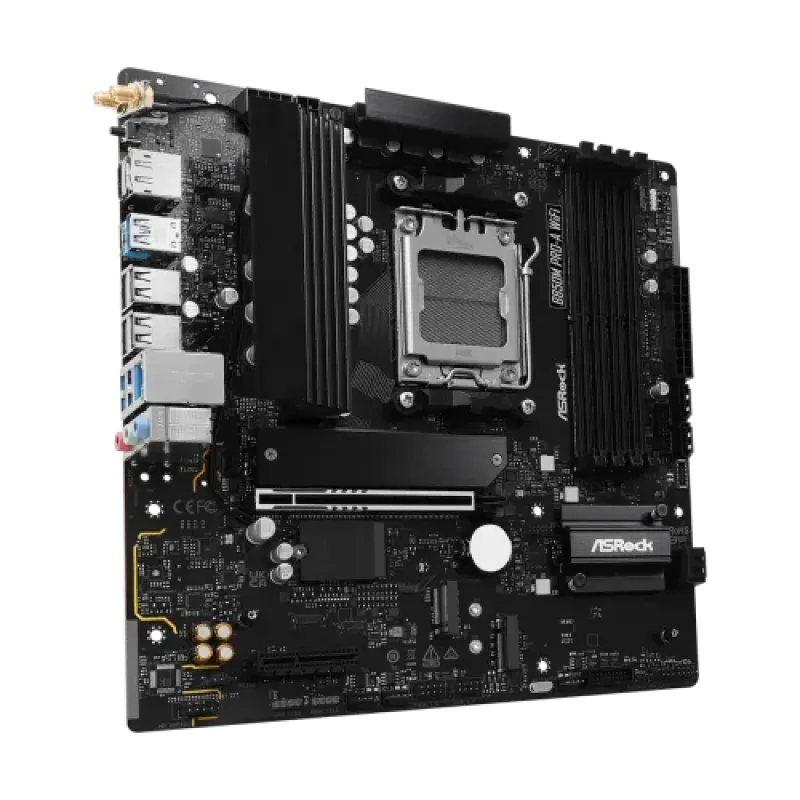

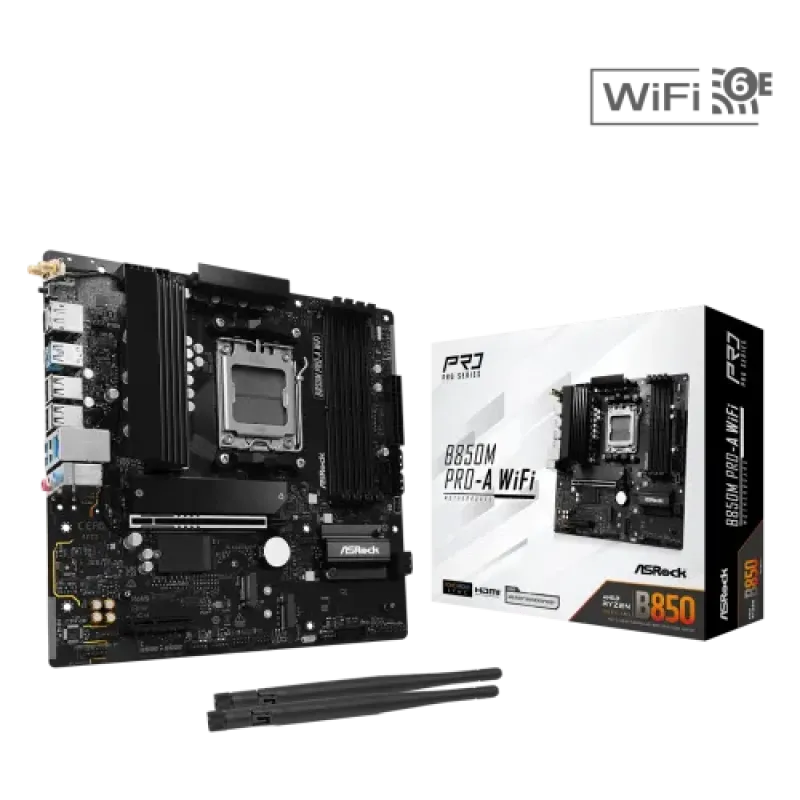

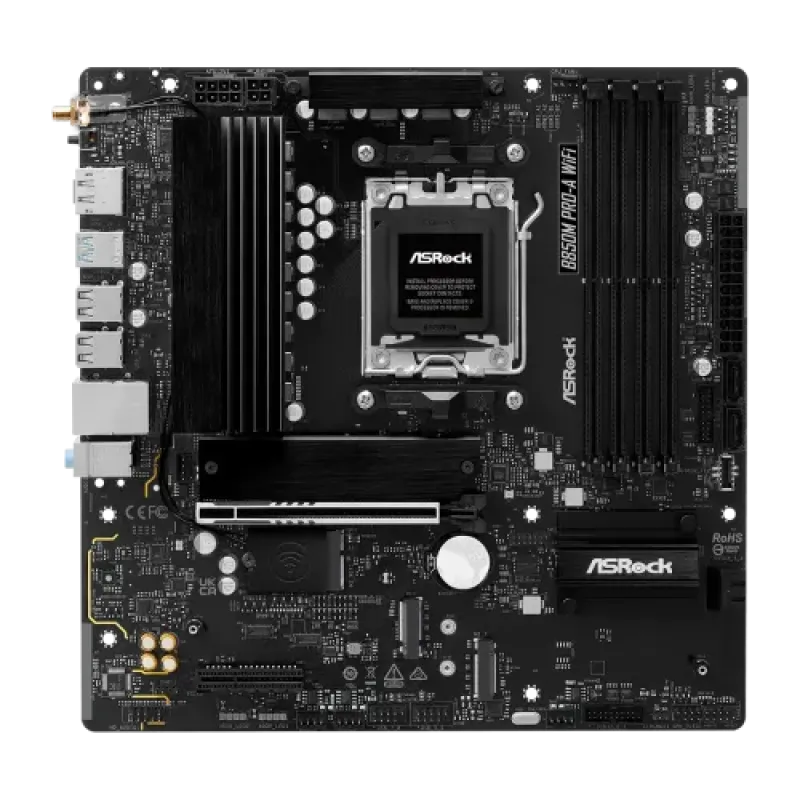

ASRock B850 Pro-A WiFi AM5 DDR5 ATX Motherboard

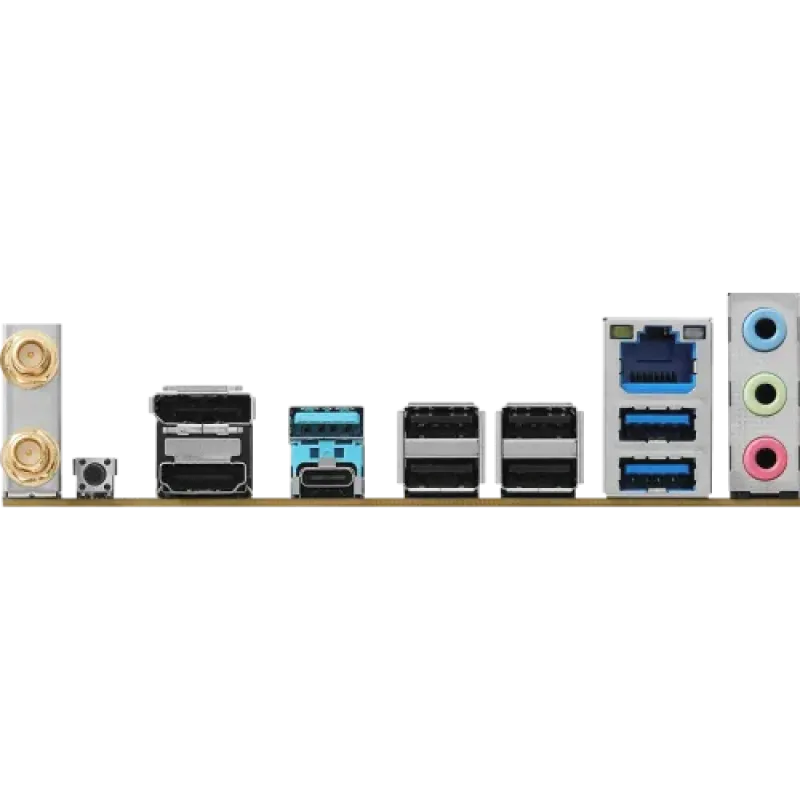

The ASRock B850 Pro-A WiFi AM5 DDR5 ATX Motherboard is a powerful and future-ready platform built to support AMD Ryzen 9000, 8000, and 7000 series processors on the Socket AM5 architecture. This ASRock B850 Pro-A WiFi AM5 DDR5 Motherboard is equipped with the AMD B850 chipset and features an advanced 8-layer ATX PCB, making it ideal for high-performance gaming and productivity. With support for up to 256GB of DDR5 RAM across 4 DIMM slots, and memory speeds reaching 8000+ MHz (OC), it delivers exceptional multitasking and overclocking potential. The ASRock B850 Pro-A WiFi Motherboard includes a PCIe 5.0 x16 slot, a PCIe 4.0 x16 slot, and a Key-E M.2 slot for Wi-Fi modules, ensuring top-tier expansion and GPU support. Its storage interface features four M.2 slots—including Blazing Gen5x4, Hyper Gen4x4, and Ultra Gen3x4—plus four SATA3 ports, with full RAID support for both NVMe and SATA drives. For graphics, this motherboard supports integrated AMD RDNA graphics (CPU-dependent) with HDMI 2.1 output at 4K 120Hz and a USB 3.2 Gen1 Type-C port that supports DP 1.4 HBR3 for up to 4K 60Hz via DisplayPort Alt Mode. Network performance is enhanced with 2.5G Dragon RTL8125BG LAN and Wi-Fi 6E (802.11axe), along with Bluetooth 5.2, ensuring blazing-fast wireless connectivity (Wi-Fi 6E is supported only on Windows 11 with a 6GHz-capable router). Rear I/O options on the ASRock B850 Pro-A WiFi include dual antenna ports, HDMI, USB Type-C (Gen2 and Gen1 with DP-alt), USB 3.2 Gen1, USB 2.0, LAN, and HD audio jacks. The board also features a BIOS Flashback button, ASRock Post Status Checker, and support for utilities like Polychrome SYNC, A-Tuning, and Dragon 2.5G LAN software. Engineered with a 14+2+1 phase 80A Dr.MOS power design, PCIe Gen5 lanes for both GPU and SSDs, and extensive thermal and durability enhancements, the ASRock B850 Pro-A WiFi AM5 DDR5 ATX Motherboard offers unmatched performance, connectivity, and reliability for modern AM5 desktop builds.
