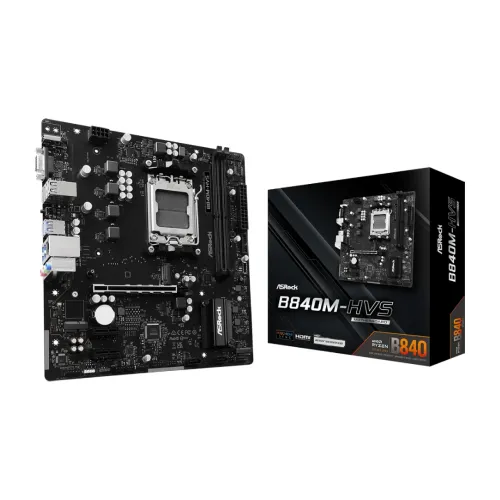

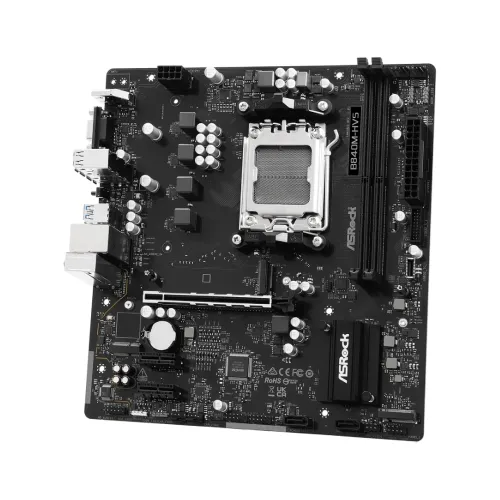

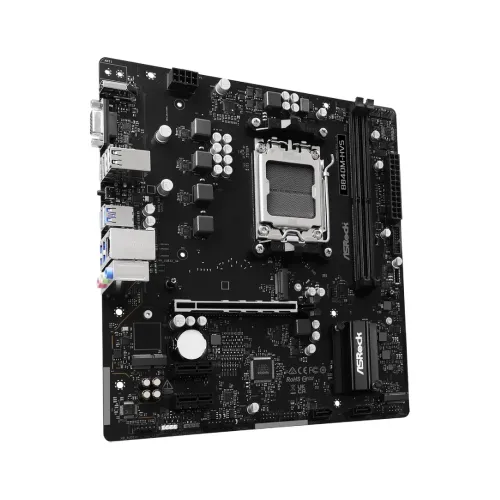

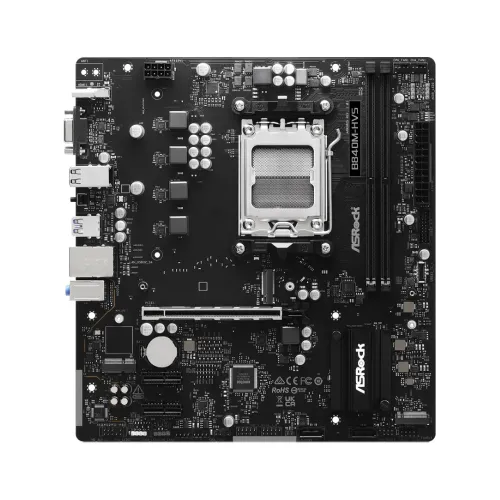

ASRock B840M-HVS AMD AM5 mATX Motherboard

Name: ASRock B840M-HVS AMD AM5 mATX Motherboard
Brand: ASRock
SKU: B840M-HVS
Price: 13299.00 BDT
Availability: InStock

Price: 13,299৳ (Cash Discount)

Regular Price: 14,500৳

Status: In Stock

Product Code: B840M-HVS

Brand: ASRock

Key Features

Supported CPU: Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, Up to 6800+(OC), Max 128GB
Graphics Output: 1x HDMI 2.1, 1x D-Sub
Features: Gigabit LAN, 2 x M.2

View More Info

Payment Options

13,299৳ 14,500৳ Save 1,201৳ (8% OFF)

Instant Cash Discount Price

Online / Cash / Card Payment

Special Price: 13,299৳

View 27 Banks EMI Plans

Order / Inquiry on WhatsApp Messenger

0% EMI up to ৳15,000 on 27+ Banks Avail instant monthly installments on credit cards with SSLCOMMERZ. Charges apply on EMI above ৳15,000.

Official Warranty Nationwide Delivery Cashback Offer

Specification

Memory
Slots	2 x DDR5 DIMM Slots
Maximum Memory	128GB
Supported Memory	Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Graphics
Graphics	Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Key Features
Form Factor	Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm 2oz Copper PCB
Basic Information
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Chipset	AMD B840
Supported CPU	Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Connectivity
HDMI	1 x HDMI 2.1 TMDS/FRL 8G Compatible
Expansion Slots
M.2 Socket	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
PCI	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Ports & Connector
D-Sub (s)	1 x D-Sub
Internal I/O Ports	- 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 4 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
LAN Port (s)	Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
Supported Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors
USB (s)	CPU: - 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
Power
Type	Dual Channel DDR5 Memory Technology
Others
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Other Features
Special Features	Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, Dr.MOS for Vcore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter
Warranty Information
Manufacturing Warranty	3 Years

Description

The ASRock B840M-HVS AMD AM5 mATX Motherboard is built for AMD Ryzen 9000, 8000, and 7000 series processors. This offers DDR5 memory support, PCIe 4.0 expansion, and advanced storage options. With features like BIOS Flashback, Auto Driver Installer, and Post Status Checker, the ASRock B840M-HVS makes updates and troubleshooting simple. Compact in micro-ATX form, it delivers stability, productivity, and flexibility for modern PC builds. The ASRock B840M-HVS supports dual-channel DDR5 memory up to 6800+(OC) with a maximum capacity of 128GB. It includes XMP and EXPO profiles for overclocking. Integrated AMD RDNA graphics provide HDMI 2.1 output up to 4K 120Hz and D-Sub up to Full HD, making this ASRock DDR5 Motherboard suitable for gaming and productivity. This ASRock motherboard offers one PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, and an M.2 socket for WiFi modules. Storage options include one Hyper M.2 Gen4x4 slot, one Ultra M.2 Gen3x4/SATA slot, and two SATA3 connectors. RAID 0, 1, and 10 are supported for M.2 NVMe devices, making the ASRock B840M-HVS AMD AM5 Motherboard versatile for different setups. Rear I/O includes HDMI, D-Sub, four USB 3.2 Gen1 Type-A ports, four USB 2.0 ports, Gigabit LAN, HD audio jacks, and a BIOS Flashback button. Internal headers support USB 3.2 Gen1 Type-C, RGB, and addressable LED strips. With Realtek ALC897 7.1 HD audio and RTL8111H Gigabit LAN, this ASRock AM5 Motherboard ensures reliable connectivity and multimedia performance. Built with a 4+1+1 power phase design and Dr.MOS for Vcore, the ASRock B840M-HVS provides stable power delivery. It features a 2oz copper PCB, smart fan speed control, and multiple chassis/water pump fan connectors. EZ update and troubleshooting tools like BIOS Flashback and Post Status Checker make maintenance straightforward. The ASRock B840M-HVS comes in a micro-ATX form factor (24.4 × 22.9 cm) with VESA mounting support. Accessories include an I/O shield, SATA cables, and an M.2 screw. Compatible with Windows 10 and 11 (64-bit), this ASRock B840M-HVS AMD AM5 mATX Motherboard is ready for modern PC builds.
