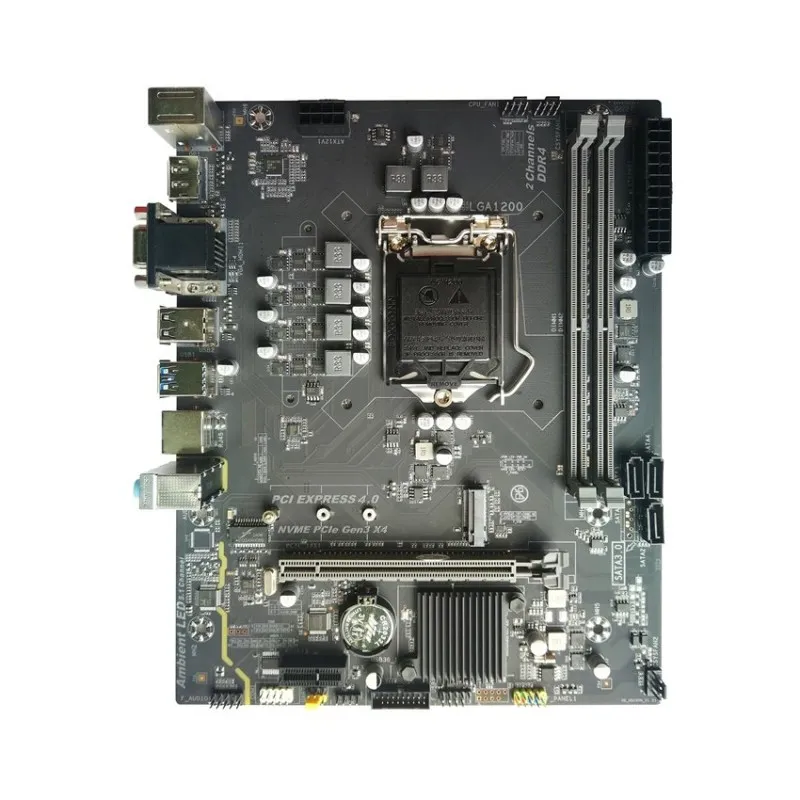

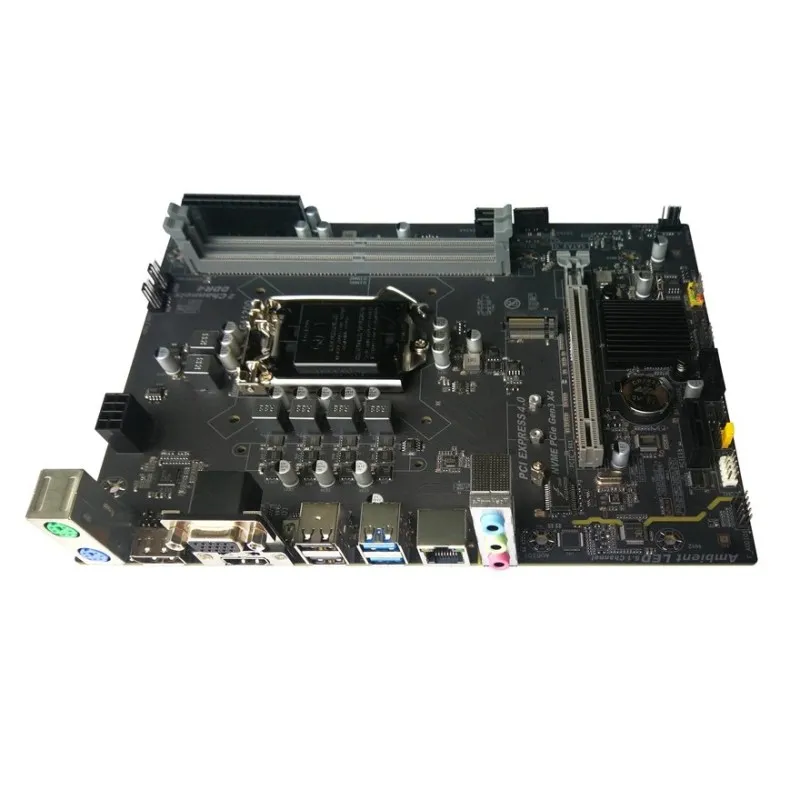

ARKTEK AK-H510M EG 10th & 11th Gen Micro-ATX Motherboard

The ARKTEK AK-H510M EG 10th & 11th Gen Micro-ATX Motherboard is designed to support both 11th and 10th generation Comet Lake-S processors, including Core i9, Core i7, Core i5, Core i3, Pentium, and Celeron series, for the LGA 1200 socket. It features the Intel H510 chipset and integrated Intel HD Graphics support. The motherboard supports dual-channel DDR4 memory with speeds of 2133/2400/2800MHz and supports XMP overclocking. It offers two memory slots and onboard Realtek 100/1000 Mbps LAN. The audio features include a 3.5mm port, 5.1 channel support, and LED audio support. The motherboard provides a range of I/O ports, including PS/2 mouse and keyboard ports, DP and HDMI ports, USB 2.0 and USB 3.0 ports, RJ45 LAN port, and audio jacks. Internal connectors consist of USB headers supporting both USB 2.0 and USB 3.0. Storage options include three SATA 3.0 6Gb/s ports and an M.2 slot supporting PCI-E 3.0 X4 NVME SSDs. With a micro-ATX form factor measuring 22cm X 17 cm, the AK-H510M EG is compact and suitable for smaller PC builds. It includes six mounting holes for secure installation and is compatible with Windows 7, 8, 8.1, and 10 (x64) operating systems.
