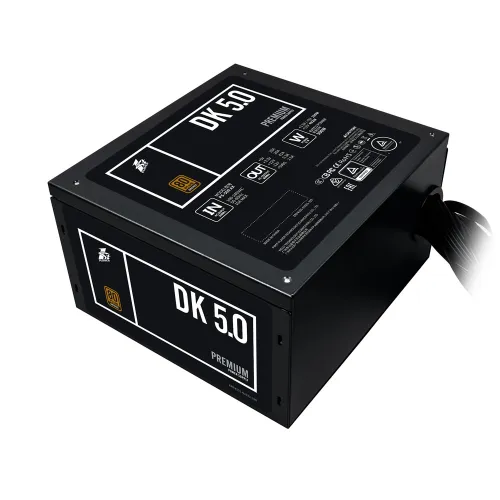

1STPLAYER DK 5.0 PS-500AX 500W 80 PLUS BRONZE Non-Modular ATX Power Supply

Price: To be announced
Status: Out Of Stock
Brand: 1STPLAYER

Key Features

  • MPN: PS-500AX
  • Double Forward + APFC
  • Fan Size: 120MM Hydraulic Bearing
  • Efficiency: 85% @ Typical Load
  • Japanese Main Capacitor
View More Info

Specification

General
Brand 1STPLAYER
Model DK 5.0
MPN PS-500AX
Key Features
Certification 80 PLUS BRONZE
Efficiency (Approx.) 85% @ Typical Load
Fan Size 120MM Hydraulic Bearing
Others PFC: Active PFC Protections: UVP, OVP, OPP, SCP, Lightning Protection Operation Temperature: 0~40℃ MTBF: 100,000 hours Circuit Structure: Double Forward Regulatory: CE/FCC/C-Tick/ROHS/CCC/cTUVus/IEC/EAC
Input
Current 10A MAX
Frequency Range 50-60Hz
Voltage 100-240 VAC
Output
Modular Type Non Modular
Total Power 500W
Warranty Information
Manufacturing Warranty 05 years

Description

1STPLAYER DK 5.0 PS-500AX 500W 80 PLUS BRONZE Non-Modular ATX Power Supply

The 1STPLAYER DK 5.0 PS-500AX 500W Power Supply is a great choice for gamers and PC builders looking for stable power delivery and solid efficiency on a budget. Backed by an 80 PLUS Bronze certification, it delivers up to 85% efficiency at typical loads, helping reduce energy waste and keeping your system cool and efficient.

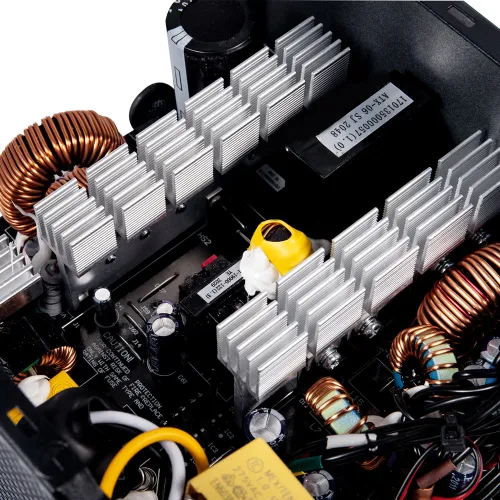

This 500W PSU uses a single +12V rail design that delivers up to 90% of the total rated power, providing strong and steady output—ideal for powering CPUs and GPUs without performance dips. It’s built with high-quality Japanese TK main capacitors, ensuring long-term durability and stable performance even under demanding conditions.

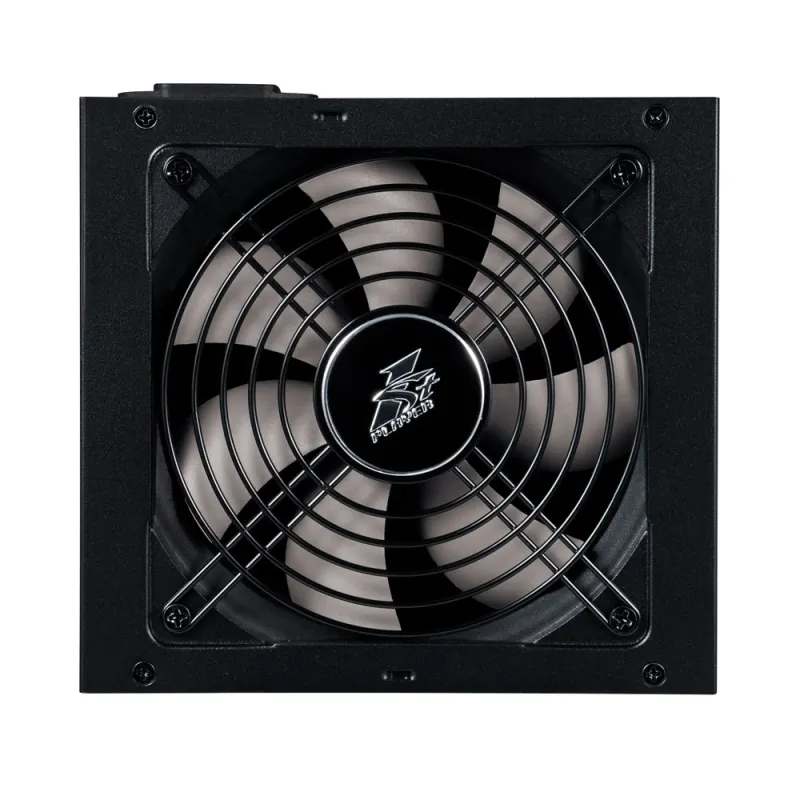

Cooling is handled by a quiet and reliable 120mm hydraulic bearing fan, striking a balance between efficient heat dissipation and silent operation. Whether you're working or gaming, your PC will stay cool and quiet.

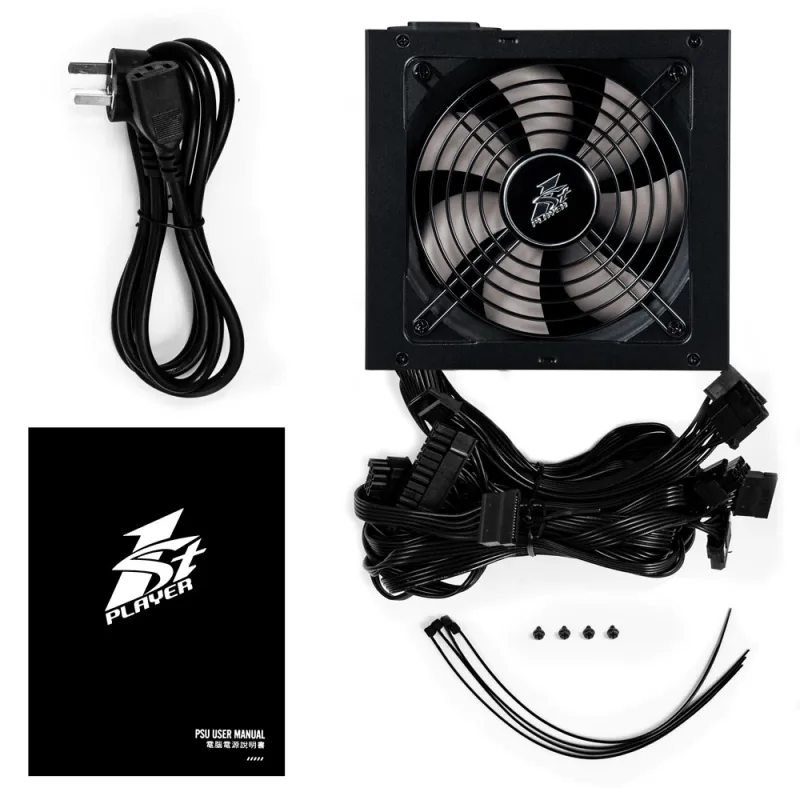

With its non-modular layout, the DK 5.0 comes with pre-attached flat black cables, including:

  • 1× 24-pin main power

  • 1× 4+4 pin CPU

  • 2× 6+2 pin PCIe for graphics cards

  • 3× SATA, 1× IDE

This setup simplifies installation for most mainstream builds and helps improve internal airflow with cleaner cable routing.

The DK 5.0 also supports ErP Lot 6 compliance, consuming just 0.5W in standby mode—making it more energy-efficient even when your system is idle. Plus, built-in protections like OVP, UVP, SCP, and OPP ensure your components stay safe from electrical faults.

With a 5-year warranty, the 1STPLAYER DK 5.0 500W PSU is a dependable power supply option for budget-conscious users who don’t want to compromise on quality, efficiency, or peace of mind.
