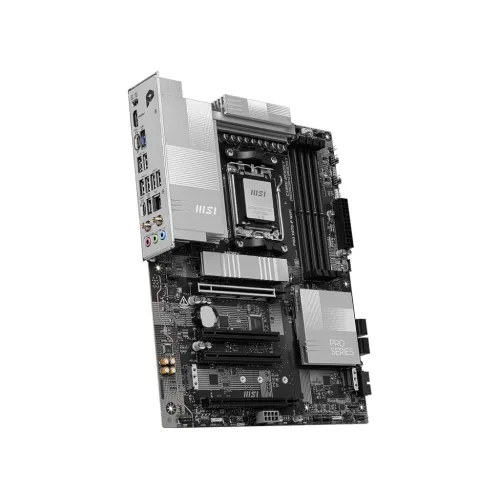

MSI PRO X870-P WIFI AM5 ATX Motherboard
Specification
| General | |
| Brand | MSI |
| Model | PRO X870-P WIFI |
| Memory | |
| Type | DDR5 |
| Slots | 4x UDIMM |
| Maximum Memory | 256GB |
| Supported Memory | Support DDR5 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Graphics | |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* |
| Basic Information | |
| Chipset | AMD X870 |
| Form Factor | ATX 243.84mmx304.8mm |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Expansion Slots | |
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Ports & Connector | |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
| Display Port (s) | 1x Type-C DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 2x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LAN Port (s) | Realtek 8126VB 5G LAN |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) |
| TPM (Trusted Platform Module) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
| Other Features | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
The MSI PRO X870-P WIFI AM5 ATX Motherboard, a premium motherboard engineered for gamers, professionals, and enthusiasts who demand top-tier reliability, speed, and future-ready features. Powered by the latest AMD X870 chipset, this board supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, making it a powerful base for any high-end AM5 platform build.
Designed with DDR5 dual-channel memory support, the motherboard accommodates speeds of up to 8200+ MHz (OC), ensuring blazing-fast performance and seamless multitasking. At its core is a robust 14+2+1 Duet Rail Power System, featuring dual 8-pin CPU connectors and advanced Core Boost and Memory Boost technologies to deliver clean, efficient power to the CPU and RAM, even during extreme workloads or overclocking.
To ensure long-term durability and superior signal integrity, the board utilizes an 8-layer PCB with 2oz thickened copper—ideal for high-performance systems. Cooling is managed by MSI’s Frozr Guard Thermal Solution, including extended heatsinks, 7W/mK thermal pads, choke pads, and EZ M.2 Shield Frozr II, keeping your components cool and stable under pressure.
DIY users will appreciate MSI’s EZ Clip series (M.2 Clip II, PCIe Clip II, Antenna) which simplifies installation of key hardware components. The inclusion of PCIe 5.0 x16 and Lightning Gen 5 x4 M.2 ensures top-tier data transfer rates for next-gen GPUs and SSDs, enhancing gaming responsiveness and professional productivity.
For connectivity, the PRO X870-P boasts USB4, Lightning USB 20G, Wi-Fi 7, and 5G LAN, enabling ultra-fast and reliable network performance. Audio enthusiasts will benefit from Audio Boost technology, delivering studio-grade 7.1-channel sound for immersive gameplay and content creation.
Built to support Windows 11 64-bit and packaged in a standard ATX form factor, the MSI PRO X870-P WIFI is a future-proof motherboard that brings power, speed, and intelligent design together in one complete solution.
