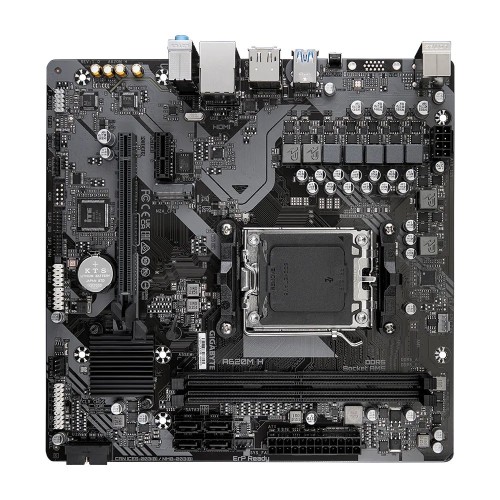

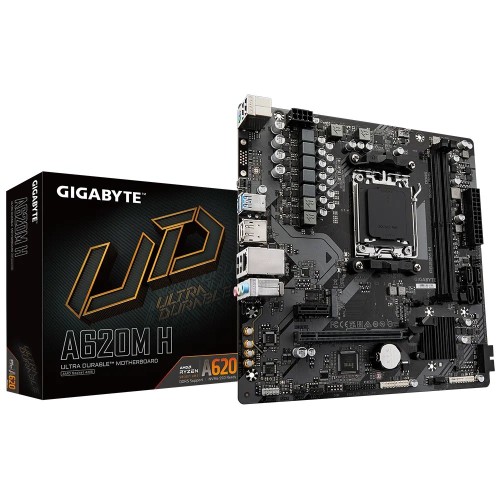

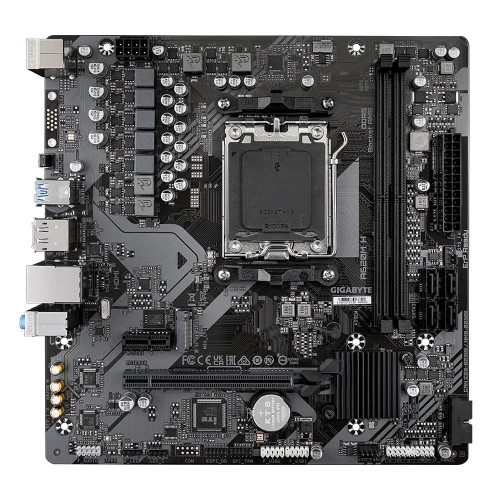

GIGABYTE A620M H AM5 Micro-ATX Motherboard
Specification
| General | |
| Brand | GIGABYTE |
| Model | A620M H |
| Memory | |
| Type | DDR5 |
| Slots | 2 x DIMM |
| Maximum Memory | Supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
| Supported Memory | 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Graphics | |
| Graphics | supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Basic Information | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD A620 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Ports & Connector | |
| Audio | 3 x audio jacks |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI |

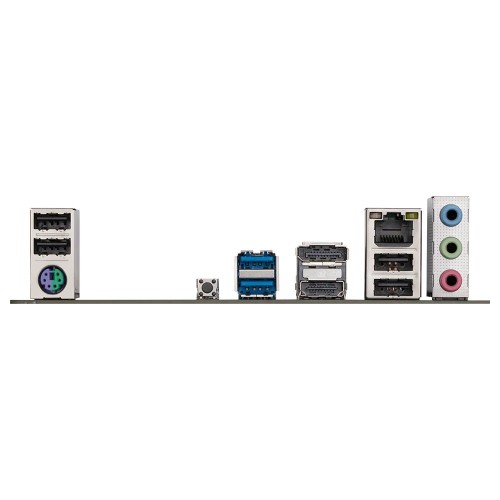

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Supported Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| USB (s) | CPU: 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB 2.0/1.1 port on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| Others | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Other Features | |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |
Description
GIGABYTE A620M H AM5 Micro-ATX Motherboard
The GIGABYTE A620M H AM5 Micro-ATX Motherboard is a compact yet powerful motherboard engineered for AMD's latest desktop platforms. Built on the AMD A620 chipset and supporting AMD Ryzen 7000, 8000, and 9000 Series processors, this board offers a reliable and forward-compatible foundation for modern PC builds.
Designed around the AM5 socket, it features a 5+2+2 phase digital VRM power solution, delivering stable and efficient power to your CPU for both daily use and performance-demanding tasks. Whether you're gaming, working, or multitasking, the GIGABYTE A620M H ensures rock-solid system stability.
It supports the latest DDR5 memory technology with dual-channel support and up to 2 DIMM slots, accommodating high-speed AMD EXPO and Intel XMP modules for enhanced bandwidth and system responsiveness.
For lightning-fast storage, this board includes a PCIe 4.0 x4 M.2 slot, ensuring ultra-quick boot times and seamless application loading when paired with high-performance NVMe SSDs.
Installation and upgrades are simplified thanks to GIGABYTE's EZ-Latch PCIe x16 slot, allowing tool-free GPU installation. Smart Fan 6 with multiple hybrid fan headers and FAN STOP technology ensures intelligent cooling, keeping your build quiet and cool under load.
The GIGABYTE A620M H AM5 also offers strong connectivity with Gigabit Ethernet (GbE) for reliable wired networking, and HDMI and DisplayPort outputs for flexible display configurations.
For added convenience, Q-Flash Plus allows BIOS updates without needing a CPU, RAM, or graphics card, making future upgrades hassle-free.
Compact, reliable, and future-ready, the GIGABYTE A620M H AM5 Micro-ATX Motherboard is the perfect foundation for an affordable high-performance AMD desktop.
