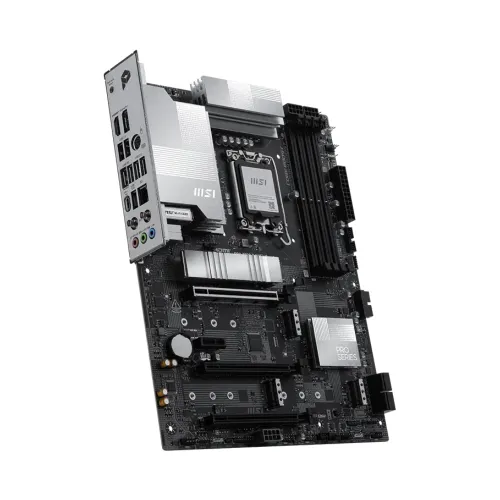

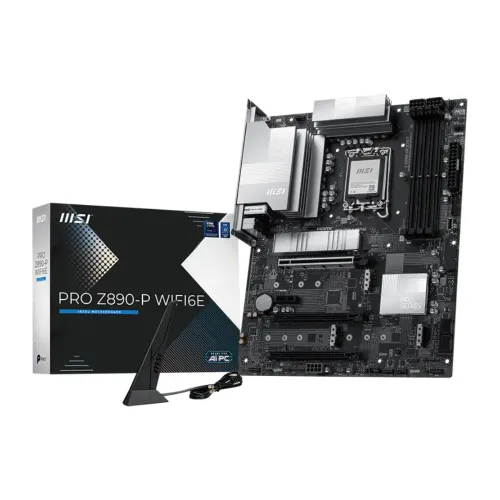

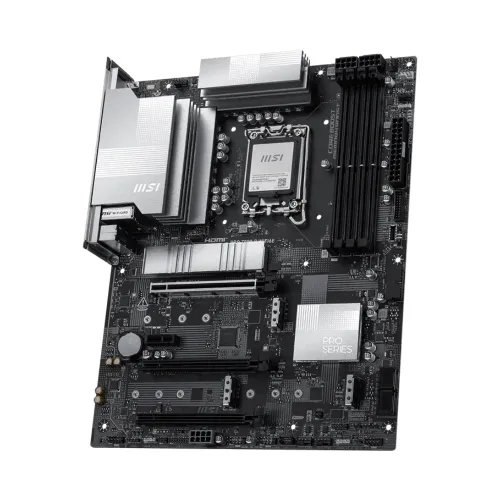

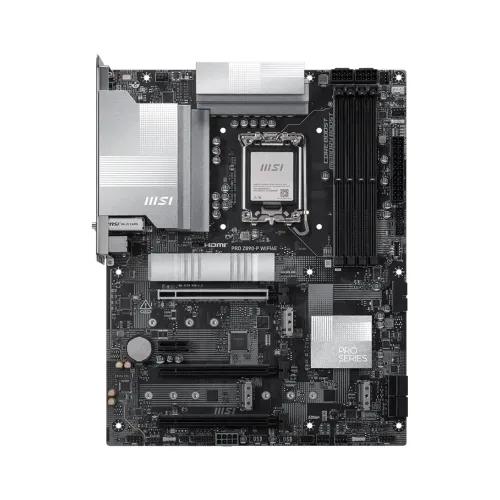

MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard

Name: MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard
Brand: MSI
SKU: PRO Z890-P WIFI6E
Price: 35000.00 BDT
Availability: InStock

Price: 35,000৳

Regular Price: 38,500৳

Status: In Stock

Brand: MSI

Key Features

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5 UDIMM, Up to 9200 (OC) MT/s, Max 256GB
Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
Features: 4x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3

View More Info

Payment Options

35,000৳ 38,500৳

Cash Discount Price

Online / Cash Payment

Special Price: 35,000৳

View Banks EMI Plans

Specification

General
Brand	MSI
Model	PRO Z890-P WIFI6E
Memory
Type	DDR5
Slots	4x UDIMM
Maximum Memory	256GB
Supported Memory	Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Graphics
Graphics	1x HDMI 2.1 1x DisplayPort 1.4
Basic Information
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
BIOS	Flash BIOS Button
Chipset	INTEL Z890
Form Factor	ATX 243.84mmx304.8mm
Supported CPU	Intel Core Ultra Processors (Series 2)
Expansion Slots
M.2 Socket	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
PCI	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Ports & Connector
Audio	1x Front Audio (JAUD)
Display Port (s)	1x DisplayPort 1.4
HDMI	1x HDMI 2.1
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
LAN Port (s)	Realtek 8126 5Gbps LAN
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
TPM (Trusted Platform Module)	1x TPM pin header(Support TPM 2.0)
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
Wireless Communication module	Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Other Features
Special Features	LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty	03 Years Warranty

Description

The MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard for Intel Core Ultra Series 2 processors through the LGA 1851 socket. This motherboard supports four DDR5 UDIMM slots with a maximum capacity of 256GB and overclocking speeds up to 9200+ MT/s.

The MSI PRO Z890-P WIFI6E ATX Motherboard includes three PCIe x16 slots and one PCIe x1 slot, with PCI_E1 running PCIe 5.0 x16 directly from the CPU. Four M.2 slots support PCIe 5.0 and PCIe 4.0 NVMe drives, with the fourth slot also supporting SATA mode for added flexibility. The MSI LGA 1851 Motherboard provides four SATA 6G ports with RAID 0, 1, 5, and 10 support for both SATA and M.2 NVMe storage devices.

This comprehensive RAID support gives users flexible options for data redundancy and performance configurations. The MSI PRO Z890-P WIFI6E Motherboard features Realtek ALC897 7.1-channel high-definition audio for immersive sound during gaming and media playback. Onboard graphics output includes one HDMI 2.1 port and one DisplayPort 1.4, both supporting 4K at 60Hz.

The MSI LGA 1851 Motherboard offers extensive USB connectivity, including USB 10Gbps Type-A, USB 10Gbps Type-C, and USB 20Gbps Type-C ports. Realtek 8126 5Gbps LAN delivers fast wired networking for demanding online gaming and large file transfers. The MSI ATX Motherboard includes built-in Wi-Fi 6E supporting 2.4GHz, 5GHz, and 6GHz bands up to 2.4Gbps, alongside Bluetooth 5.3.

MSI PRO Z890-P WIFI6E Motherboard has three Addressable V2 RGB headers and one standard RGB header support extensive lighting customization options. The MSI DDR5 Motherboard provides five system fan headers, a CPU fan header, and a combo pump and system fan header for comprehensive cooling control. Four EZ Debug LEDs simplify troubleshooting during system builds and upgrades. A TPM 2.0 header adds hardware-level security support for Windows 11 systems. The MSI Motherboard measures 243.84mm by 304.8mm in standard ATX form factor, fits most ATX cases.
