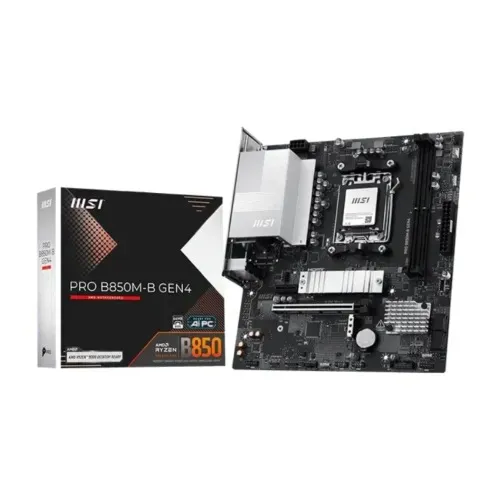

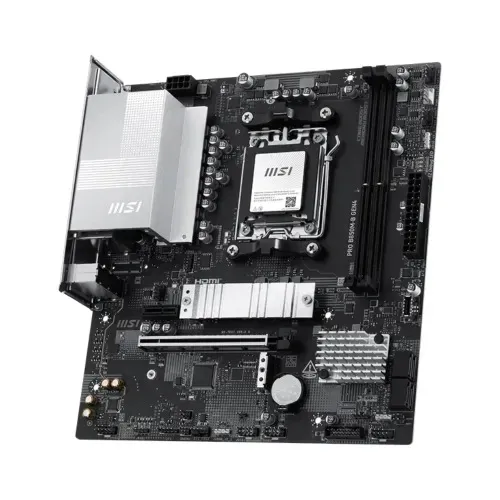

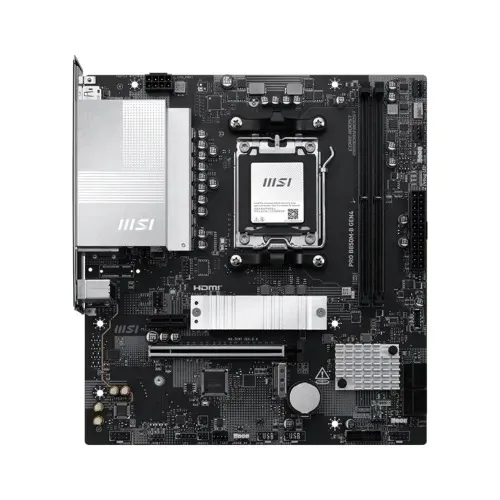

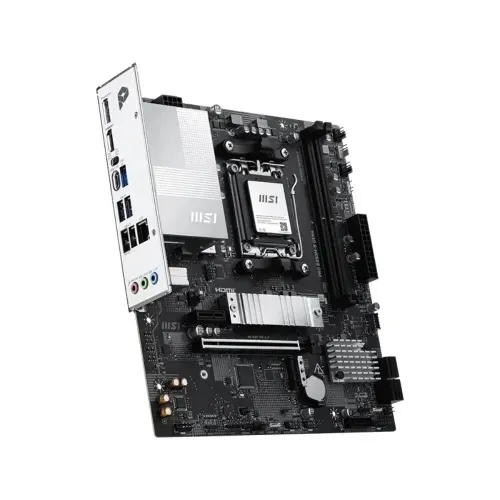

MSI PRO B850M-B GEN4 AM5 mATX Motherboard

Name: MSI PRO B850M-B GEN4 AM5 mATX Motherboard
Brand: MSI
SKU: PRO B850M-B GEN4
Price: 18500.00 BDT
Availability: InStock

Price: 18,500৳

Regular Price: 20,350৳

Status: In Stock

Brand: MSI

Key Features

Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series, Socket AM5
Supported RAM: 2x DDR5 UDIMM, Up to 8200 (OC) MT/s, Max 128GB
Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
Features: 2x M.2, Realtek 8125 2.5G LAN, 7.1-Channel Audio

View More Info

Payment Options

18,500৳ 20,350৳

Cash Discount Price

Online / Cash Payment

Special Price: 18,500৳

View Banks EMI Plans

Specification

General
Brand	MSI
Model	PRO B850M-B GEN4
Memory
Type	DDR5
Slots	2x UDIMM
Maximum Memory	128GB
Supported Memory	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Graphics
Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Basic Information
Audio	Realtek ALC897 7.1-Channel High Definition Audio
BIOS	Flash BIOS Button
Chipset	AMD B850
Form Factor	mATX 226mmx243.84mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Expansion Slots
M.2 Socket	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Ports & Connector
Audio	1x Front Audio (JAUD)
Display Port (s)	1x DisplayPort 1.4
HDMI	1x HDMI 2.1
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LAN Port (s)	Realtek 8125 2.5G LAN
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
TPM (Trusted Platform Module)	1x TPM pin header(Support TPM 2.0)
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
Other Features
Special Features	LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty	3 Years Warranty

Description

MSI PRO B850M-B GEN4 AM5 mATX Motherboard

The MSI PRO B850M-B GEN4 AM5 mATX Motherboard comes with advanced AMD B850 chipset. This Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors through the latest AM5 socket platform architecture. This MSI PRO B850M-B GEN4 mATX Motherboard supports dual-channel DDR5 memory with two UDIMM slots and maximum memory capacity support up to 128GB.

MSI DDR5 Motherboard technology supports memory speeds from DDR5 8200 MT/s to 5600 MT/s overclocked and 5600 MT/s to 4800 MT/s JEDEC speeds. MSI PRO B850M-B GEN4 Motherboard supports AMD EXPO memory overclocking, AMD POR speed, non-ECC unbuffered memory, dual-channel mode, and CUDIMM compatibility. Ryzen 9000 Series processors support maximum memory overclocking frequencies up to 8200+ MT/s for 1DPC 1R and 8000+ MT/s for 1DPC 2R. MSI AM5 Motherboard graphics connectivity includes HDMI 2.1 and DisplayPort 1.4 outputs supporting smooth 4K 60Hz display performance for entertainment and professional workloads.

The motherboard provides one PCIe 4.0 x16 slot from the CPU and one PCIe 3.0 x1 slot from the chipset for expansion flexibility. MSI PRO B850M-B GEN4 AM5 Micro ATX Motherboard includes two M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4 SSD storage performance. The motherboard also offers four SATA 6G ports with RAID 0, RAID 1, and RAID 10 support for flexible storage management. MSI Motherboard connectivity includes Realtek 8125 2.5G LAN, USB 10Gbps Type-C, USB 5Gbps Type-A ports, and multiple front USB connections.

Realtek ALC897 7.1-channel high-definition audio delivers clear and immersive sound quality for gaming, entertainment, streaming, and professional productivity tasks. MSI PRO B850M-B GEN4 Motherboard also features RGB connectors, TPM 2.0 support, EZ Debug LEDs, efficient cooling headers, and Windows 11 compatibility within a durable 226mm x 243.84mm mATX design.

Buy MSI PRO B850M-B GEN4 AM5 mATX Motherboard from SkylandBD

In Bangladesh, you can get original MSI PRO B850M-B GEN4 AM5 mATX Motherboard From SkylandBD. We have a large collection of latest MSI Motherboard to purchase for your Desktop. Order Online Or Visit your Nearest SkylandBD Shop to get yours at lowest price.The MSI PRO B850M-B GEN4 AM5 mATX Motherboard has 3 year warranty.
