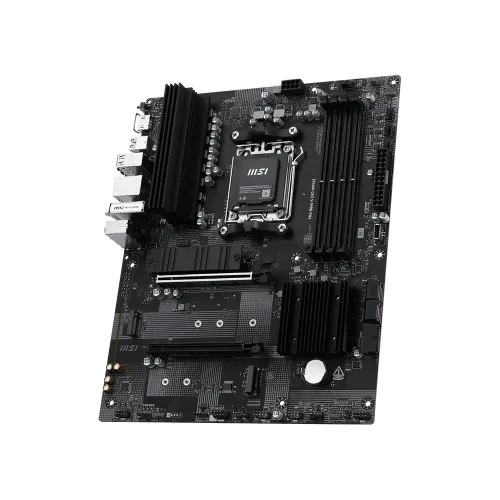

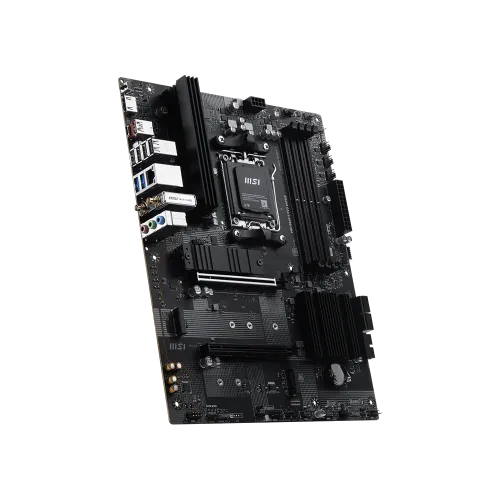

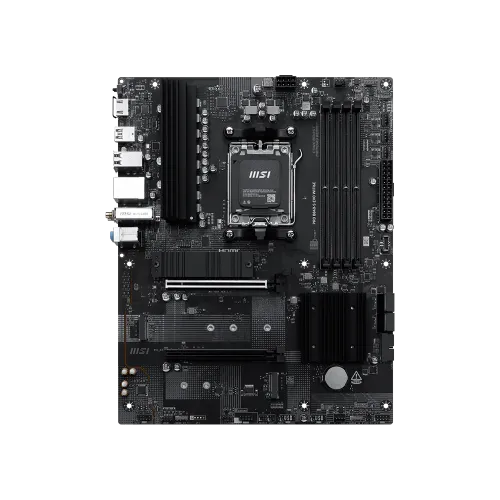

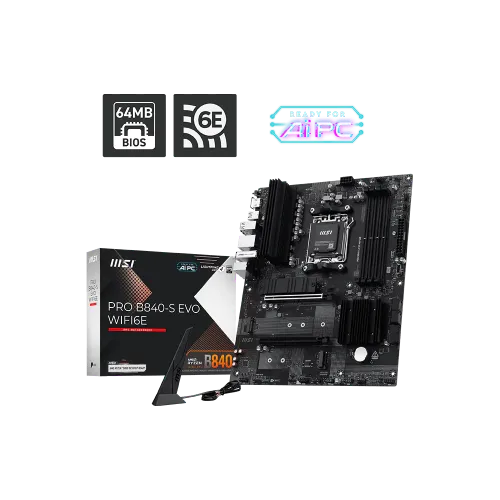

MSI PRO B840-S EVO WIFI6E AM5 DDR5 Motherboard
Key Features
- Audio Boost 2.5G LAN and Wi-Fi 7
- Support for DDR5 8000 MHz memory (OC)
- Frozr Guard: Extended Heatsink, MOSFET thermal pads
- Supports for AMD Ryzen 7000/8000/9000 series desktop processors
Specification
| General | |
| Brand | MSI |
| Model | PRO B840-S EVO WIFI6E |
| Memory | |
| Type | DDR5 |
| Slots | 4x SATA 6Gb/s ports |
| Maximum Memory | Up to 256 GB |
| Supported Memory | 4x DDR5 UDIMM slots, Dual-Channel (Speeds up to 8000+ MT/s OC via AMD EXPO™) |
| Graphics | |
| Graphics | Integrated Graphics (dependent on CPU) |
| Basic Information | |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| BIOS | UEFI AMI BIOS with Flash BIOS Button support |
| Form Factor | ATX Form Factor (243.84 mm x 304.8 mm) |
| Supported CPU | Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors (Socket AM5) |
| Expansion Slots | |
| M.2 Socket | 3x M.2 slots total (M.2_1 & M.2_2 up to PCIe 4.0 x4 from CPU; M.2_3 up to PCIe 3.0 x4 from Chipset) |
| PCI | 2x PCI-E x16 slots (PCI_E1 supporting up to PCIe 4.0 x16; PCI_E2 supporting up to PCIe 3.0 x4) |
| External Features | |
| I/O Port | 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 ports |
| Ports & Connector | |
| Display Port (s) | Supported via integrated processor graphics layout |
| HDMI | 1x HDMI™ port (Supports HDMI™ 2.1, max resolution up to 4K 60Hz) |
| Internal I/O Ports | 1x 24-pin ATX, 1x 8-pin CPU power, CPU/Pump/System fan headers, 2x Addressable V2 RGB, 1x RGB LED connector, Front Audio, System panel, COM port |
| LAN Port (s) | 1x Realtek® 8125D 2.5G LAN port |
| RAID | RAID 0, 1, 10 for SATA; RAID 0, 1 for M.2 NVMe storage |

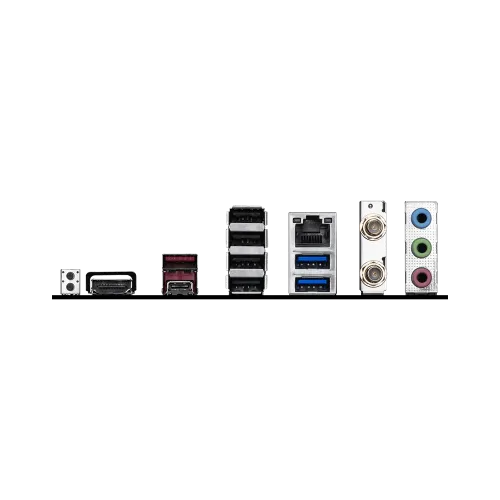

| Rear I/O | 1x USB 10Gbps Type-C, 1x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 ports |
| Supported Storage | NVMe M.2 and SATA 6Gb/s storage devices |
| TPM (Trusted Platform Module) | TPM pin header supporting TPM 2.0 |
| Wireless Communication module | Wi-Fi 6E (M.2 Key-E slot) supporting Tri-band (2.4GHz/5GHz/6GHz) up to 2.4Gbps + Bluetooth® 5.3 |
| Other Features | |
| Special Features | Frozr Guard (Extended Heatsink & MOSFET thermal pads), EZ Debug LED, EZ Memory Detection LED, Flash BIOS Button, Clear CMOS Button, AMD EXPO™ Support |
| Warranty Information | |
| Manufacturing Warranty | 3 Years Limited Warranty |
Description
The MSI PRO B840-S EVO WIFI6E motherboard, now available at Skyland Computer Bangladesh. Engineered specifically for the AM5 socket, this motherboard is optimized to harness the robust computing power of AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors## Elevate Your Rig with the MSI PRO B840-S EVO WIFI6E Motherboard from Skyland
Looking to build a future-proof, high-performance system for gaming, content creation, or everyday productivity? Look no further than the PRO B840-S EVO WIFI6E motherboard, now available at Skyland Computer BD. Designed to handle the rigorous demands of modern AI PCs and high-end processors, this motherboard combines stability, speed, and sleek aesthetics to anchor your dream desktop setup.
Key Features & Performance Benefits
-
Next-Gen Connectivity: Stay ahead of the curve with ultra-fast Wi-Fi 6E integration, ensuring seamless online gaming, lag-free 4K streaming, and rapid file transfers without the clutter of physical cables.
-
Optimized for AI & Power: Engineered as part of MSI’s reliable PRO series, it provides stable power delivery and smart thermal solutions to keep your hardware running at peak efficiency, even under heavy multi-tasking workloads.
-
Sleek & Durable Design: Featuring a professional dark aesthetic paired with robust component builds, the PRO B840-S EVO WIFI6E ensures long-lasting durability while maintaining a clean, modern look inside any tempered glass chassis.
-
Seamless Expansion: Enjoy versatile connectivity options for high-speed storage, discrete graphics cards, and peripheral devices, making future upgrades simple and straightforward.
Why Buy from Skyland Computer BD?
At Skyland, we are committed to bringing authentic, top-tier PC components to tech enthusiasts across Bangladesh. When you purchase the PRO B840-S EVO WIFI6E from us, you get guaranteed product authenticity, competitive pricing, and dedicated customer support to help you build and maintain your ultimate machine.
Upgrade your PC foundation today with Skyland and experience the true potential of modern computing!
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding MSI PRO B840-S EVO WIFI6E AM5 DDR5 Motherboard
What is the price of MSI PRO B840-S EVO WIFI6E AM5 DDR5 Motherboard in Bangladesh? expand_more
The latest price of MSI PRO B840-S EVO WIFI6E AM5 DDR5 Motherboard in Bangladesh is 20,800৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is MSI PRO B840-S EVO WIFI6E AM5 DDR5 Motherboard currently in stock at Skyland? expand_more
Yes, MSI PRO B840-S EVO WIFI6E AM5 DDR5 Motherboard is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with MSI PRO B840-S EVO WIFI6E AM5 DDR5 Motherboard? expand_more
MSI PRO B840-S EVO WIFI6E AM5 DDR5 Motherboard comes with 3 Years Limited warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
