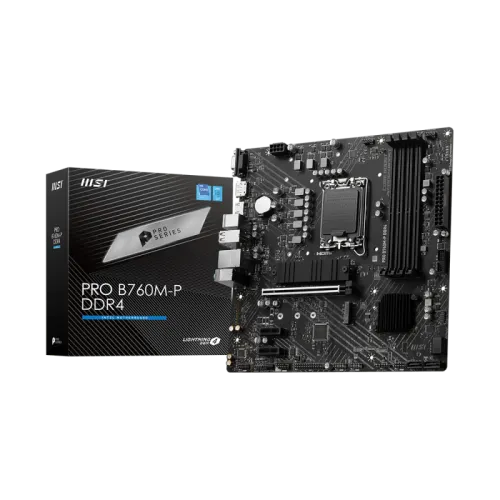

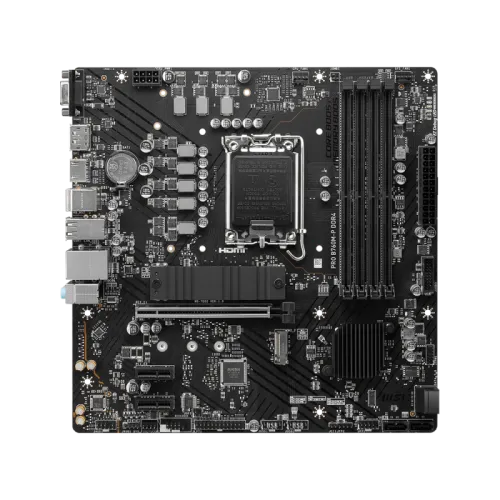

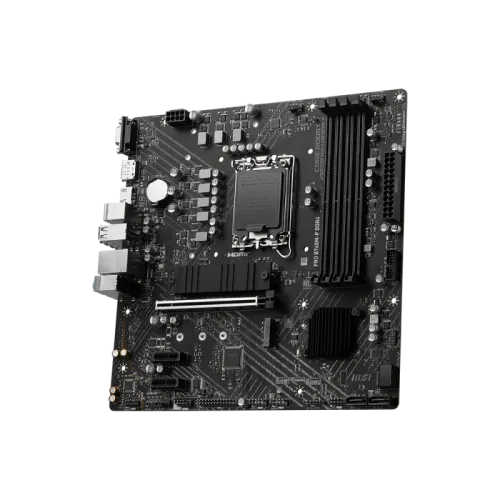

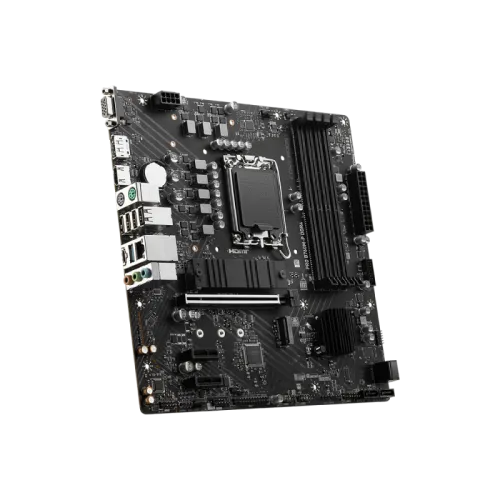

MSI PRO B760M-P DDR4 mATX Motherboard

Name: MSI PRO B760M-P DDR4 mATX Motherboard
Brand: MSI
SKU: PRO B760M-P DDR4

Status: Upcoming

Model: PRO B760M-P DDR4

Brand: MSI

Warranty: 3 years

Order / Inquiry on WhatsApp Messenger

Key Features

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR4, Max 128GB 4800(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
Features: 2x M.2 slot, Realtek RTL8111H Gigabit LAN

View More Info

Specification

General
Brand	MSI
Model	PRO B760M-P DDR4
Memory
Type	DDR4
Slots	4
Maximum Memory	128GB
Supported Memory	4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Graphics
Graphics	1x HDMI 1x DisplayPort 1x VGA Support HDMI 1.4, maximum resolution of 4K 30Hz Support DP 1.4, maximum resolution of 4K 60Hz Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Basic Information
Audio	Realtek RTL8111H Gigabit LAN
Chipset	INTEL B760
Form Factor	mATX 243.84mmx243.84mm
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Expansion Slots
PCI	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Ports & Connector
Display Port (s)	1x DisplayPort
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A
LAN Port (s)	Realtek RTL8111H Gigabit LAN
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supported Storage	2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port
TPM (Trusted Platform Module)	1x TPM pin header(Support TPM 2.0)

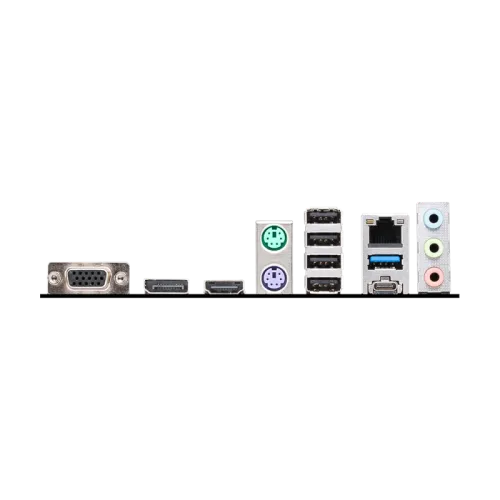

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear)
VGA (s)	1x VGA
Other Features
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

Description

MSI PRO B760M-P DDR4 mATX Motherboard

Build a high-performance, budget-conscious desktop setup with the MSI PRO B760M-P DDR4 mATX Motherboard, available at Skyland.com.bd. Engineered to support 14th, 13th, and 12th Gen Intel Core processors on the LGA 1700 socket, this micro-ATX motherboard combines dual M.2 NVMe slots, high-speed USB 3.2 Gen 2x2 connectivity, 2.5G LAN, and PCIe Steel Armor in a compact form factor.

Robust Power Delivery & Enhanced Thermal Engineering

12+1 Duet Rail Power System: Features P-PAK power design, digital PWM control, and 8-pin + 4-pin CPU power connectors to ensure stable voltage for demanding multi-core processors.
Extended Heatsink & M.2 Shield Frozr: Heavy-duty VRM heatsinks alongside M.2 Shield Frozr keep critical components cool, preventing thermal throttling during intense gaming and heavy workloads.
2oz Thickened Copper PCB: 6-layer PCB with thickened copper improves heat dissipation, signal integrity, and system stability under load.

High-Speed Expansion & Storage Options

Four Dual-Channel DDR4 Slots: Supports up to 128GB of DDR4 RAM with Intel XMP profiles and Memory Boost technology for optimized signal routing.
PCIe 4.0 Steel Armor Slot: Reinforced x16 slot with extra solder points prevents GPU sagging and protects against mechanical stress from heavy graphics cards.
Dual M.2 Gen4 & 4x SATA Ports: Accommodates high-speed NVMe SSDs (PCIe 4.0 x4) and up to four SATA III drives for extensive file storage configurations.

Next-Gen Connectivity & Protection

2.5G Ethernet & Fast USB: Built-in 2.5Gbps LAN delivers rapid wired network performance, complimented by a high-speed rear USB 3.2 Gen 2x2 Type-C (20Gbps) port.
Double ESD Protection: Grounding layers around mounting holes guard internal circuits against static discharge spikes during assembly and operation.
