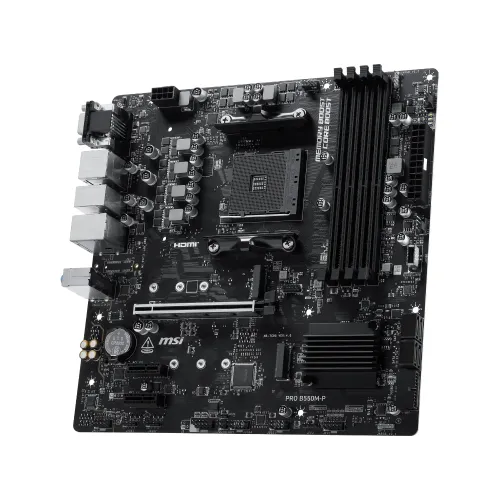

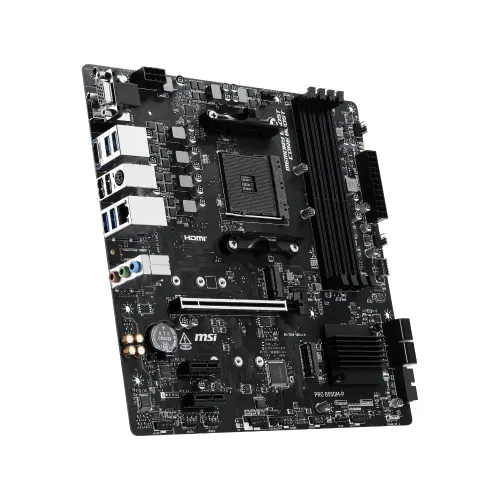

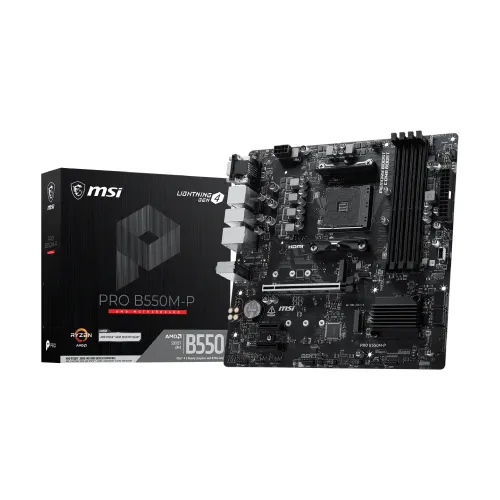

MSI PRO B550M-P AMD AM4 mATX Motherboard
Key Features
- AMD B550 Chipset For AM4
- Micro-ATX Compact Motherboard Design
- Supports Compatible AMD Ryzen Processors
- DDR4 Memory Support For Performance
- Ideal Gaming And Productivity PC Builds
Specification
search
| General | |
| Brand | MSI |
| Model | B550M-P |
| Memory | |
| Type | DDR4 |
| Slots | 4x DDR4 |
| Maximum Memory | Up to 128GB |
| Supported Memory | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4400+ MT/s • 1DPC 2R Max speed up to 3733+ MT/s • 2DPC 1R Max speed up to 3866+ MT/s • 2DPC 2R Max speed up to 3466+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode |
| Graphics | |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
| Basic Information | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Chipset | AMD B550 |
| Form Factor | mATX 243.84mmx243.84mm |
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4 |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Ports & Connector | |
| Display Port (s) | 1x DisplayPort 1.4 |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| LAN Port (s) | Realtek RTL8111H 1Gbps LAN |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G |
| TPM (Trusted Platform Module) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
| VGA (s) | 1x VGA |
| Warranty Information | |
| Warranty | 3 Years |
Description
The MSI PRO B550M-P AMD AM4 mATX Motherboard is a reliable and practical motherboard designed for building versatile AMD-based desktop PCs. Featuring the AMD B550 chipset and AM4 socket, it supports compatible AMD Ryzen desktop processors and provides a solid foundation for gaming PCs, office systems, workstations, and everyday computing builds. Its Micro-ATX form factor makes it suitable for compact PC cases while still providing essential expansion and connectivity options for modern components. The motherboard supports DDR4 memory, allowing users to build a responsive system with compatible RAM, while its PCIe connectivity provides support for dedicated graphics cards and other expansion devices. Designed with a practical layout and dependable power delivery, the MSI PRO B550M-P is suitable for users looking to build or upgrade an AM4-based desktop system. With its combination of AMD platform compatibility, compact form factor, and essential connectivity, it offers a dependable foundation for budget-conscious and performance-oriented PC builds.
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding MSI PRO B550M-P AMD AM4 mATX Motherboard
What is the price of MSI PRO B550M-P AMD AM4 mATX Motherboard in Bangladesh? expand_more
The latest price of MSI PRO B550M-P AMD AM4 mATX Motherboard in Bangladesh is 13,699৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is MSI PRO B550M-P AMD AM4 mATX Motherboard currently in stock at Skyland? expand_more
Yes, MSI PRO B550M-P AMD AM4 mATX Motherboard is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with MSI PRO B550M-P AMD AM4 mATX Motherboard? expand_more
MSI PRO B550M-P AMD AM4 mATX Motherboard comes with 3 Years warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
