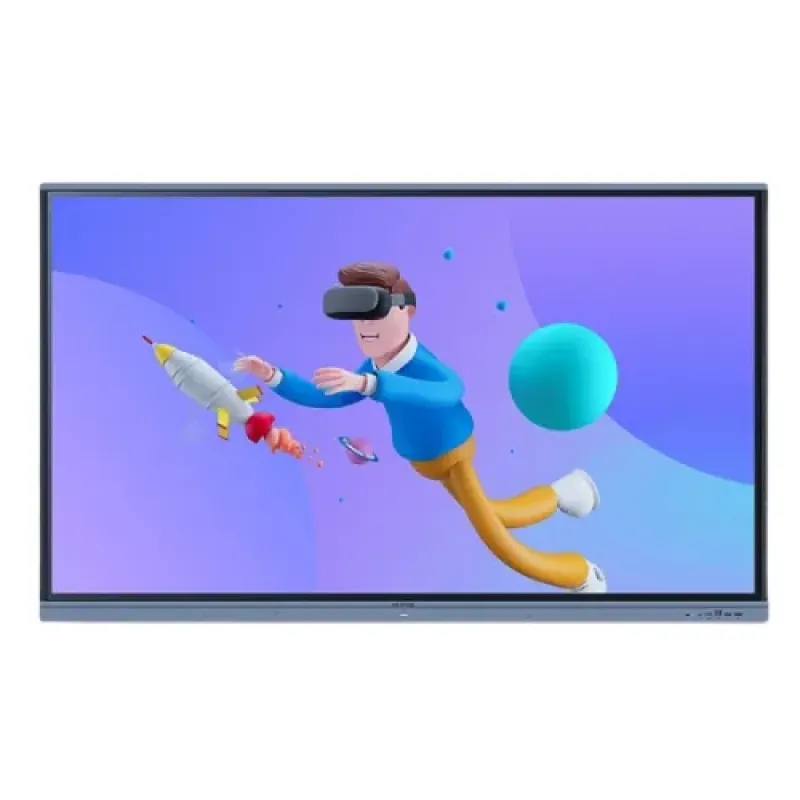

Maxhub E7520 75 4K UHD Interactive Flat Panel Display
Key Features
- UHD 4K Display with Resolution of 3840×2160
- RAM: 4GB, Built-in Storage: 32GB
- Speaker: Built-in 2× 12W
- Multitouch: Up to 40 touch points
Specification
| General | |
| Brand | Maxhub |
| Model | E7520 |
| Touch System | |
| Touch Point | 40-point multi-touch |
| Touch Response Time | +1.5ms |
| Touch Tool | Finger, Gesture, Stylus +1.5ms |
| Display Features | |
| Panel Type | DLED |
| Connectivity | |
| Audio out | AUDIO OUT × 1 |
| LAN | LAN × 2 |
| Others | SPDIF × 1 OPS Slot: Module slot × 1 Wi-Fi 6 (802.11ac/b/g/n/a/ax) Bluetooth: Bluetooth v5.2 |
| PC Audio In | AUDIO IN × 1 |
| RS232 | 1x RS232 |
| Touch Output | Touch OUT × 2 |
| USB | USB 3.0 × 4, USB 2.0 × 1, Type-C × 1 |
| VGA | VGA IN × 1 |
| HDMI | HDMI × 4 |
| Display Details | |
| Aspect Ratio | 16:9 |
| Brightness (typical) | 350 nits |
| Contrast Ratio | 1,200: 1 (Typ.) |
| Display Colors | 1.07B (10bit) |
| Display Format Native Resolution | 4K Ultra HD 3840 × 2160 |
| Life Time | ≥ 50,000 Hours |
| Others | Screen Level: A-Level Glass Treatment: Anti-glare, Tempered Glass Thickness: 3mm Color Accuracy: Delta E ≤ 2 Color Gamut (typ.): 72% NTSC Backlight: DLED Bonding; Zero parallax TüV Rheinland Flicker Free: Yes TüV Rheinland Low Blue Light: Yes SGS Antibacterial⁴: Stylus, Power Button Protection Glass(optional) |
| Picture Response Time | 8ms |
| Refresh Frequency | 60Hz |
| Viewing Angle | 178°(H/V) |
| Operating System | |
| CPU | 2.0GHz quad core ARM A55 |
| GPU | Mali-G52 MP2 |
| Others | Sound Channel: 2.0 Power Output: 2 × 12w |
| RAM | 4GB |
| ROM | 32GB |
| System Version | Android 11 |
| Physical Specification | |
| Others | VESA: 800 × 400mm, M8 × 25mm Power Saving Energy Star Certification Power Consumption (typ.): 400W (including OPS) Operating Temperature: 0℃-40℃ Storage Temperature: -20℃-60℃ Operating Humidity: 10%-90% RH Storage Humidity: 10%-90% RH |
| Power | AC 100~240V 50/60Hz |
| Standby Power | ≤ 0.5W |
| Dimensions | 1709.1 × 1019.9 × 87.6mm |
| Weight | Net Weight: 47.90 Kg Gross Weight: 61.65 Kg |
| Warranty Information | |
| Warranty | 3 Years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue) |
Description
The Maxhub E7520 75" 4K UHD Interactive Flat Panel Display is an innovative solution for high-performance collaboration in professional and educational settings. This Maxhub Interactive Flat Panel has a native 4K Ultra HD resolution (3840 × 2160) and a 16:9 aspect ratio, with 1.07 billion colors (10-bit), good color accuracy (Delta E < 2), and a wide 72% NTSC color gamut. The Maxhub E7520 Interactive Flat Panel reproduces rich images with a 350-nit brightness, 1,200:1 contrast ratio, and 178° viewing angle for immersive viewing from any angle. It also has a quick 8 ms reaction time and a smooth 60 Hz refresh rate, making it perfect for interactive presentations, video playback, and digital collaboration. The screen has an A-level 3mm tempered glass panel and zero-parallax bonding, as well as anti-glare treatment for excellent visibility in bright surroundings. TÜV Rheinland-certified Flicker-Free and Low Blue Light features keep users' eyes safe during long sessions, while SGS-certified antibacterial protection on the stylus and power button improves cleanliness. The Maxhub E7520 75" Interactive Flat Panel provides 40-point multi-touch with intelligent infrared touchscreen technology, allowing for smooth interaction by finger, gesture, or the passive dual-nib stylus, all with a +1.5ms touch reaction time. The Maxhub E7520 Flat Panel runs Android 11 and is powered by a 2.0GHz quad-core ARM A55 CPU, Mali-G52 MP2 GPU, 4GB RAM, and 32GB ROM, allowing for smooth and quick performance. Its built-in 2.0-channel audio system, which includes two 12W speakers, produces strong, clear sound. The Maxhub E7520 75-inch Interactive Flat Panel is easy to integrate into a variety of tech ecosystems thanks to its broad connectivity choices, which include 4 HDMI ports, VGA, USB 3.0 and 2.0, Type-C, LAN, RS232, SPDIF, and an OPS slot. Advanced wireless connection, including Wi-Fi 6 and Bluetooth 5.2, allows for more flexible engagement and device compatibility. This energy-efficient display, measuring 1709.1 × 1019.9 × 87.6mm and weighing 47.90 Kg, is VESA-mount compatible and uses just 0.5W in standby and 400W during normal usage (including OPS). It is also ENERGY STAR certified. With a lifespan of over 50,000 hours and the ability to resist a wide range of climatic conditions, the Maxhub E7520 75" Interactive Flat Panel Display is the ultimate all-in-one interactive solution for dynamic, modern collaboration spaces.
