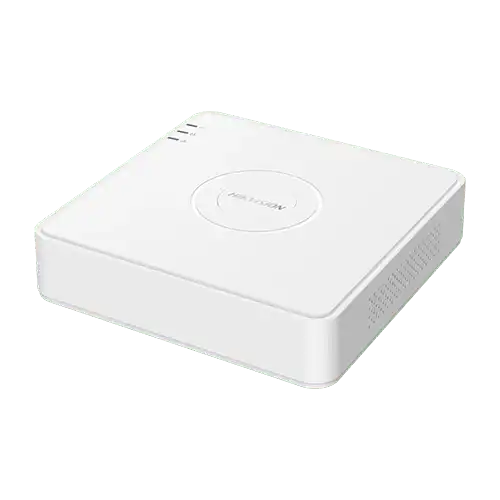

Hikvision iDS-7116HQHI-M1/S 16 Channel AcuSense DVR
Key Features
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 24-ch IP camera inputs (up to 6 MP)
- Encoding ability up to 3K/5M Lite @ 12 fps
Found this item cheaper elsewhere?
Request Price Match & get bonus Star Points!
chevron_right
Specification
search
| Auxiliary Interface | |
| USB | Rear panel: 2 × USB 2.0 |
| General | |
| Brand | Hikvision |
| Model | iDS-7116HQHI-M1/S |
| Recording Features | |
| Bit Rate | 32 Kbps to 6 Mbps |
| Record Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Resolution | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Detection And Alarm | |
| Alarm Input | N/A |
| Video Detection | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported |
| Storage | |
| Internal HDD | 1 SATA interface |
| Network & Connectivity | |
| Ethernet Port | 1, RJ45 10M/100M/1000M |
| Network Function | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Power | |
| Power Supply | 12 VDC, 2A |
| Power Consumption | ≤ 24W |
| Physical Specification | |
| Dimensions | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) |
| Weight | ≤ 1 kg (2.2 lb) |
| Other Features | |
| Other Features | Stream Type: Video, Video & Audio Audio Compression: G.711u Audio Bitrate: 64 Kbps |
| Warranty Information | |
| Manufacturing Warranty | 01-Year Warranty |
help_outline
Notice an incorrect specification or missing detail?
Description
The Hikvision iDS-7116HQHI-M1/S 16-Channel AcuSense DVR is a sophisticated surveillance system that uses deep learning technology to improve security. Motion Detection 2.0 is used to help the classification of human and vehicle targets, greatly lowering false alarms from unrelated items. With four channels and cutting-edge perimeter protection features like Line Crossing Detection and Intrusion Detection, the Hikvision iDS-7116HQHI-M1/S 16-Channel DVR has it all. A wide variety of video inputs are supported, such as HDTVI, AHD, CVI, CVBS, and IP. It can manage up to 24 IP cameras at resolutions of up to 6 MP. To maximize storage economy, the device uses H.265 Pro+/H.265 Pro/H.265 video compression. Capabilities for video encoding include resolutions up to 3K/5M Lite at 12 frames per second. The system has a 4K HDMI output in addition to a VGA output, and it can handle up to 96 Mbps of incoming bandwidth. It has dual-stream video and audio capabilities, one RCA input, and supports sixteen channels using coaxial cable for audio. With a video bitrate range of 32 Kbps to 6 Mbps, the Hikvision iDS-7116HQHI-M1/S 16-Channel DVR offers a wide range of video recording options, including different resolutions and frame rates. Every one of the 16 channels can be played back synchronously, and it has a strong network interface with 10M/100M/1000M Ethernet connections. The network capabilities of the Hikvision iDS-7116HQHI-M1/S 16-Channel AcuSense DVR include support for multiple protocols, including TCP/IP, PPPoE, DHCP, Hik-Connect, and ONVIF. This allows for remote connections of up to 128 channels at a maximum bandwidth of 128 Mbps. Two USB 2.0 ports and one SATA port with a maximum capacity of 10 TB per disk are examples of auxiliary interfaces. Additional capabilities include audio compression using G.711u, face photo search, and facial detection and capture. This Hikvision iDS-7116HQHI-M1/S 16-Channel AcuSense DVR is a complete system with a wide range of input compatibility, strong network support, and excellent video analytics that is intended for high-performance surveillance.
