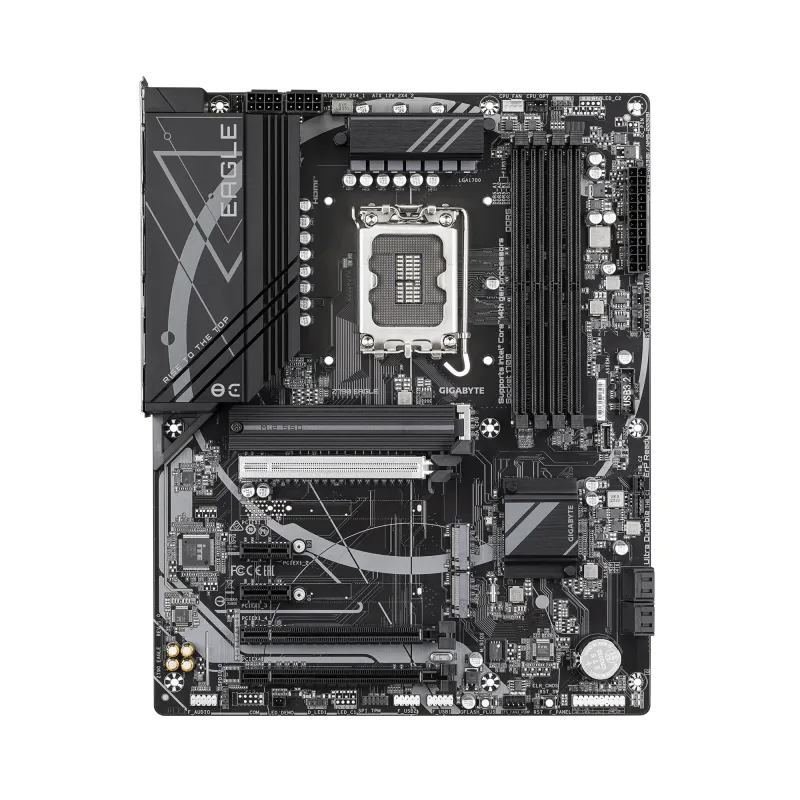

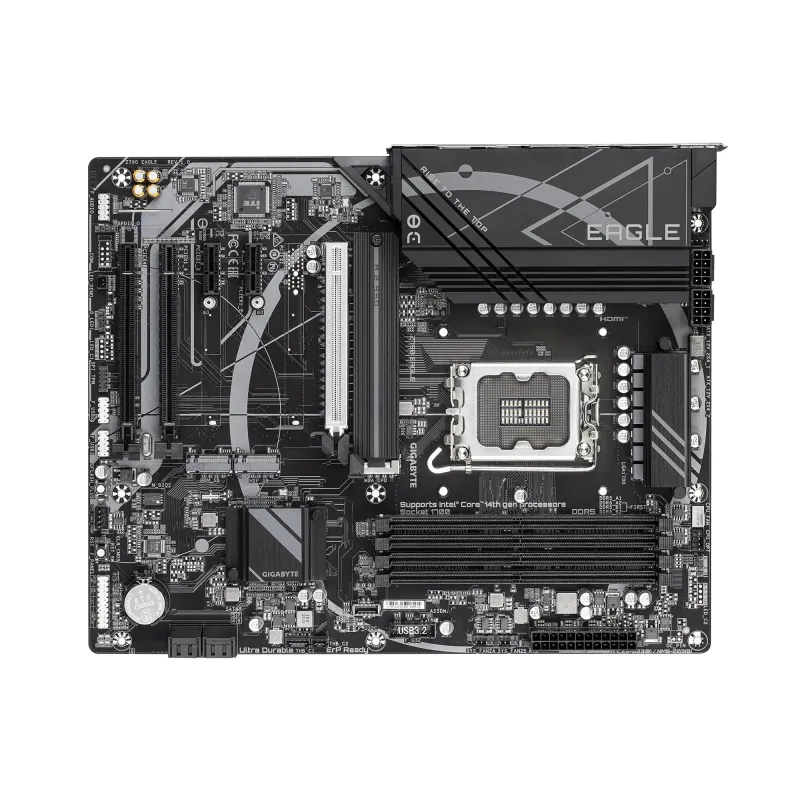

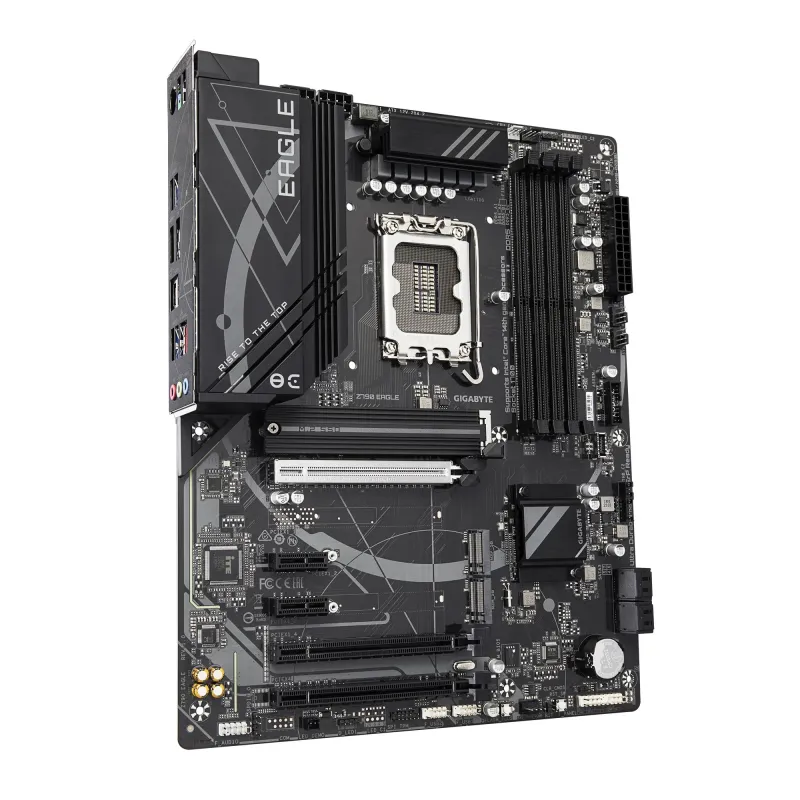

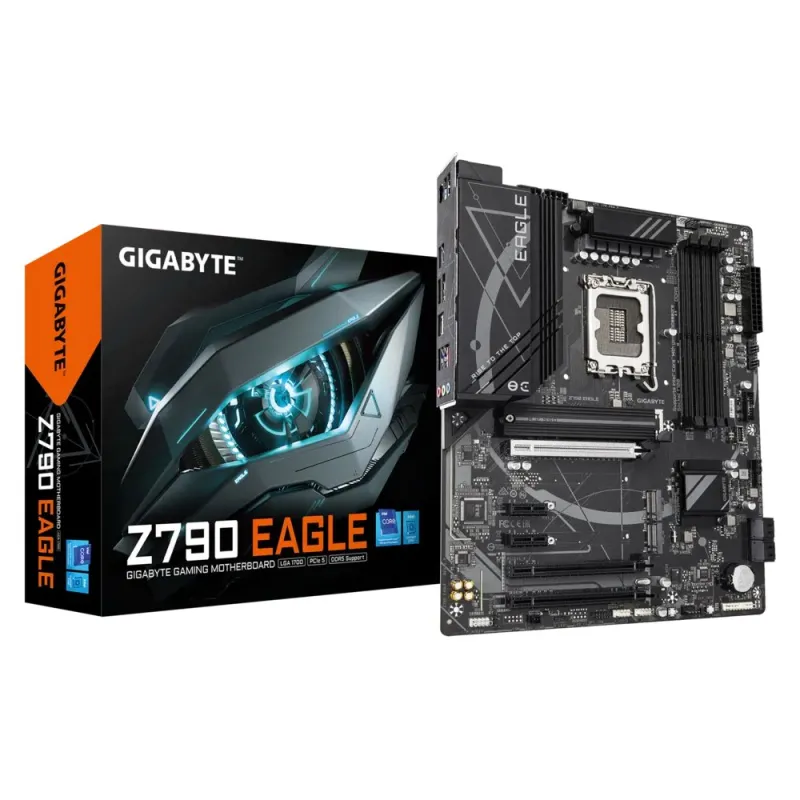

GIGABYTE Z790 EAGLE DDR5 ATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5GbE LAN chip
Specification
| General | |
| Brand | GIGABYTE |
| Model | Z790 EAGLE |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DDR5 DIMM sockets |
| Maximum Memory | Supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
| Supported Memory | 14th and 13th Generation Intel Core i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Basic Information | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel Z790 Express Chipset |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Expansion Slots | |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Ports & Connector | |
| Audio | 3 x audio jacks |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |

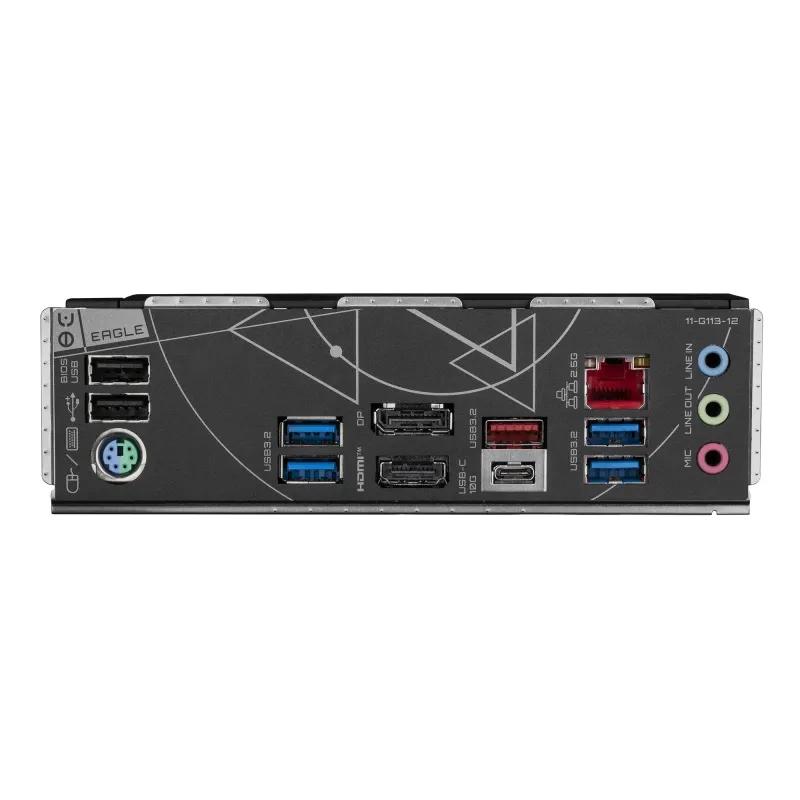

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| USB (s) | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers |
| Others | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Other Features | |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
Description
GIGABYTE Z790 EAGLE DDR5 ATX Motherboard
The GIGABYTE Z790 EAGLE DDR5 ATX Motherboard is built to support Intel 14th, 13th, and 12th Gen processors with the LGA 1700 socket, offering cutting-edge performance, superior power delivery, and unmatched expandability for both gamers and content creators. This motherboard features a Twin 12+1+1 Phases Digital VRM solution, ensuring stable, efficient power delivery for overclocking and heavy multitasking.
Equipped with dual-channel DDR5 memory support, it handles up to four DIMMs with XMP 3.0 compatibility, delivering high-speed memory performance for smooth system responsiveness and demanding workloads. For storage, the Z790 EAGLE boasts three PCIe 4.0 x4 M.2 slots, ideal for ultra-fast NVMe SSDs, ensuring lightning-quick boot times and application loading.
Cooling is handled by an advanced thermal design, including M.2 Thermal Guards and Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers, ensuring efficient heat management and quiet operation. The EZ-Latch PCIe 5.0 x16 slot simplifies GPU installation and upgrades, reducing the risk of damage during hardware changes.
Connectivity is robust, with a 2.5GbE LAN port for fast, reliable networking and a rear USB-C port with 10Gb/s speed, DisplayPort, and HDMI outputs for versatile multi-monitor setups. The Q-Flash Plus feature allows BIOS updates without a CPU or memory installed, streamlining system maintenance.
With its combination of performance, durability, and user-friendly features, the GIGABYTE Z790 EAGLE DDR5 is the ultimate ATX motherboard choice for high-end gaming PCs and professional workstations. Future-ready and feature-rich, it's designed to meet the needs of today’s most demanding users.
