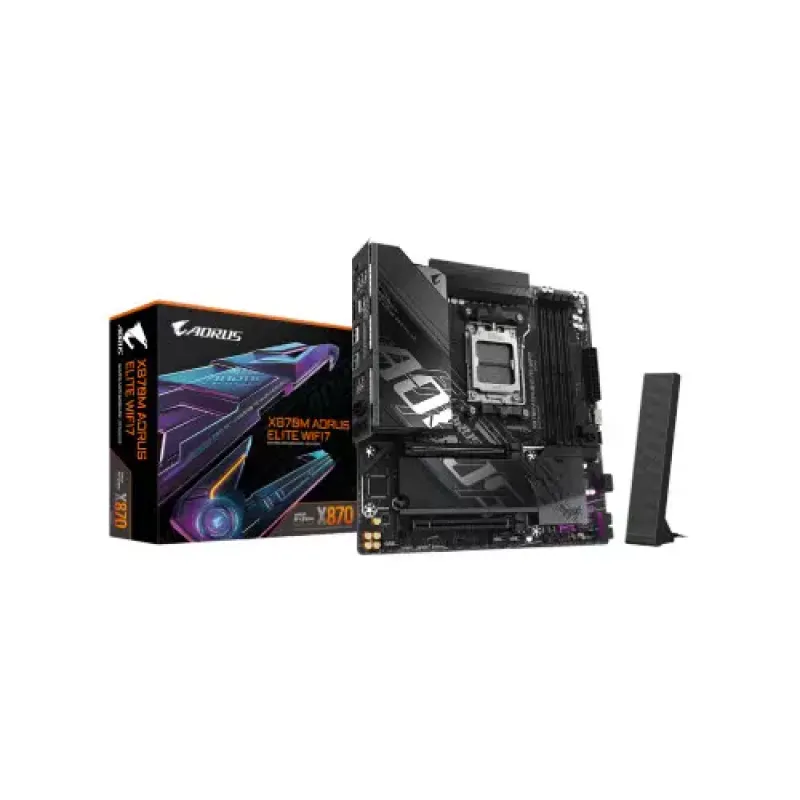

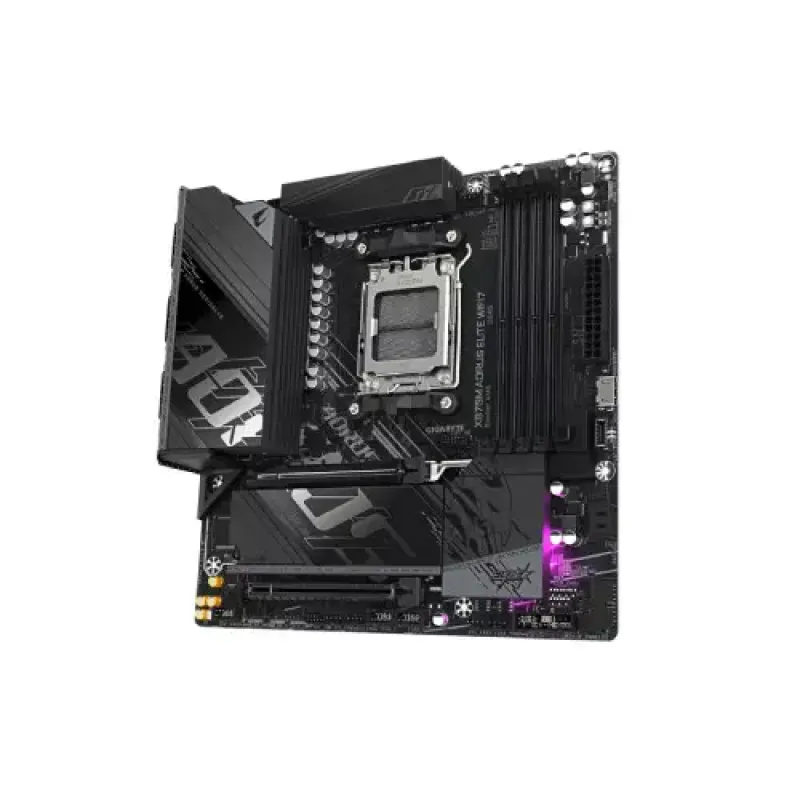

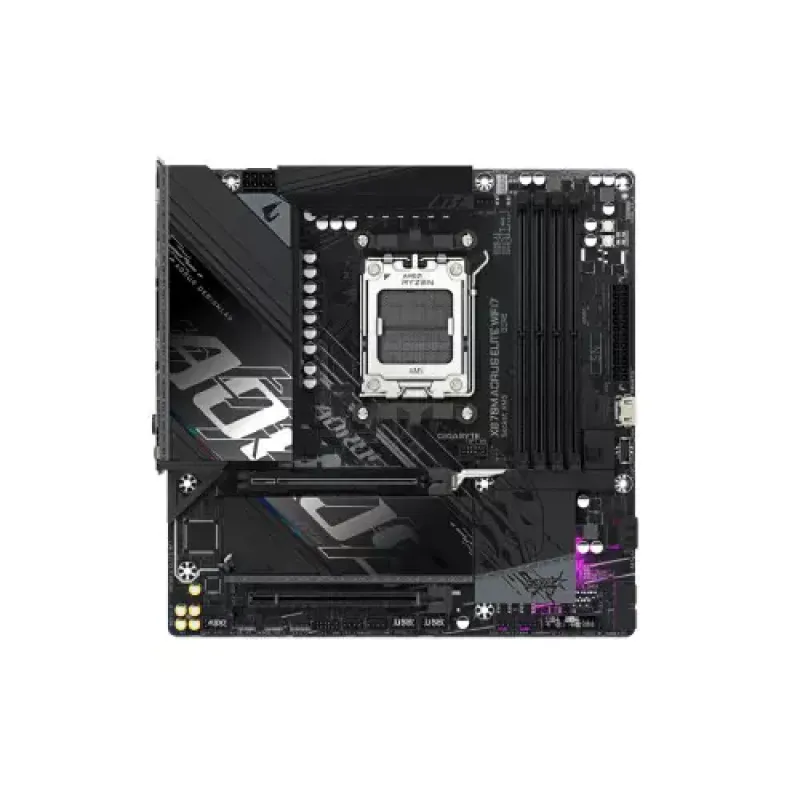

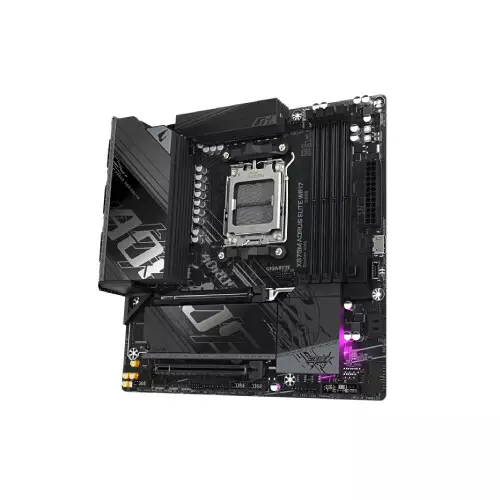

Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard

Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Save: 5,601৳
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
0 reviews • Write a review
  • Offer Price: 39,399৳
  • Regular Price: 45,000৳
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: X870M A ELITE WF7

Key Features

  • Chipset: AMD X870
  • CPU: AMD Socket AM5
  • Memory: Support for DDR5
  • Storage: 1 x M.2 connector
View More Info

Payment Options

39,399৳45,000৳

Cash Discount Price

Online / Cash Payment
—/month

Regular Price: —

Compare Bank EMI Options
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

General
Brand Gigabyte
Model X870M A ELITE WF7
Input Devices

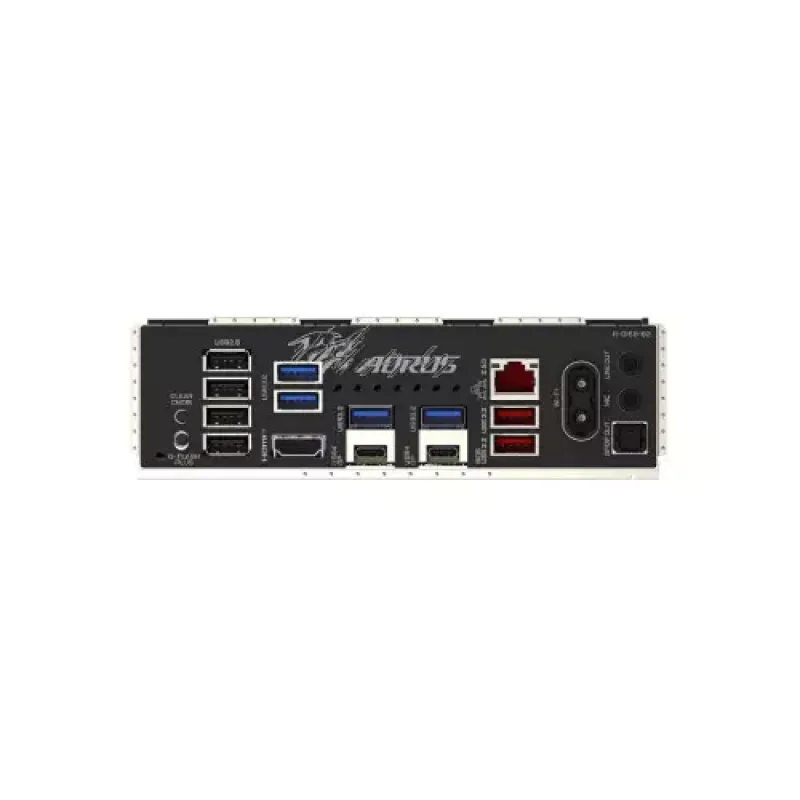

External I/O Ports 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x HDMI port 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB4 USB Type-C ports (DisplayPort*) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Special Features
Software H/W Monitoring: Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Bundled Software: Norton Internet Security (OEM version) iTE I/O Controller Chip
Memory
Memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Graphics
Graphics ntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Software
Operating System Support for Windows 11 64-bit
Basic Information
Audio Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD X870
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
OS Support for Windows 11 64-bit
Supported CPU AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
Network & Connectivity
Bluetooth - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
WiFi Realtek Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Ports & Connector
HDMI 1 x HDMI port
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB (s) CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panel CPU+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers
Other Features
Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support Smart Backup
Warranty Information
Warranty 3-Years

Description

Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard


The Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard is engineered for gamers, power users, and professionals who demand performance, efficiency, and cutting-edge features in a compact Micro ATX form factor. Built on the advanced AMD X870 chipset, this board supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, delivering outstanding processing power and future-ready compatibility. Memory performance reaches new heights with support for DDR5 modules up to 8200(O.C.), dual-channel architecture, and up to 256GB capacity, ensuring superior multitasking and lightning-fast data access. Compatibility with both AMD EXPO and Intel XMP memory profiles enables seamless overclocking, making it an ideal choice for performance enthusiasts. On the storage side, the motherboard provides versatile options with four M.2 slots (including PCIe 5.0 x4 support on Ryzen 9000/7000 CPUs), PCIe 4.0 lanes, and four SATA 6Gb/s ports, along with support for RAID 0/1/5/10 configurations, giving users flexibility and reliability in building high-speed storage arrays. Graphics support is impressive with PCIe 5.0 x16 slots for next-gen GPUs, along with integrated Radeon Graphics providing multiple display outputs, including dual USB4 Type-C ports with DisplayPort 1.4 support (3840x2160@240Hz) and HDMI 2.1 (4096x2160@60Hz). Networking is cutting-edge with Realtek 2.5GbE LAN and Wi-Fi 7 (802.11be) for blazing-fast connectivity, plus Bluetooth 5.4 for seamless device pairing. The premium Realtek ALC1220 audio codec delivers high-definition 7.1-channel surround sound with S/PDIF out, ensuring an immersive audio experience. Expansion and connectivity are abundant, with multiple USB ports, including USB4, USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, and USB 3.2 Gen 1, alongside legacy USB 2.0 options. Builder-friendly features like Q-Flash Plus, Smart Backup, onboard power/reset buttons, ARGB headers, RGB headers, fan/water cooling pump headers, and temperature sensors enhance usability and customization for high-performance PC builds. With its Micro ATX 24.4cm x 24.4cm design, it offers compact versatility without compromising on features. Backed by a 3-year brand warranty, the Gigabyte X870M AORUS ELITE WIFI 7 is an exceptional foundation for gamers and professionals who want next-generation performance, connectivity, and reliability in a space-saving motherboard.

Write a review

Please login or register to review

What is the price of Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard in Bangladesh?

The latest price of Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard in Bangladesh is 39,399৳. You can buy the Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard at the best price from our website or visit any of our showrooms.
