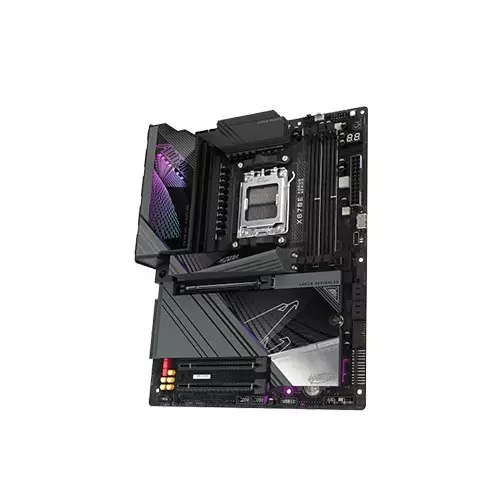

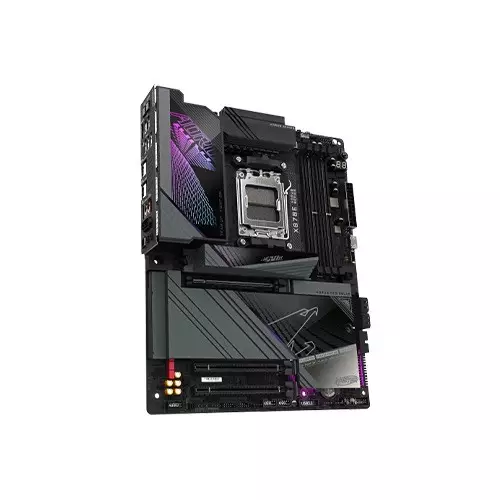

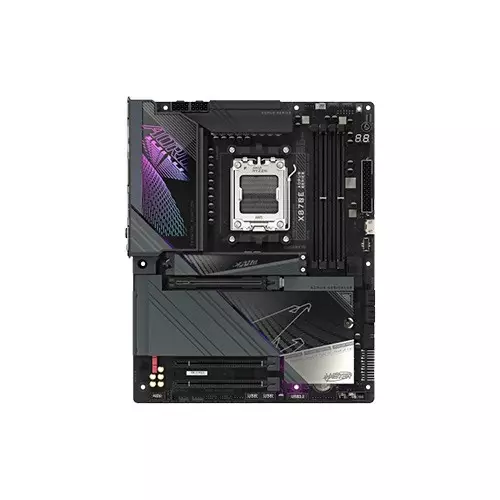

Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard

Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Save: 5,501৳
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard
0 reviews • Write a review
  • Offer Price: 69,999৳
  • Regular Price: 75,500৳
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: X870E Aorus Master

Key Features

  • Supported CPU - Ryzen 9000, 8000 & 7000 Series Processors
  • Supported RAM - 256GB DDR5
  • Graphics Output - 2 x USB4 (USB Type-C), 1 x HDMI
  • Chipset - AMD X870E
View More Info

Payment Options

69,999৳75,500৳

Cash Discount Price

Online / Cash Payment
—/month

Regular Price: —

Compare Bank EMI Options
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

General
Brand Gigabyte
Model X870E Aorus Master
Memory
Memory Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Type DDR5
Slots 4 DIMMs
Maximum Memory Up to 256GB (64GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR
Basic Information
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD X870E
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Supported CPU AMD Socket AM5, support for : AMD Ryzen 9000, 8000 & 7000 Series Processors
Audio & Microphone
Audio 2 x audio jacks
External Features
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Ports & Connector
HDMI 1 x HDMI
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points (Note) Actual support may vary by CPU.
LAN Port (s) Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, br> supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
USB (s) CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 4 x USB 3.2 Gen 1 ports available through the internal USB headers - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Wireless Communication module Qualcomm Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Others
Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software
Physical Specification

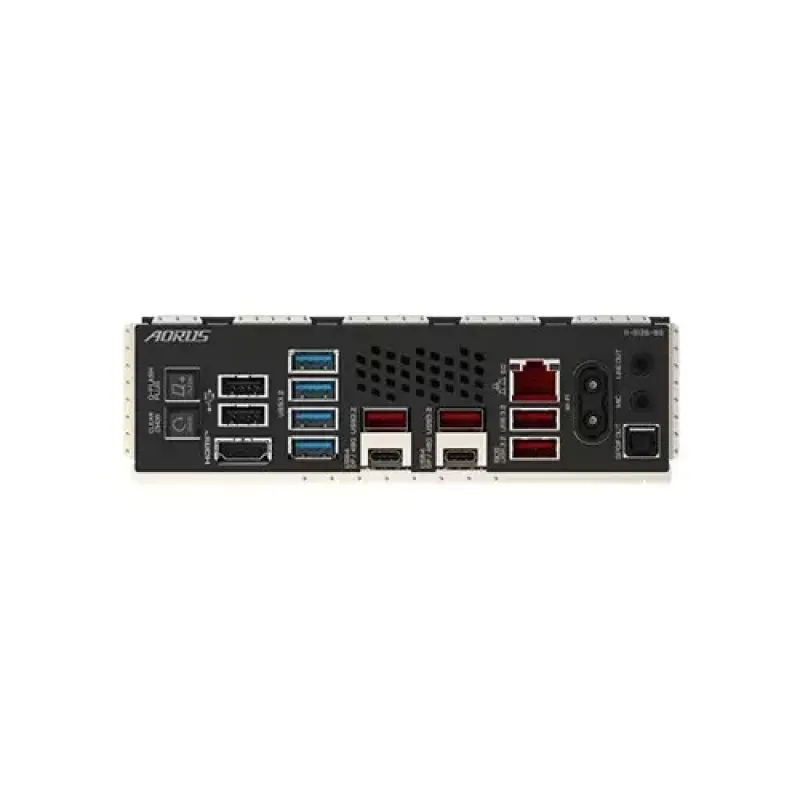

Connector Back Panel Connectors 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPorts (Note)) 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU. TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC
Other Features
Other Features RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty 3-Years

Description

Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard

The Gigabyte X870E AORUS MASTER DDR5 AM5 ATX Motherboard is built for enthusiasts and professionals who demand top-tier performance, reliability, and advanced connectivity. Powered by the AMD X870E chipset and AM5 socket, it supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors, ensuring exceptional speed and future-ready performance. Designed with a robust 16+2+2 digital VRM power phase delivering up to 110A per stage, it provides stable power delivery for overclocking and high-end workloads. The motherboard supports DDR5 memory with speeds up to 8600MHz (OC) and a total capacity of 256GB, enabling ultra-fast multitasking and superior data throughput. The X870E AORUS MASTER offers advanced expansion with PCIe 5.0 x16 slots and multiple M.2 PCIe 5.0/4.0 slots, ensuring lightning-fast storage and GPU compatibility. For connectivity, it features WiFi 7, 5GbE LAN, dual USB4 Type-C ports, and extensive rear I/O options for modern peripherals. Enhanced thermal design with VRM Thermal Armor, M.2 Thermal Guards, and Smart Fan 6 ensures efficient cooling even under extreme loads. With customizable RGB Fusion lighting, durable components, and user-friendly EZ-Latch installation, the Gigabyte X870E AORUS MASTER delivers unmatched performance for next-generation AM5 builds.

Write a review

Please login or register to review

What is the price of Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard in Bangladesh?

The latest price of Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard in Bangladesh is 69,999৳. You can buy the Gigabyte X870E Aorus Master DDR5 AM5 ATX Motherboard at the best price from our website or visit any of our showrooms.
