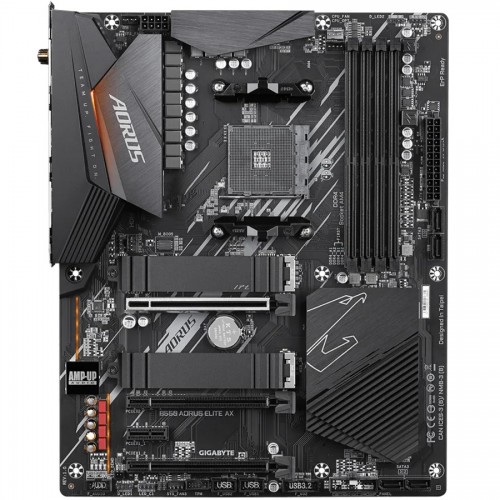

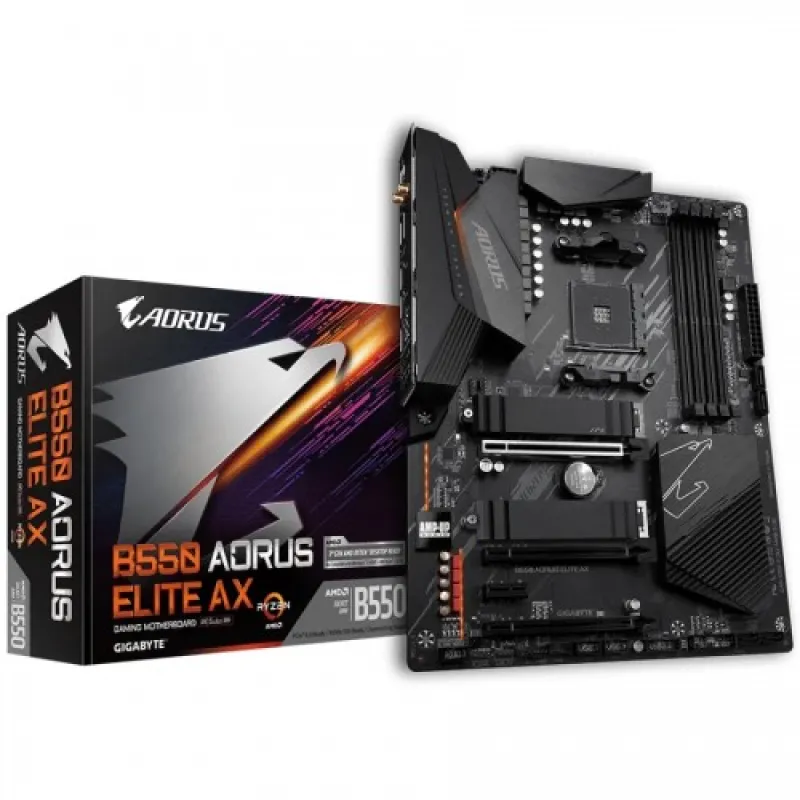

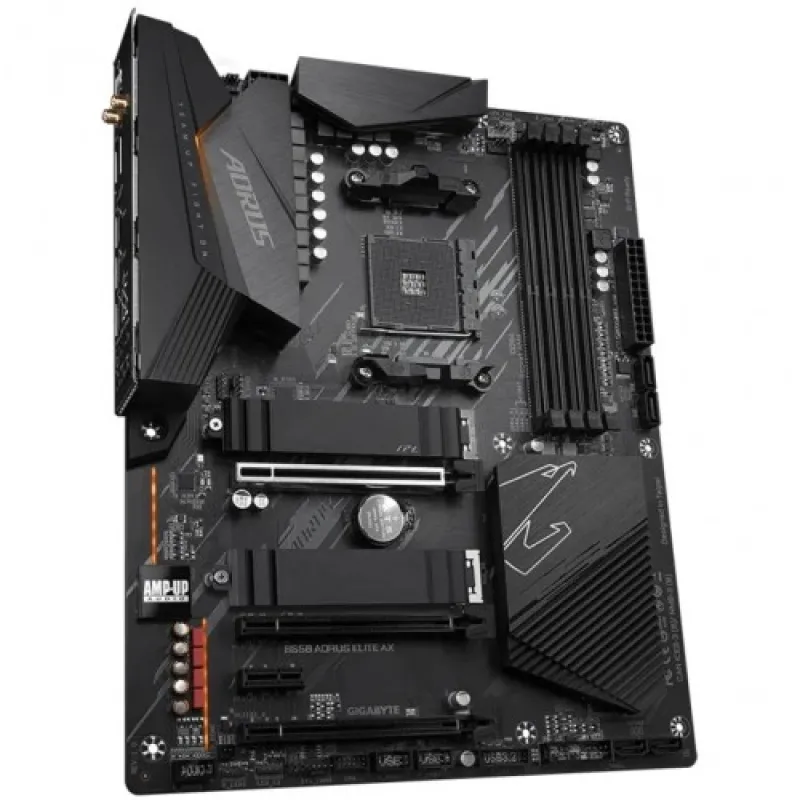

GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD

GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD
GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD
GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD
GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD
Save: 2,500৳
GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD
GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD
GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD
GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD
GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD
0 reviews • Write a review
  • Price: 25,000৳
  • Regular Price: 27,500৳
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B550 AORUS ELITE AX

Key Features

  • Model: B550 AORUS ELITE AX
  • Rear DisplayPort & HDMI Support
  • Pre-installed IO Shield
  • Ultra Durable™ PCIe 4.0 x16 Slot
View More Info

Payment Options

25,000৳27,500৳

Cash Discount Price

Online / Cash Payment
—/month

Regular Price: —

Compare Bank EMI Options
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

General
Brand GIGABYTE
Model B550 AORUS ELITE AX
Memory
Type DDR4
Slots 4 x DIMM slots
Maximum Memory support up to 128GB (32 GB single DIMM capacity)
Supported Memory AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen : Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Graphics Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory 16 GB
Basic Information
Audio Realtek ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD B550
Form Factor ATX Form Factor: 30.5cm x 24.4cm
Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Expansion Slots
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode - 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
Ports & Connector
Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
TPM (Trusted Platform Module) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

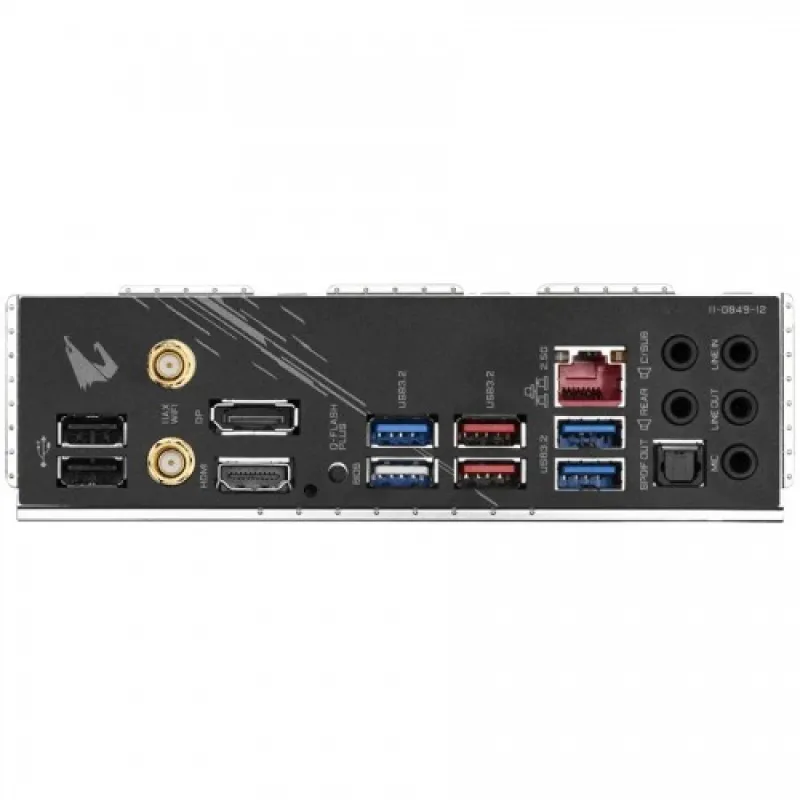

USB (s) CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Wireless Communication module Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Warranty Information
Warranty 03 years

Description

GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD

GIGABYTE B550 AORUS ELITE AX MOTHERBOARD Maximizes your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC into a performance-driven system. B550 AORUS ELITE AX motherboard uses a True 12+2 phases digital power design which includes a PWM controller, doublers, and DrMOS. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen processors.

Write a review

Please login or register to review

What is the price of GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD in Bangladesh?

The latest price of GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD in Bangladesh is 25,000৳. You can buy the GIGABYTE B550 AORUS ELITE AX AMD ATX MOTHERBOARD at the best price from our website or visit any of our showrooms.
