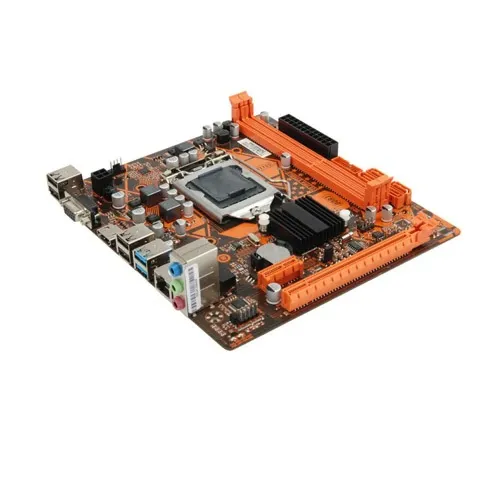

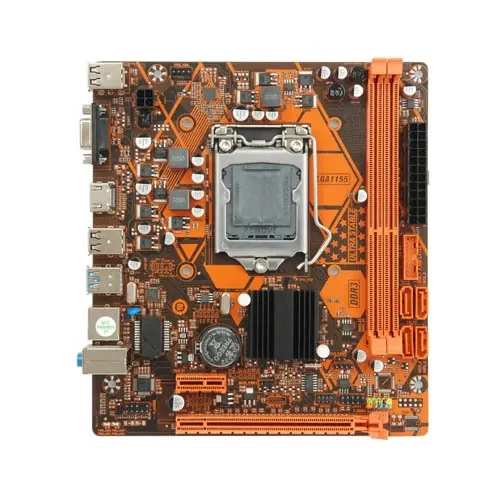

Esonic Intel H61FHL DDR3 Motherboard
Key Features
- Chipset: Intel H61
- Memory Type: DDR3 (2 DIMM slots)
- Storage: 4 x SATA 3Gb/s Ports
- USB Ports: USB 2.0
Specification
| General | |
| Brand | Esonic |
| Model | H61FHL |
| Memory | |
| Slots | 2 DIMM slots |
| Maximum Memory | Up to 16GB |
| Supported Memory | 1066 / 1333 / 1600MHz |
| Graphics | |
| Graphics | Integrated Intel HD Graphics Processor |
| Max Shared Memory | Dynamically allocated shared memory |
| Basic Information | |
| Audio | Realtek Chip, ALC 662 6-channel audio |
| BIOS | AMI UEFI BIOS |
| Chipset | Intel H61 Chipset |
| Form Factor | Micro-ATX (190 x 170mm) |
| Supported CPU | Supports Intel Socket 1155 for 2nd and 3rd Generation Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors; Supports Intel Turbo Boost Technology 2.0 |
| Expansion Slots | |
| PCI | Supported via available PCIe slots |
| External Features | |
| Expansion Slots | 1 x PCIe x16 slot, 1 x PCIe x1 slot |
| Graphics Card | |
| Memory Type | DDR3 |
| Ports & Connector | |

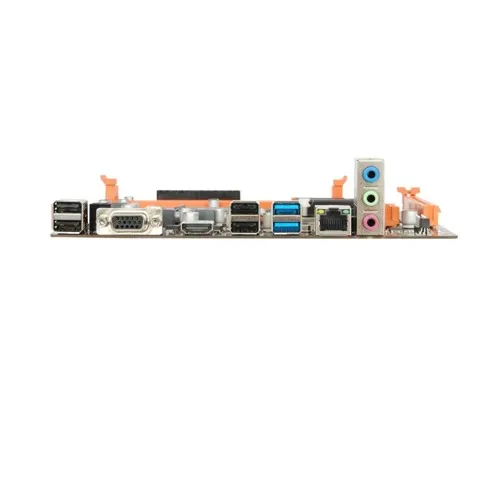

| D-Sub (s) | 1 x VGA Port |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | 1 x USB 19-pin header (supports 2 USB 2.0 ports), 1 x USB 2.0 header (supports 2 USB 2.0 ports), 4 x SATA 3Gb/s ports, CPU/SYS fan connectors, 24-pin ATX power connector, 4-pin 12V ATX power connector, front audio connector, internal speaker connector, front panel connector, and DEBUG connector |
| LAN Port (s) | Realtek Chip, 1 x Fast Ethernet LAN Port (100M/Optional 1000M) |
| Supported Storage | 4 x SATA 3Gb/s Ports |
| USB (s) | 10 x USB 2.0 Ports (6 on back panel, 4 internal via headers) |
| Other Features | |
| Special Features | Intel Turbo Boost Technology 2.0 support, multi-display outputs (HDMI/VGA), compact space-saving design |
| Warranty Information | |
| Manufacturing Warranty | 01 Year Warranty |
Description
The Esonic Intel H61FHL DDR3 Motherboard is an exceptional choice for home computing, office setups, and entry-level workstations. Available now at an unbeatable price of 2,800৳ (down from its regular price of 3,350৳), this motherboard delivers dependable performance without breaking the bank.
Built around the stable Intel H61 chipset, this motherboard provides robust support for Intel Socket 1155 processors, including 2nd and 3rd Generation Core i7, Core i5, Core i3, Pentium, and Celeron processors. It also features built-in Intel Turbo Boost Technology 2.0, ensuring your CPU dynamically scales its clock speed to handle multitasking and heavy workloads seamlessly.
For memory and storage, the board includes 2 DIMM slots supporting DDR3 memory up to 16GB at speeds of 1066/1333/1600MHz. Storage expansion is straightforward with 4 SATA 3Gb/s ports for reliable hard drive and SSD connectivity. Graphics and display flexibility are covered by integrated Intel HD Graphics with convenient VGA and HDMI ports, while expansion slots—including 1 PCIe x16 slot and 1 PCIe x1 slot—allow for easy hardware upgrades like dedicated graphics cards.
Designed with a compact form factor (190 x 170mm), this Esonic motherboard fits effortlessly into most standard PC cases. It also comes equipped with Realtek 6-channel audio for clear sound quality and reliable Fast Ethernet LAN connectivity. With a total of 10 USB 2.0 ports (6 on the back panel and 4 internal), connecting your daily peripherals is simple and clutter-free.
Backed by a 1-year warranty, the Esonic Intel H61FHL motherboard stands out as a high-value, cost-effective solution for anyone looking to assemble a durable and efficient desktop system. Upgrade your PC building inventory today with this dependable component!
