BIOSTAR Z590MHP 11TH/10TH GEN MICRO ATX MOTHERBOARD

BIOSTAR Z590MHP 11TH/10TH GEN MICRO ATX MOTHERBOARD

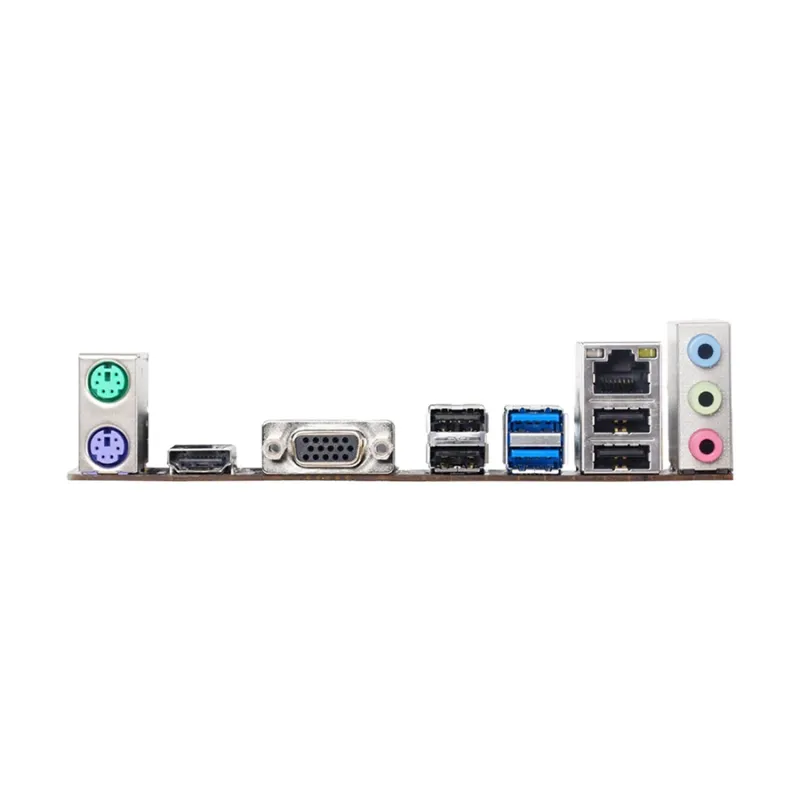

The BIOSTAR Z590MHP is a Micro ATX Motherboard designed for 10th and 11th Gen Intel Core, Pentium, and Celeron processors. It features an Intel Z590 chipset and supports Dual Channel DDR4 memory up to 4000(OC) with a maximum capacity of 64 GB. The motherboard has integrated video support by the CPU model, DX12, and HDCP. It offers ample storage options with 4 SATA III connectors (6Gb/s), supporting AHCI, RAID 0, 1, 5, 10, and Intel Rapid Storage Technology. Additionally, it has an M.2 (M Key) socket that supports M.2 Type 2242/ 2260/ 2280 SSD modules, and both PCIe 3.0 x4 (32Gb/s) and SATA III (6Gb/s) SSDs. The motherboard features an Intel I219V LAN with 10/ 100/ 1000 Mb/s auto-negotiation and Half / Full duplex capability. The audio codec is a Realtek ALC897, providing 7.1 Channels, High Definition Audio. The motherboard has multiple USB ports, including 4 USB 3.2 (Gen1) ports and 6 USB 2.0 ports. It also has 2 PCIe 3.0 x1 slots and 1 PCIe 3.0/ 4.0 x16 slot. The rear I/O includes PS/2 Keyboard and Mouse ports, HDMI and VGA ports, USB ports, a LAN port, and audio jacks. The motherboard also has several internal I/O connectors, including SATA III connectors, USB headers, power connectors, fan connectors, front panel and audio headers, a clear CMOS header, and a COM port header. The motherboard supports Windows 10 (64bit) and 11(64bit), and comes bundled with BullGuard software. Accessories include 2 SATA cables, an I/O shield, a DVD driver, and a quick guide.
