BIOSTAR H310MHP 8TH AND 9TH GEN MICRO ATX INTEL MOTHERBOARD
Key Features
- Chipset: Intel H310
- MEMORY: 2x DDR4 DIMM
- STORAGE: 4 x SATA III
- AUDIO CODEC: ALC887
Specification
| General | |
| Brand | BIOSTAR |
| Model | H310MHP |
| Input Devices | |

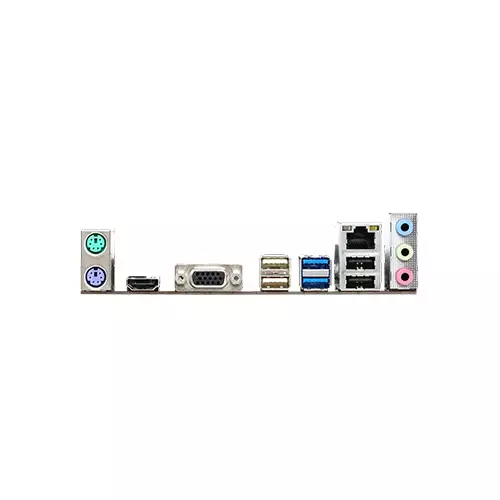

| External I/O Ports | 1x PS/2 Mouse Port 1x PS/2 Keyboard Port 1x HDMI Port 1x VGA Port 1x LAN Port 4x USB 2.0 Port 2x USB 3.2(Gen1) Port 3x Audio Jack |
| Memory | |
| Slots | 2x PCIe 2.0 x1 Slot 1x PCIe 3.0 x16 Slot |
| Basic Information | |
| Audio | ALC887 7.1 Channels, High Definition Audio Support HD Audio |
| Chipset | Intel H310 |
| Form Factor | Micro ATX Form Factor |
| LAN | RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module |
| Supported CPU | Socket 1151 for 9th / 8th Gen Intel® Core, Pentium and Celeron processors Maximum CPU TDP (Thermal Design Power): 95Watt |
| Graphics Card | By CPU model Supports DX12 Supports HDCP |
| Ports & Connector | |
| Internal I/O Ports | 4x SATA III Connector 1x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports) 1x 8-Pin Power Connector 1x 24-Pin Power Connector 1x CPU Fan Connector 1x System Fan Connector 1x Front Panel Header 1x Front Audio Header 1x Clear CMOS Header 1x COM Port Header |
| Supported Storage | 4 x SATA III Connectors (6Gb/s) |
| Ports & Slots | |
| USB 3 Port | 4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header) 6x USB 2.0 port (4 on rear I/Os and 2 via internal header) |
| Physical Specification | |
| Dimension | 226mm x 171mm ( W x L ) |
| Other Features | |
| Other Features | H/W MONITORING: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring OS SUPPORT: Supports Windows 7/ 10(64bit) / 11(64bit) ACCESSORIES: 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| Special Features | BIO-FLASHER |
| Warranty Information | |
| Warranty | 3 Year Warranty |
Description
BIOSTAR H310MHP 8th and 9th Gen Micro ATX Intel Motherboard
The BIOSTAR H310MHP Micro ATX Intel Motherboard is a reliable and cost-effective solution designed for essential computing, home office builds, and entry-level desktop systems. Powered by the Intel H310 single-chip architecture, this LGA 1151 socket mainboard supports 8th and 9th Generation Intel Core, Pentium, and Celeron processors with a maximum CPU TDP of up to 95 Watts.
Featuring two dual-channel DDR4 DIMM slots, the H310MHP accommodates up to 32 GB of DDR4 RAM with speed support for 1866 / 2133 / 2400 / 2666 MHz. Storage needs are handled by four SATA III 6Gb/s connectors, enabling reliable high-speed data transfers for standard SSDs and hard drives. Visual output is driven via CPU-integrated graphics with support for HDMI and VGA ports, supporting DirectX 12 and HDCP.
Expansion is versatile with one PCIe 3.0 x16 slot for dedicated graphics cards and two PCIe 2.0 x1 slots for additional expansion cards. Network performance is driven by a Realtek RTL8111H Gigabit LAN controller (10/100/1000 Mb/s), while audio is powered by the ALC887 7.1-channel High Definition Audio codec. Equipped with 100% solid capacitors, BIO-FLASHER utility, and bundled BullGuard software, the board ensures long-term system stability and smooth operations across Windows 7, 10, and 11 (64-bit) operating systems.
Buy BIOSTAR H310MHP 8th and 9th Gen Micro ATX Intel Motherboard in BD from Skyland BD
Get the original BIOSTAR H310MHP 8th and 9th Gen Micro ATX Intel Motherboard at the best price in Bangladesh from Skyland BD. Order online or visit our showroom to pick up yours today with an official 3-Year Warranty.
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding BIOSTAR H310MHP 8TH AND 9TH GEN MICRO ATX INTEL MOTHERBOARD
What is the price of BIOSTAR H310MHP 8TH AND 9TH GEN MICRO ATX INTEL MOTHERBOARD in Bangladesh? expand_more
The latest price of BIOSTAR H310MHP 8TH AND 9TH GEN MICRO ATX INTEL MOTHERBOARD in Bangladesh is 7,000৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is BIOSTAR H310MHP 8TH AND 9TH GEN MICRO ATX INTEL MOTHERBOARD currently in stock at Skyland? expand_more
Yes, BIOSTAR H310MHP 8TH AND 9TH GEN MICRO ATX INTEL MOTHERBOARD is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with BIOSTAR H310MHP 8TH AND 9TH GEN MICRO ATX INTEL MOTHERBOARD? expand_more
BIOSTAR H310MHP 8TH AND 9TH GEN MICRO ATX INTEL MOTHERBOARD comes with 3 Year warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
