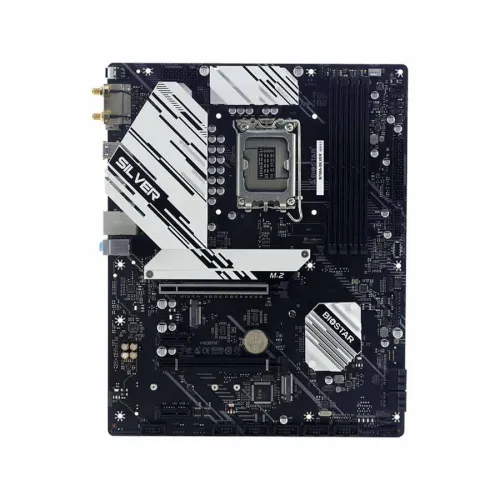

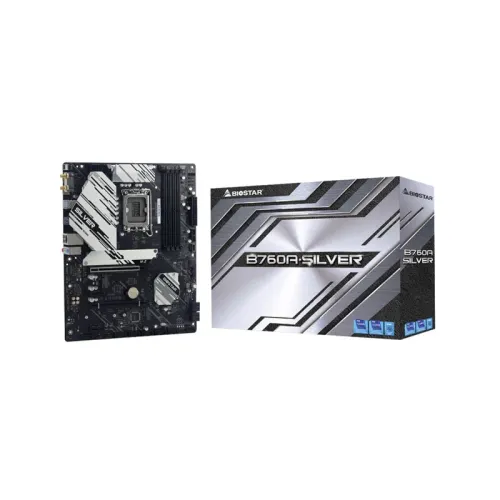

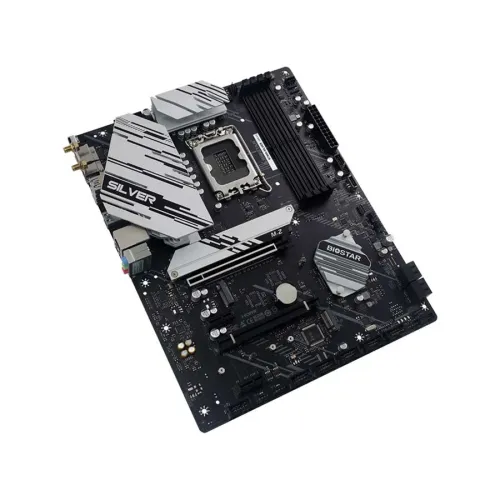

Biostar B760A-SILVER Intel 12th/13th/14th Gen DDR5 ATX Motherboard

Name: Biostar B760A-SILVER Intel 12th/13th/14th Gen DDR5 ATX Motherboard
Brand: Biostar
SKU: B760A-SILVER
Price: 20300.00 BDT
Availability: InStock

Status: In Stock

Model: B760A-SILVER

Brand: Biostar

Warranty: 3 Yers

Order on WhatsApp Messenger

Key Features

Chipset: Intel B760
Memory Type: DDR5
Supported CPU: Intel 12th / 13th / 14th
Supported Storage: 2 x M.2

View More Info

Payment Options

20,300৳ 23,000৳ Save 2,700৳ (12% OFF)

Instant Cash Discount Price

Online / Cash / Card Payment

Special Price: 20,300৳

View 27 Banks EMI Plans

Found this item cheaper elsewhere? Request Price Match & get bonus Star Points!

Specification

General
Brand	Biostar
Model	B760A-SILVER
Memory
Supported Memory	Supports Dual Channel DDR5 - 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 5200(OC)/ 5000(OC)/ 4800 4 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module Support Intel® Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list.
Basic Information
Audio	ALC1220 7.1 Channels, High Definition Audio, Hi-Fi
Chipset	Intel B760
Form Factor	ATX
Supported CPU	Support for 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel® Pentium processors/ Intel Celeron processors in the LGA1700 package Please refer to www.biostar.com.tw for CPU support list.
Ports & Connector
Internal I/O Ports	4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type C Header. 1 x 4-Pin Power Connector 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 4 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 1 x Thunderbolt Header 2 x LED Header (5V) 1 x LED Header (12V) * M.2 (E key) Wi-Fi card is not provided 2 x WIFI Antenna Port 1 x HDMI Port (HDMI2.1) 1 x DP Port (DP1.2) 1 x USB 3.2 (Gen2) Type-C Port 5 x USB 3.2 (Gen2) Port 2 x USB 2.0 port 1 x LAN port 3 x Audio Jack 1 x SMART BIOS UPDATE Button 1 x SMART BIOS USB Port
LAN Port (s)	Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
PCI Card Slot	INTEL 12th/13th/14th Processors 1 x PCIe 5.0 x16 Slot (x16 mode) INTEL B760 Chipset 1 x PCIe 4.0 x16 Slot (x4 mode) 2 x PCIe 3.0 x1 Slot
Supported Storage	Total supports 3 x M.2 socket and 4x SATA III (6Gb/s) ports Intel 12th/13th/14th Processors 1 x M.2 (M Key) Socket (M2M_CPU) Supports M.2 Type 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD Intel B760 Chipset 1 x M.2 (M Key) Socket (M2M_SB1): Supports M.2 Type 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD 1 x M.2 (M Key) Socket (M2_SB2): Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA lll (6Gb/s) SSD 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology * When using PCI-E module on M.2 Socket (M2M_SB1), the PCI-E slot (PCIEx16_2) will be disabled.
USB (s)	2 x USB 3.2 (Gen2) Type-C port (1 on rear I/O and 1 via internal header) 5 x USB 3.2 (Gen2) port (5 on rear I/Os) 2 x USB 3.2 (Gen1) port (2 via internal header) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal header)
Physical Specification
Accessories	4 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual
Dimension	30.5 cm x 24.4cm ( W x L )
Other Features
Other Features	INTEGRATED VIDEO: Supports DX12 Supports HDCP
Special Features	VIVID LED DJ BIO-FLASHER A.I FAN LED ROCK ZONE
Warranty Information
Warranty	3 Yers

Notice an incorrect specification or missing detail?

Description

The Biostar B760A-SILVER Intel 12th/13th/14th Gen DDR5 ATX Motherboard is a high-performance motherboard designed to support the latest Intel Core i9, i7, i5, i3, Pentium, and Celeron processors in the LGA1700 package. It features the Intel B760 chipset and supports Dual Channel DDR5 memory with speeds up to 6400+(OC) and a maximum capacity of 192 GB. The motherboard offers extensive storage options with three M.2 sockets and four SATA III ports, supporting various configurations including RAID 0, 1, 5, 10, and Intel Rapid Storage Technology. It also includes integrated video support for DirectX 12 and HDCP, a Realtek RTL8125B LAN for high-speed networking, and an ALC1220 audio codec for 7.1-channel high-definition sound. Additionally, the motherboard is equipped with numerous USB ports, including USB 3.2 Gen2 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, and USB 2.0, along with PCIe 5.0 and PCIe 4.0 expansion slots.
