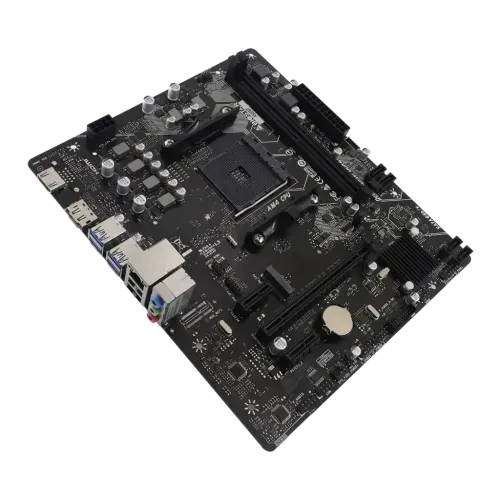

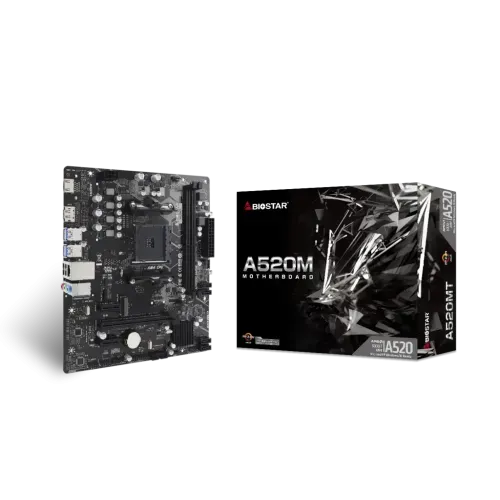

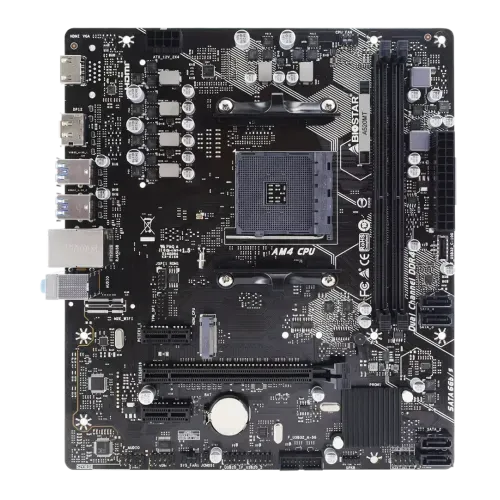

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard

Name: BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard
Brand: Biostar
SKU: A520MT
Price: 6700.00 BDT
Availability: InStock

Status: In Stock

Model: A520MT

Brand: Biostar

Warranty: 3 Years

Order on WhatsApp Messenger

Key Features

Supported CPU: Socket AM4 supports AMD Ryzen 3rd Gen (Matisse/ Renoir) & Ryzen 4th Gen (Vermeer/ Cezanne)
Supported RAM: 2 x DIMM, DDR4
Graphics Output: 1 x HDMI, 1 x DP Port
Features: 1 x M.2 Slot, Realtek Gigabit LAN

View More Info

Payment Options

6,700৳ 7,850৳ Save 1,150৳ (15% OFF)

Instant Cash Discount Price

Online / Cash / Card Payment

Special Price: 6,700৳

View 27 Banks EMI Plans

Found this item cheaper elsewhere? Request Price Match & get bonus Star Points!

Specification

General
Brand	BIOSTAR
Model	A520MT
Memory
Type	DDR4
Slots	2 x DIMM
Maximum Memory	Up to 64GB
Supported Memory	4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
Graphics
Graphics	By CPU model Supports DX12 Supports HDCP
Basic Information
Audio	ALC897 7.1 Channels, High Definition Audio, Hi-Fi (Front)
Chipset	AMD A520
Form Factor	Micro ATX Form Factor Dimension: 23.5cm x 20.8cm ( W x L )
Supported CPU	Socket AM4 supports AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Cezanne) processors Support for future AMD Ryzen processors with BIOS update
Expansion Slots
M.2 Socket	Supports M.2 Type 2242/ 2260/ 2280 SSD module
PCI	AMD Ryzen 5000/3000 Series Processors 1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode) or AMD Ryzen 5000 G/4000 G Series Processors 1 x PCIe 3.0 x16 Slot(x16 or x8/x4/x4 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Slot
Ports & Connector

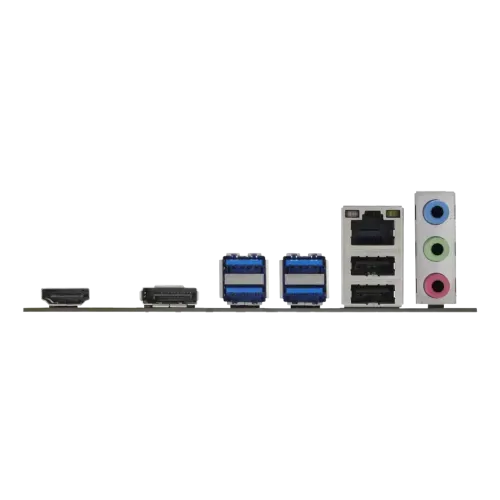

HDMI	1 x HDMI Port
Internal I/O Ports	4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type-C Header 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header
LAN Port (s)	Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supported Storage	Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports AMD Ryzen 5000/5000 G/4000 G/3000 Processors 1 x M.2 (M Key) Socket (M2M_CPU): Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD AMD A520 Chipset 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
USB (s)	4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports
Others
Bundled Software	BullGuard
Warranty Information
Manufacturing Warranty	3 Years Warranty

Notice an incorrect specification or missing detail?

Description

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard

The BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard is a compact, feature-packed mainboard designed to deliver exceptional performance and stability for modern desktop builds. Built on the AMD A520 single-chip architecture, this board natively supports 3rd Gen (Matisse / Renoir) and 4th Gen (Vermeer / Cezanne) AMD Ryzen processors via the AM4 socket, offering a seamless computing experience for home, office, and entry-level gaming systems.

Equipped with two dual-channel DDR4 DIMM slots, the A520MT supports up to 64GB of memory with overclocked speeds reaching up to 4933+ MHz (OC). High-speed storage capability is provided by a dedicated PCIe 3.0 M.2 slot (supporting up to 32Gb/s NVMe and SATA III SSDs), complemented by four SATA III 6Gb/s ports supporting AHCI and RAID 0, 1, and 10 array configurations.

For display and peripheral connectivity, the motherboard offers HDMI (4K resolution support) and DisplayPort video outputs for processors with integrated graphics. Modern I/O features include a Front USB 3.2 Gen2 Type-C header, multiple USB 3.2 Gen1 ports, Realtek RTL8111H Gigabit LAN, and a Realtek ALC897 7.1-channel HD Audio codec with Hi-Fi front panel output. Expansion is flexible with one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots.

Buy BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard in BD from Skyland BD

Get the original BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard at the best price in Bangladesh from Skyland BD. Order online or visit our showroom to pick up yours today with an official 3-Year Warranty.

Reviews (0)

Get specific details about this product from customers who own it.

What is the price of BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard in Bangladesh?

The latest price of BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard in Bangladesh is 6,700৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.

Is BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard currently in stock at Skyland?

Yes, BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.

What warranty comes with BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard?

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard comes with 3 Years warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
