Biostar A520MHP V 6.0 Socket Am4 DDR4 Motherboard

Name: Biostar A520MHP V 6.0 Socket Am4 DDR4 Motherboard
Brand: Biostar
SKU: A520MHP V 6.0
Price: 6699.00 BDT
Availability: InStock

Status: In Stock

Model: A520MHP V 6.0

Brand: Biostar

Warranty: 3 years

Order on WhatsApp Messenger

Key Features

Chipset: AMD A520
CPU SUPPORT: Support AMD Ryzen 5000/5000G/4000G/3000/3000G series
MEMORY: Supports Dual Channel DDR4
DIMENSION: Micro ATX

View More Info

Payment Options

6,699৳ 7,500৳ Save 801৳ (11% OFF)

Instant Cash Discount Price

Online / Cash / Card Payment

Special Price: 6,699৳

View 27 Banks EMI Plans

Found this item cheaper elsewhere? Request Price Match & get bonus Star Points!

Specification

General
Brand	Biostar
Model	A520MHP V 6.0
Input Devices

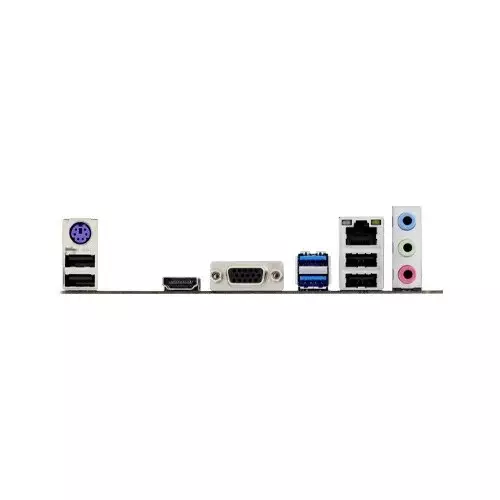

External I/O Ports	1 x PS/2 Keyboard/ Mouse; 1 x VGA Port; 1 x HDMI Port; 1 x LAN port; 2 x USB 3.2 (Gen1) Port; 4 x USB 2.0 Port; 3 x Audio Jack
Memory
Slots	AMD Ryzen 5000/3000 Processors; 1 x PCIe 3.0 x16 Slot (x16 or x4/x4/x4/x4 mode); AMD Ryzen 5000G/4000G/3000G Processors; 1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode); AMD A520 Chipset; 2 x PCIe 3.0 x1 Slot; * According to different CPUs will have different speeds. * Specifications vary by CPU types
Basic Information
Chipset	AMD A520
Form Factor	Micro ATX
Memory	4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133; 4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133;3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133; 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133; 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory; Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
Operating System	Supports Windows 10(64bit)/ 11(64bit); Biostar reserves the right to add or remove support for any OS with or without notice.
Supported CPU	Support AMD Ryzen 5000/5000G/4000G/3000/3000G series Processors; Support for future AMD Ryzen processors with BIOS update
Ports & Connector
Audio	Realtek ALC897; 7.1 Channels, High Definition Audio, Hi-Fi (Front)
Internal I/O Ports	4 x SATA III 6.0Gb/s Connector; 1 x USB 3.2 (Gen1) Header; (each header supports 2 USB 3.2 (Gen1) ports); 2 x USB 2.0 Header; (each header supports 2 USB 2.0 ports); 1 x 4-Pin Power Connector; 1 x 24-Pin Power Connector; 1 x CPU Fan Connector; 1 x System Fan Connector; 1 x Front Panel Header; 1 x Front Audio Header; 1 x Clear CMOS Header; 1 x COM Serial Header; 1 x Internal Stereo Speaker Header
LAN Port (s)	Realtek RTL8111H; 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supported Storage	Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports; AMD Ryzen 5000/5000G/4000G/3000/3000G Processors; 1 x M.2 (M Key) Socket: Supports M.2 Type 2260/ 2280 SSD module; Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD; Supports SATA III (6.0Gb/s) SSD; AMD A520 Chipset; 4 x SATA III Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10; * Specifications vary by CPU types
USB (s)	4 x USB 3.2 (Gen1) port; (2 on rear I/Os and 2 via internal headers); 8 x USB 2.0 port; (4 on rear I/Os and 4 via internal headers)
Physical Specification
Accessories	2 x SATA Cable; 1 x I/O Shield; 1 x DVD Driver; 1 x Quick Guide
Dimension	19.0 cm x 23.5 cm ( W x L )
Other Features
Special Features	INTEGRATED VIDEO: By CPU model; Supports DX12; Supports HDCP
Warranty Information
Warranty	3 years

Notice an incorrect specification or missing detail?

Description

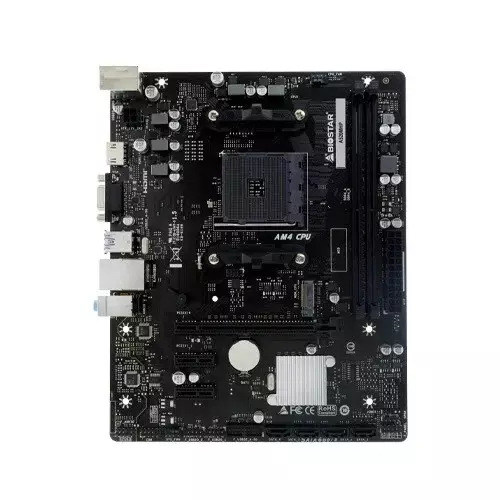

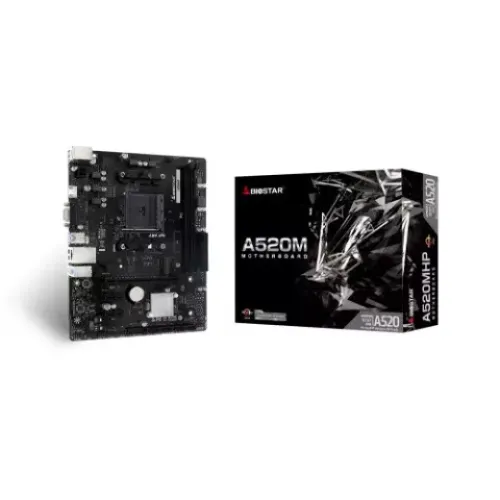

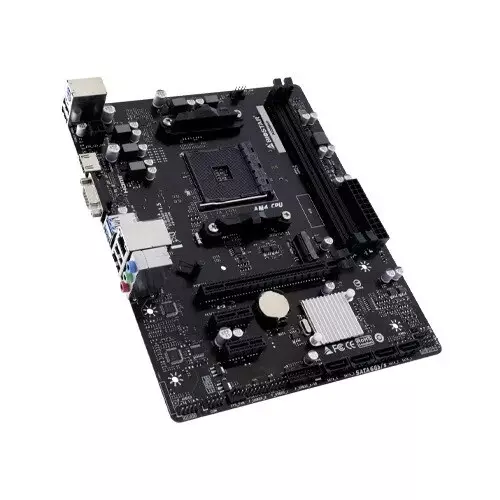

Biostar A520MHP V 6.0 Socket AM4 DDR4 Motherboard

The Biostar A520MHP V 6.0 Motherboard is a compact, cost-effective Micro ATX mainboard built on the AMD A520 chipset, offering exceptional value and stability for daily computing, office productivity, and entry-level gaming setups. Designed to support AMD Ryzen 5000, 5000G, 4000G, 3000, and 3000G series processors via the AM4 socket, this board features a 5-phase power delivery design to maintain consistent energy flow and steady performance across various workloads.

Memory expansion is handled by two dual-channel DDR4 DIMM slots supporting up to 64GB of RAM with overclocked speeds reaching up to 4400+ MHz (OC). For storage flexibility, the board includes one M.2 slot (supporting both PCIe 3.0 x4 NVMe and SATA III SSDs) alongside four SATA III 6Gb/s ports with RAID 0, 1, and 10 array support.

Expansion options feature one PCIe 3.0 x16 slot for dedicated graphics cards and two PCIe 3.0 x1 slots for additional expansion cards. Visual output is supported via HDMI (4K supported) and VGA ports for processors with integrated Radeon graphics. Reliable networking and immersive sound are delivered by a Realtek RTL8111H Gigabit LAN controller and a Realtek ALC897 7.1-channel HD Audio codec with Hi-Fi front-panel support.

Buy Biostar A520MHP V 6.0 AM4 DDR4 Motherboard in BD from Skyland BD

Get the original Biostar A520MHP V 6.0 Socket AM4 DDR4 Motherboard at the best price in Bangladesh from Skyland BD. Order online or visit our showroom to pick up yours today with an official 3-Year Warranty.

Reviews (0)

Get specific details about this product from customers who own it.

What is the price of Biostar A520MHP V 6.0 Socket Am4 DDR4 Motherboard in Bangladesh?

The latest price of Biostar A520MHP V 6.0 Socket Am4 DDR4 Motherboard in Bangladesh is 6,699৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.

Is Biostar A520MHP V 6.0 Socket Am4 DDR4 Motherboard currently in stock at Skyland?

Yes, Biostar A520MHP V 6.0 Socket Am4 DDR4 Motherboard is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.

What warranty comes with Biostar A520MHP V 6.0 Socket Am4 DDR4 Motherboard?

Biostar A520MHP V 6.0 Socket Am4 DDR4 Motherboard comes with 3 years warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
